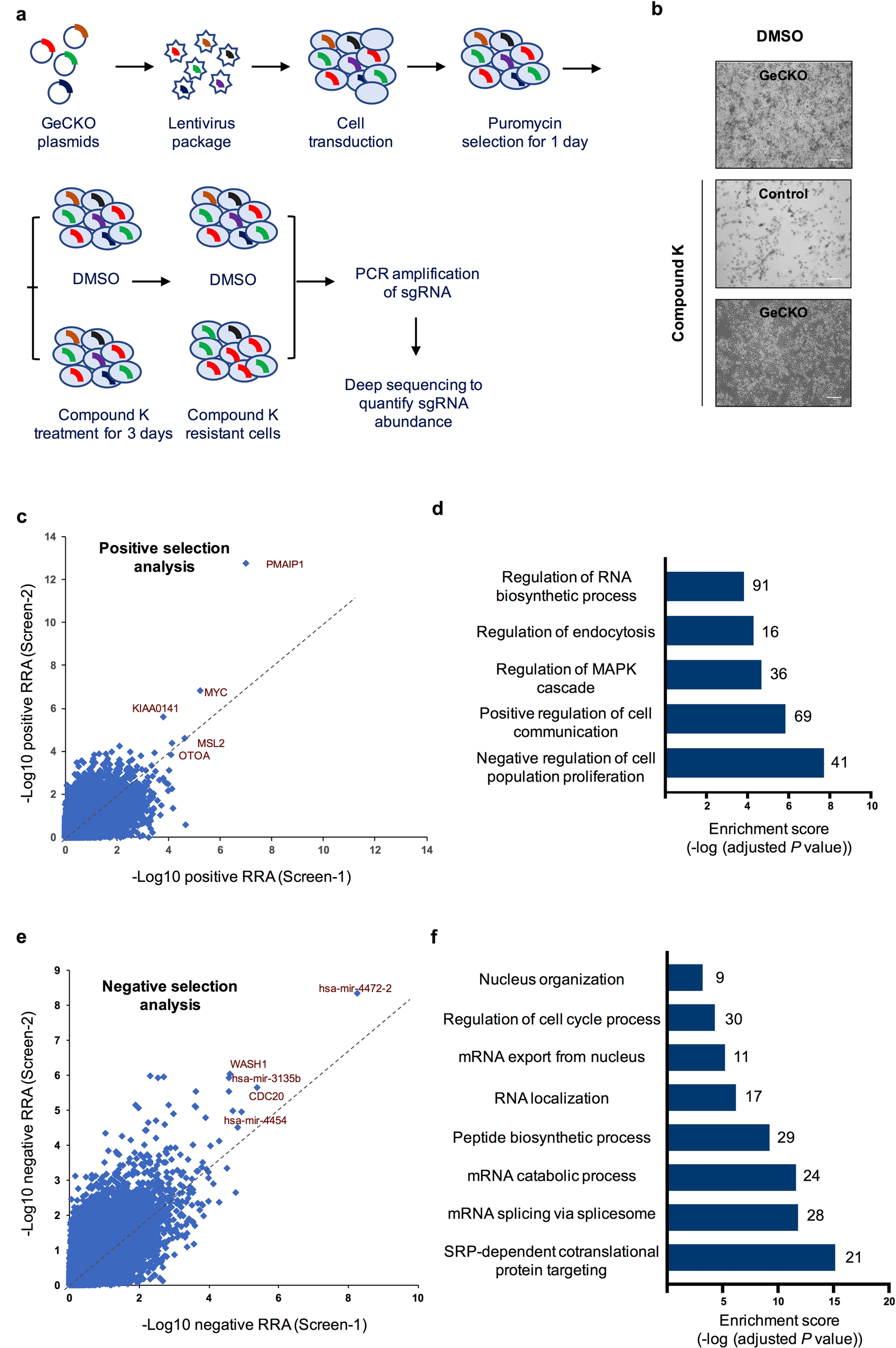

Fig. 2: High-throughput screenings identify CK-resistant and CK-sensitive genes.
From: Genome-scale CRISPR screening for potential targets of ginsenoside compound K
a Schematic view of the experimental setup in the high-throughput genetic screenings. b Representative images of cell state at each treatment condition as indicated. Scale bar = 150 µm. c Scatterplot showing significant genes in positive selection analysis. d Gene Oncology and pathway analysis of positive selection genes. e Scatterplot showing significant genes in negative selection analysis. f Gene Oncology and pathway analysis of negative selection genes. RRA, Robust Ranking Aggregation score generated in the MAGeCK algorithm.
