Fig. 6: PDL1 blockage does not affect the expression of GC-resident B cell markers. | Cell Death & Disease

Fig. 6: PDL1 blockage does not affect the expression of GC-resident B cell markers.

From: PDL1 blockage increases fetal resorption and Tfr cells but does not affect Tfh/Tfr ratio and B-cell maturation during allogeneic pregnancy

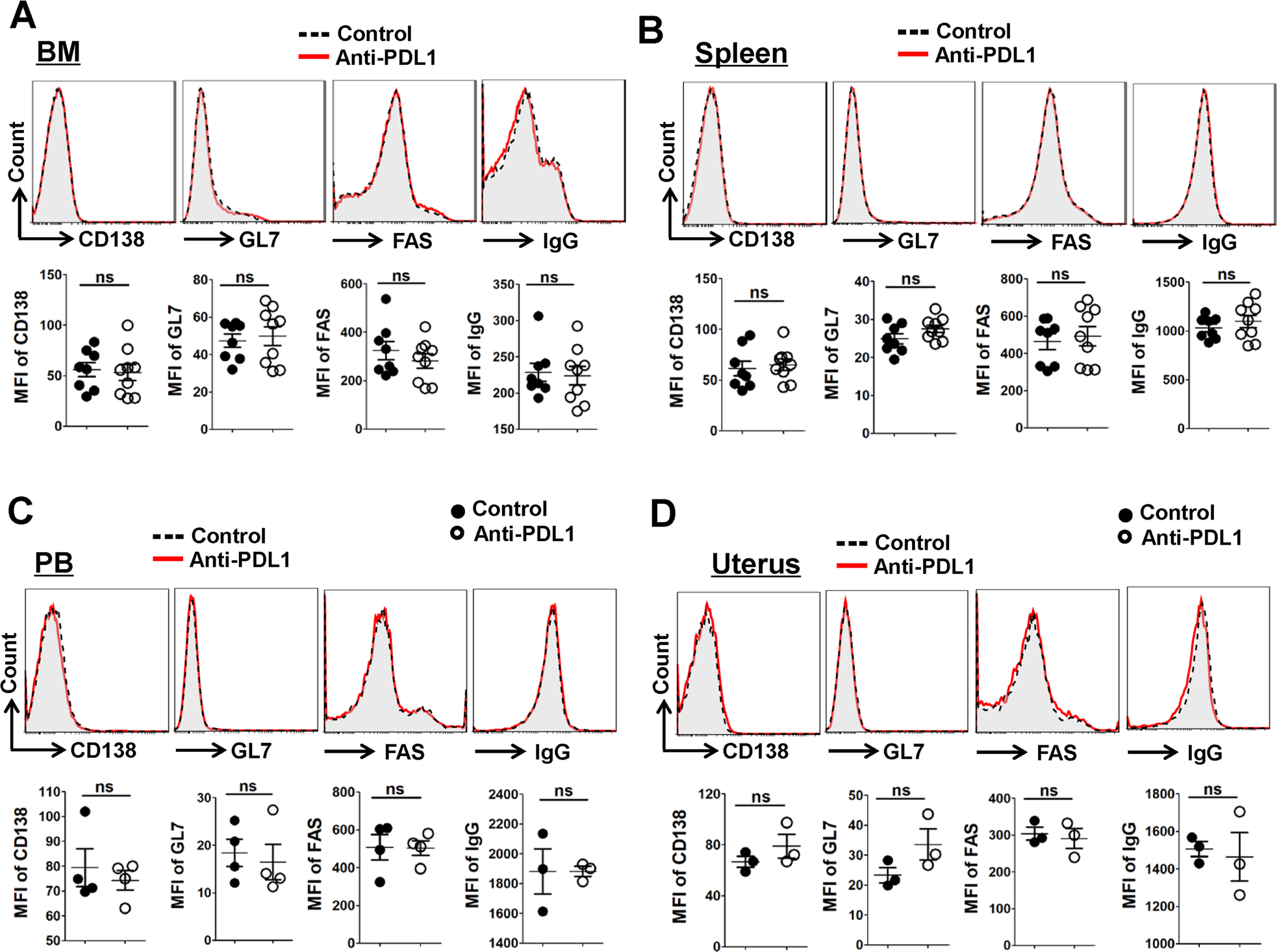

Fig. 6: PDL1 blockage does not affect the expression of GC-resident B cell markers.

a–d Representative flow cytometric histograms and cumulative data illustrating the molecular expression of CD138, GL7, FAS, IgG on CD19+ B cells derived from the BM (a), spleen (b), PB (c), and uterus (d) of the control and PDL1-blocked mice. Cells are gated in B cells and each symbol reflects the data from a single mouse (n ≥ 3 mice per group). Cells are gated in CD19+ B cells. Geometric MFI values were calculated using FlowJo 7.6.1 software and the data were assessed statistically using Mann–Whitney U test. MFI mean fluorescent intensity; BM bone marrow; PB peripheral blood; ns not significant.
