Fig. 2: The regulation effect of CHPF on cell migration and EMT/apoptosis related proteins. | Cell Death & Disease

Fig. 2: The regulation effect of CHPF on cell migration and EMT/apoptosis related proteins.

From: Chondroitin polymerizing factor (CHPF) promotes development of malignant melanoma through regulation of CDK1

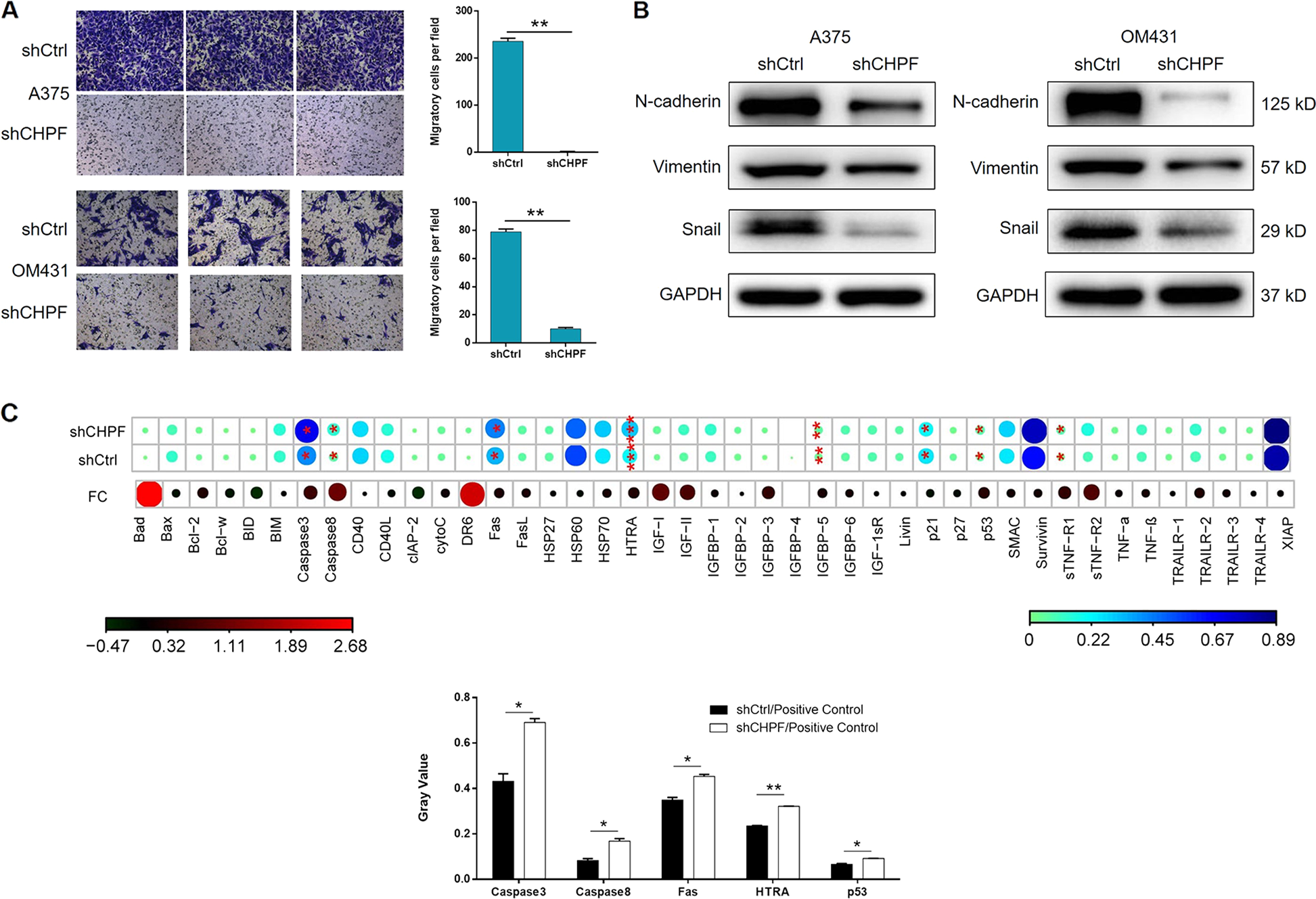

Fig. 2

a Transwell assay was performed to compare the cell migration ability of MM cells treated with shCtrl or shCHPF. b The expression of EMT biomarkers including N-cadherin, Snail and Vimentin were detected by Western blot analysis in MM cells treated with shCtrl or shCHPF. c Human apoptosis antibody array was utilized to illustrate the regulation of the expression of apoptosis related proteins by CHPF knockdown. The data were expressed as mean ± SD (n ≥ 3), *P < 0.05, **P < 0.01, ***P < 0.001.
