Fig. 3: Effects of MGO on HUVEC and HAoEC viability. | Cell Death & Disease

Fig. 3: Effects of MGO on HUVEC and HAoEC viability.

From: Molecular mechanisms of methylglyoxal-induced aortic endothelial dysfunction in human vascular endothelial cells

Fig. 3

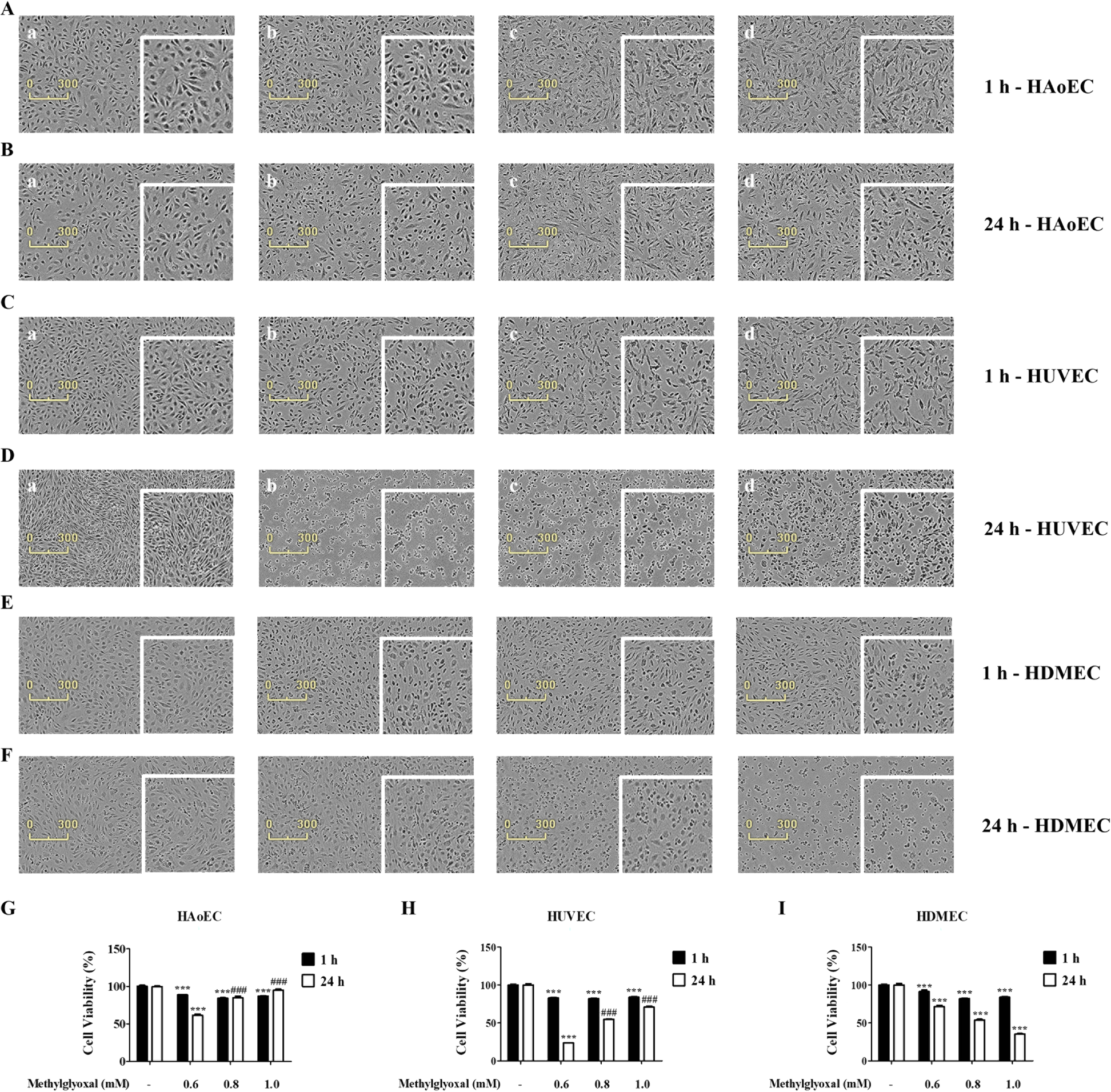

a–f Photomicrographs of HAoEC, HUVEC, and HDMEC: a Control; b MGO 0.6 mM; c MGO 0.8 mM; d MGO 1.0 mM for 1 and 24 h. g–i The viability of HAoEC, HUVEC, and HDMEC under treatment with three concentrations (0.6, 0.8, and 1.0 mM) of MGO for 1 and 24 h. Cell viability was measured using MTT assay, as detailed in the methods section. Scale bar indicates 300 μm. All data are shown as means ± SEM. N = 3 (***p < 0.001 vs. Control, ###p < 0.001 vs. MGO 0.6 mM).
