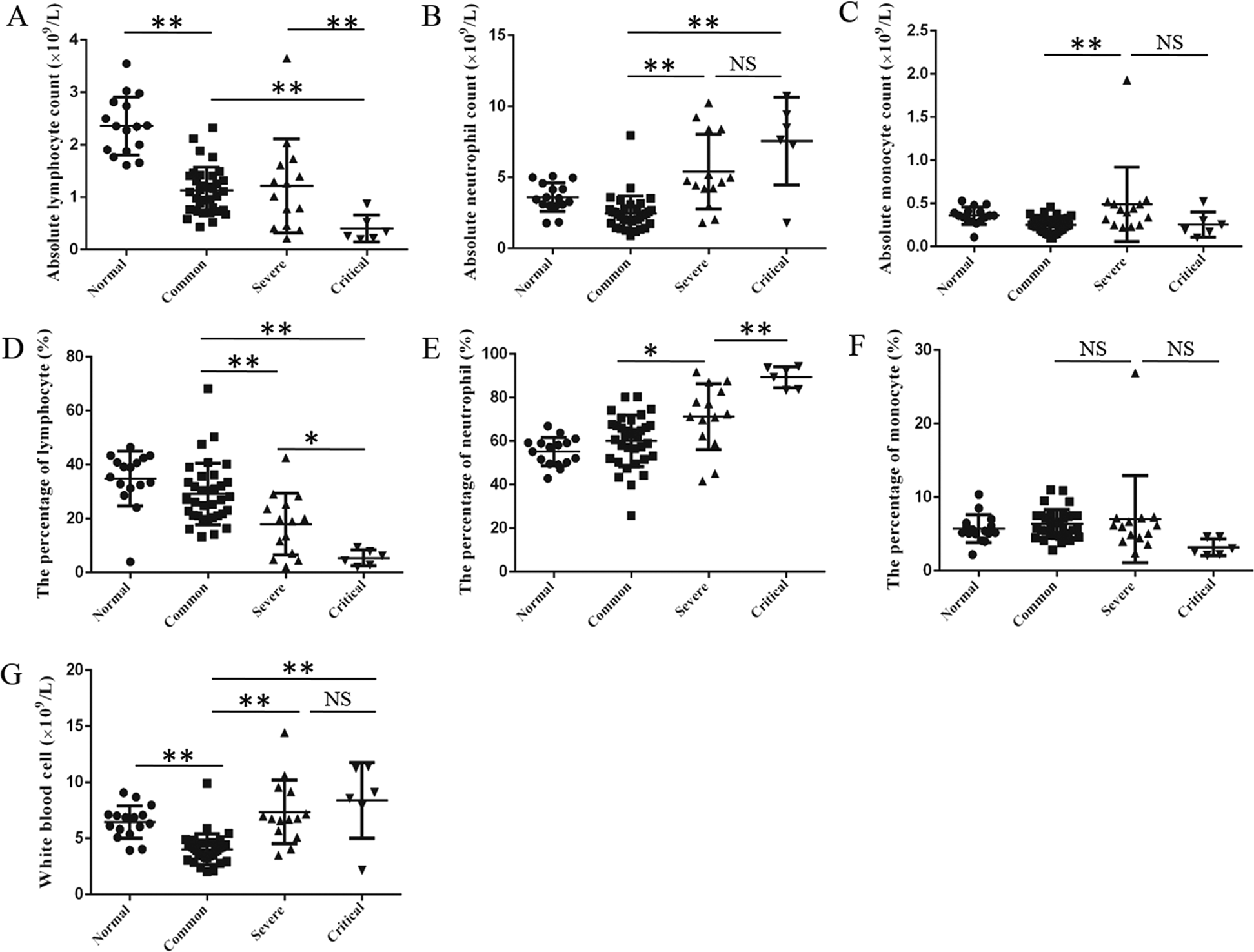

Fig. 1: The blood routine analysis in patients with COVID-19 pneumonia.

From: The inhibition of IL-2/IL-2R gives rise to CD8+ T cell and lymphocyte decrease through JAK1-STAT5 in critical patients with COVID-19 pneumonia

Fig. 1: The blood routine analysis in patients with COVID-19 pneumonia.

The patients were enrolled and divided into common, severe, and critical types. The absolute count of lymphocyte (a), neutrophil (b), monocyte (c), and the percentage of lymphocyte (d), neutrophil (e), monocyte (f), and white blood cell count (g) in patients and normal controls were acquired by full-automatic blood routine detector. One-way analysis of variance (ANOVA) followed by post hoc LSD was used to compare differences between groups. *P < 0.05 and **P < 0.01.
