Fig. 5: Expression profiling of mRNA changes during the early phase of adipogenic differentiation. | Cell Death & Disease

Fig. 5: Expression profiling of mRNA changes during the early phase of adipogenic differentiation.

From: RNA decay in processing bodies is indispensable for adipogenesis

Fig. 5

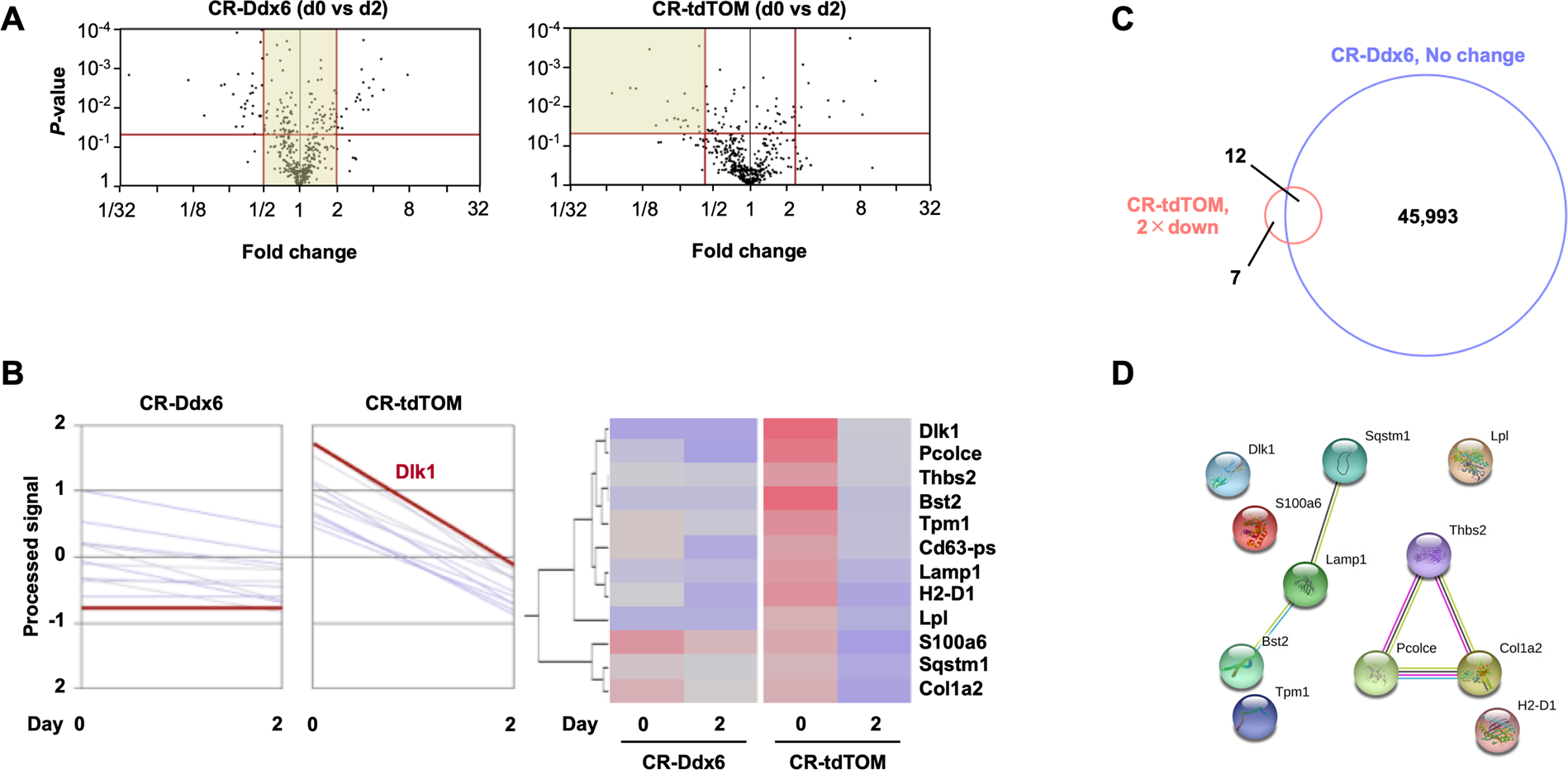

A Volcano plots at the early phase of adipogenesis in TOM-transfected and 3T3L1 Ddx6-KD preadipocytes. B Heatmap of 12 selected genes whose expression was reduced twofold in 3T3L1 TOM cells but not in 3T3L1 Ddx6-KD cells. C Venn diagram showing the number of mRNAs relevant to each segment. D Protein–protein interaction network of 12 intersecting genes predicted by STRING analysis.
