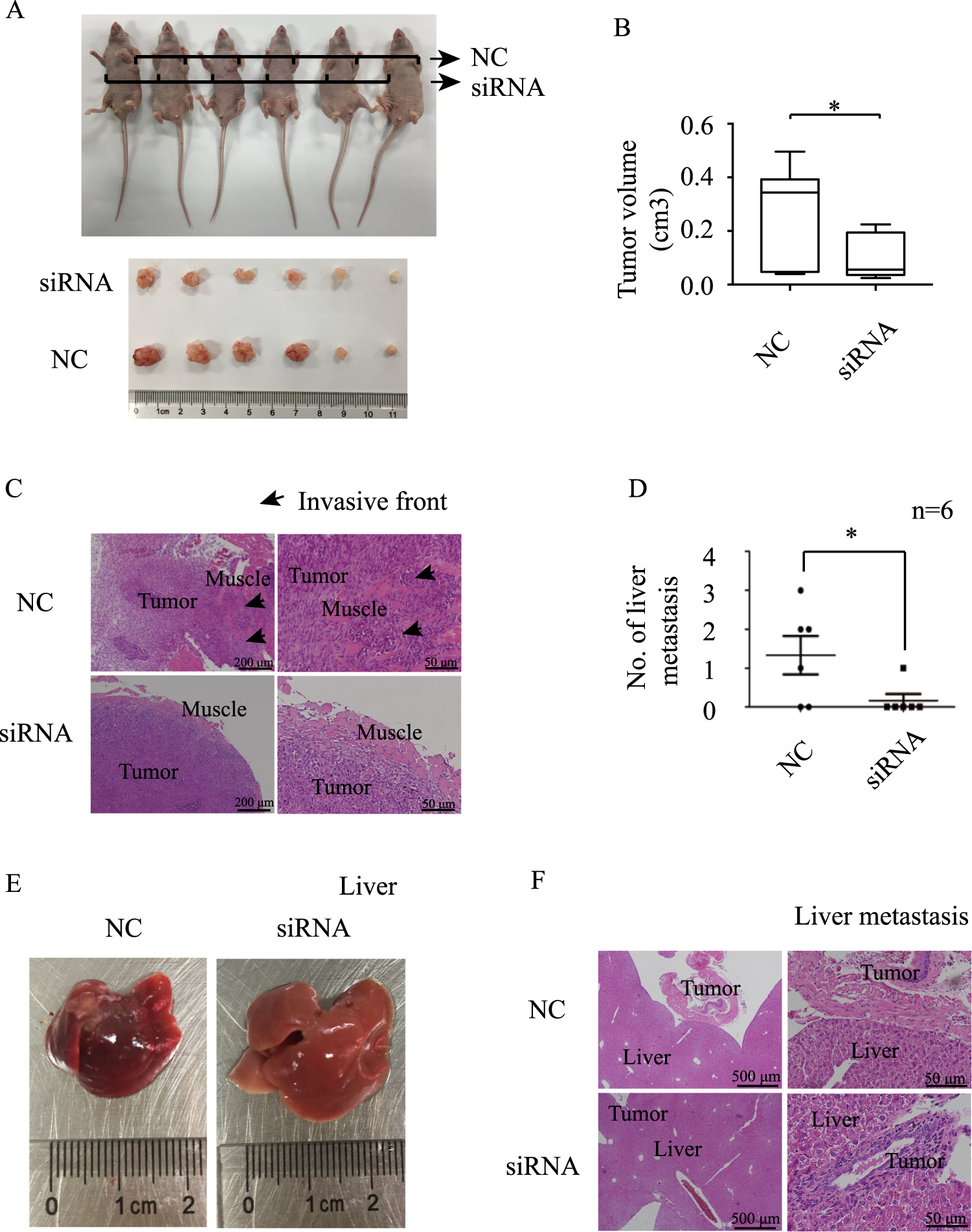

Fig. 3: Hsa_circ_0006401 promoted the proliferation and metastasis of CRC in vivo.
From: Circular RNA hsa_circ_0006401 promotes proliferation and metastasis in colorectal carcinoma
A Cells were subcutaneously injected into nude mice. All injected mice formed tumors. Tumor were isolated, and tumor volume was measured. B Box plot of tumor volume in nude mice. n = 6. *p < 0.05. C Tumors and the surrounding tissues from mice in the control and hsa_circ_0006401-silenced groups were fixed and subjected to hematoxylin and eosin staining. D The number of liver metastases and the metastatic burden was determined and graphed. *p < 0.05. E Representative images of the livers of mice from different groups are shown. F Representative images of hematoxylin and eosin staining of the livers of mice from different groups are shown. Error bars indicate SD.
