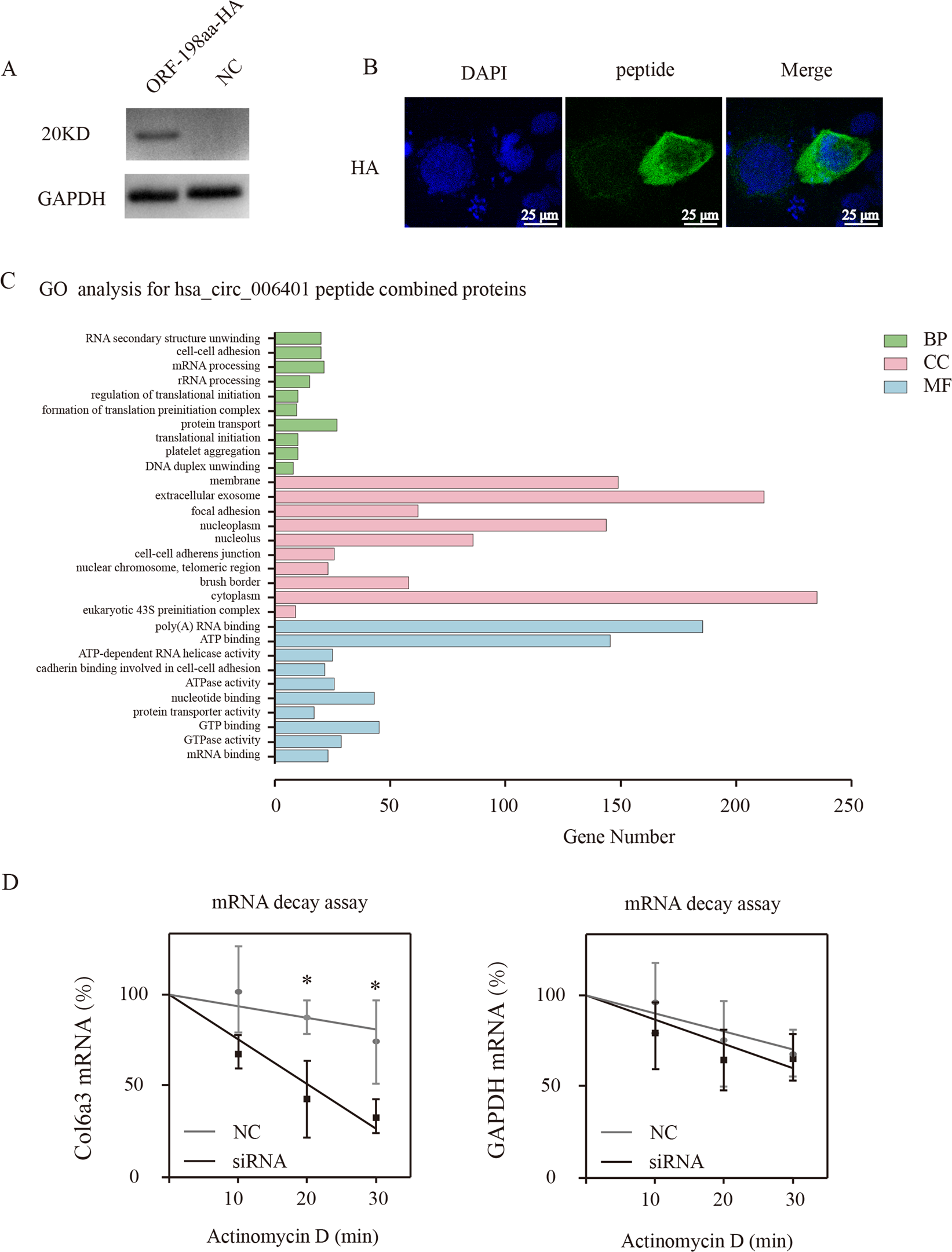

Fig. 7: Hsa_circ_0006401 peptides promote COL6A3 mRNA stabilization.
From: Circular RNA hsa_circ_0006401 promotes proliferation and metastasis in colorectal carcinoma
A HA tag expression in negative control SW480 cancer cells (NC) and hsa_circ_0006401 ORF-198aa-HA tag plasmid transfected SW480 cancer cells (ORF-198aa-HA). B Representative images of the location of hsa_circ_0006401 peptide in SW480 cells. C Gene ontology (GO) analysis for hsa_circ_0006401 peptide combined proteins. BP represents biological processes, CC represents cellular components and MF represents molecular functions. D Decay of col6a3 and GAPDH mRNA was monitored in SW480 cells treated with Actinomycin D with indicated time points. NC (negative control), siRNA (hsa_circ_0006401 circRNA level was silenced by siRNA). Min represents minutes. Error bars indicate SD, and data were fitted by linear regression. *p < 0.05.
