Fig. 8: The dysregulation of CBX7–AKR1B10 axis is associated with poor clinical outcome.

From: CBX7 suppresses urinary bladder cancer progression via modulating AKR1B10–ERK signaling

Fig. 8: The dysregulation of CBX7–AKR1B10 axis is associated with poor clinical outcome.

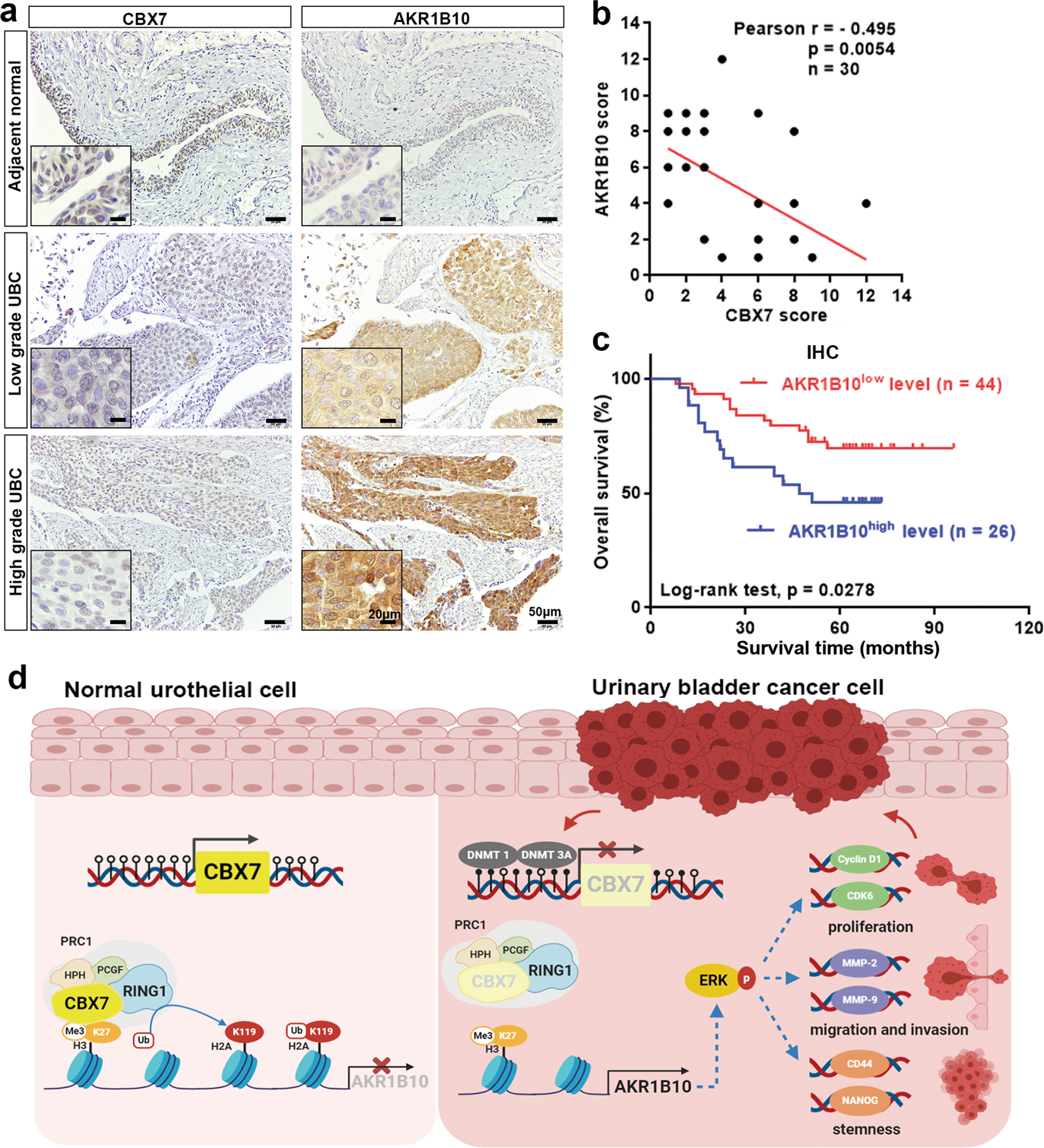

a Representative IHC staining images of the localization and expression level of CBX7 and AKR1B10 in adjacent normal tissues and UBC tissues were displayed. Scale bar, 50 μm; inset, 20 μm. b Pearson correlation analysis showed a significant negative correlation between CBX7 and AKR1B10 expression. c Kaplan–Meier survival plot for AKR1B10 was constructed according to the IHC staining score. d A working model of CBX7/AKR1B10/ERK axis in UBC progression.
