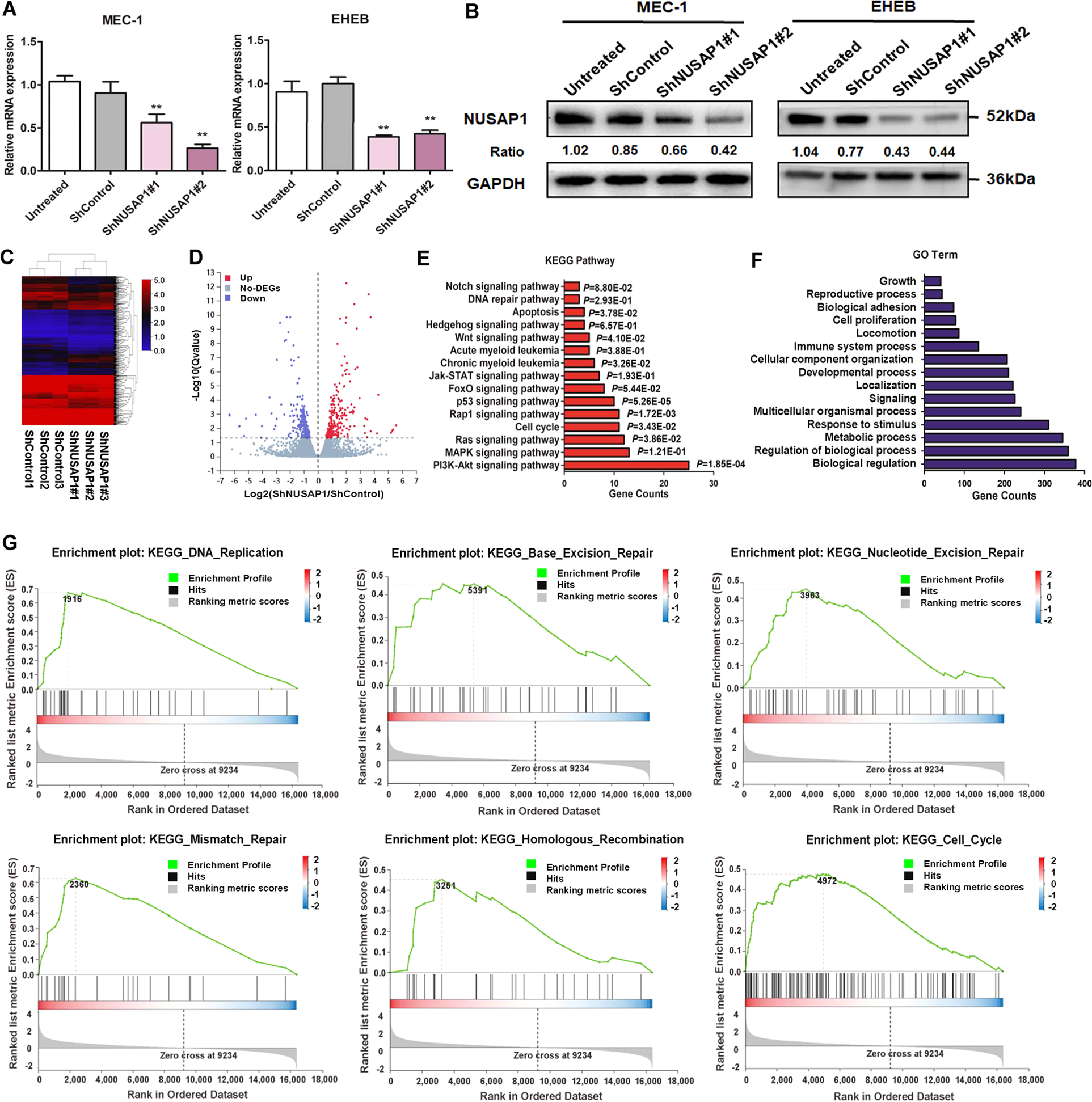

Fig. 2: RNA-seq analysis of NUSAP1 between ShControl and ShNUSAP1 cells. | Cell Death & Disease

Fig. 2: RNA-seq analysis of NUSAP1 between ShControl and ShNUSAP1 cells.

From: Nucleolar and spindle associated protein 1 enhances chemoresistance through DNA damage repair pathway in chronic lymphocytic leukemia by binding with RAD51

Fig. 2: RNA-seq analysis of NUSAP1 between ShControl and ShNUSAP1 cells.

A Efficiency verification of NUSAP1 knockdown in MEC-1 cells by qRT-PCR. B Efficiency verification of NUSAP1 knockdown in MEC-1 cells by western blot. C The heatmap of different gene-expression in MEC-1 after lentivirus transfection. D Gene volcano map about 277 down and 236 upregulated genes. E KEGG pathway analysis of NUSAP1 expression. F GO terms analysis of differently expressing genes. (G) GSEA analysis of different gene expression correlated with NUSAP1 was performed. NES normalized enrichment score. Data are shown as the mean ± SD, n = 3. *p < 0.05; **p < 0.01.
