Fig. 6: LHPP suppresses aerobic glycolysis. | Cell Death & Disease

Fig. 6: LHPP suppresses aerobic glycolysis.

From: m6A methylation mediates LHPP acetylation as a tumour aerobic glycolysis suppressor to improve the prognosis of gastric cancer

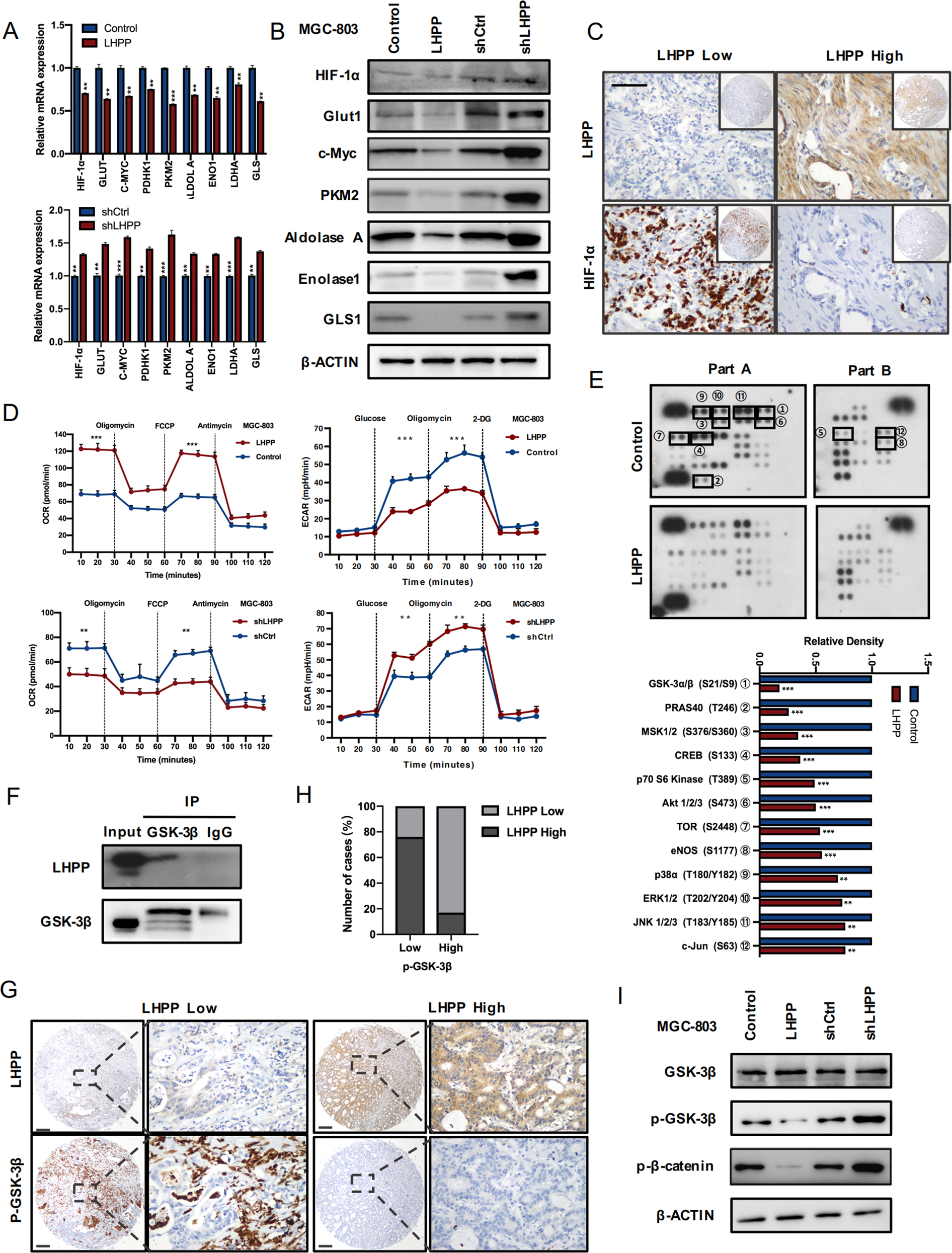

Fig. 6: LHPP suppresses aerobic glycolysis.The alternative text for this image may have been generated using AI.

A Relative mRNA expression levels of glycolytic genes and glutamine transporters in LHPP-overexpressing or LHPP-knockdown MGC-803 cells and control cells by qPCR. B Protein expression levels of glycolytic genes and glutamine transporters in LHPP-overexpressing or LHPP-knockdown MGC-803 cells and control cells on western blot. C IHC staining of LHPP and HIF1A in TMAs and their correlation. Scale bars = 100 μm. D Oxygen consumption rate and extracellular acidification rate of LHPP-overexpressing or LHPP-knockdown MGC-803 cells and control cells were measured using the Seahorse Bioscience XF96 analyser. E Human phosphokinase microarray assay analysis of the conditioned medium from stably transfected HGC-27 cells. A summary of the relative signal intensities of the indicated proteins is shown. G, H IHC staining of LHPP and p-GSK3b in TMAs and their correlation. Scale bars = 200 μm. F Combined LHPP and GSK3b by co-immunoprecipitation. I Protein expression levels of the Wnt pathway in LHPP-overexpressing or LHPP-knockdown MGC-803 cells and control cells on western blot. Data were analyzed using the Wilcoxon test. *P < 0.05, **P < 0.01, ***P < 0.001, KEGG Kyoto encyclopaedia of genes and genomes, GO gene ontology, qPCR quantitative polymerase chain reaction, IHC immunohistochemical, TMA tissue microarray.
