Fig. 2: Familial PMF with CHST15 mutation exhibits activation of immune/inflammation/extracellular matrix signals in PBMNCs.

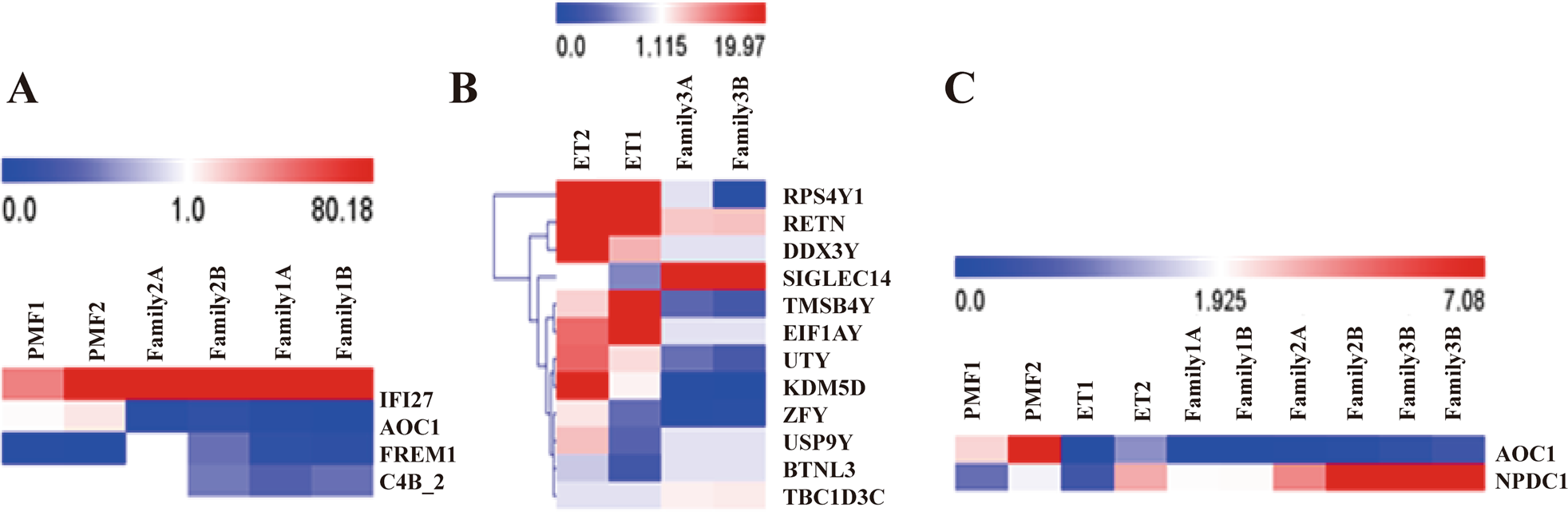

A Heatmap shows hierarchical clustering of expression profiles of 4 differentially expressed CHST15 target genes in familial PMF (red:upregulation;blue:downregulation). Microarray assay of genes with >2.0-fold upregulation or downregulation. B Familial essential thrombocythemia (ET) genes expression profiles. Heatmap shows hierarchical clustering of profiles of 12 differentially expressed genes. C Genes expression profiles both in familial PMF and in familial ET.
