Fig. 5: MiR-6820-3p inhibits the proliferation, migration, and invasion of PDAC cells. | Cell Death & Disease

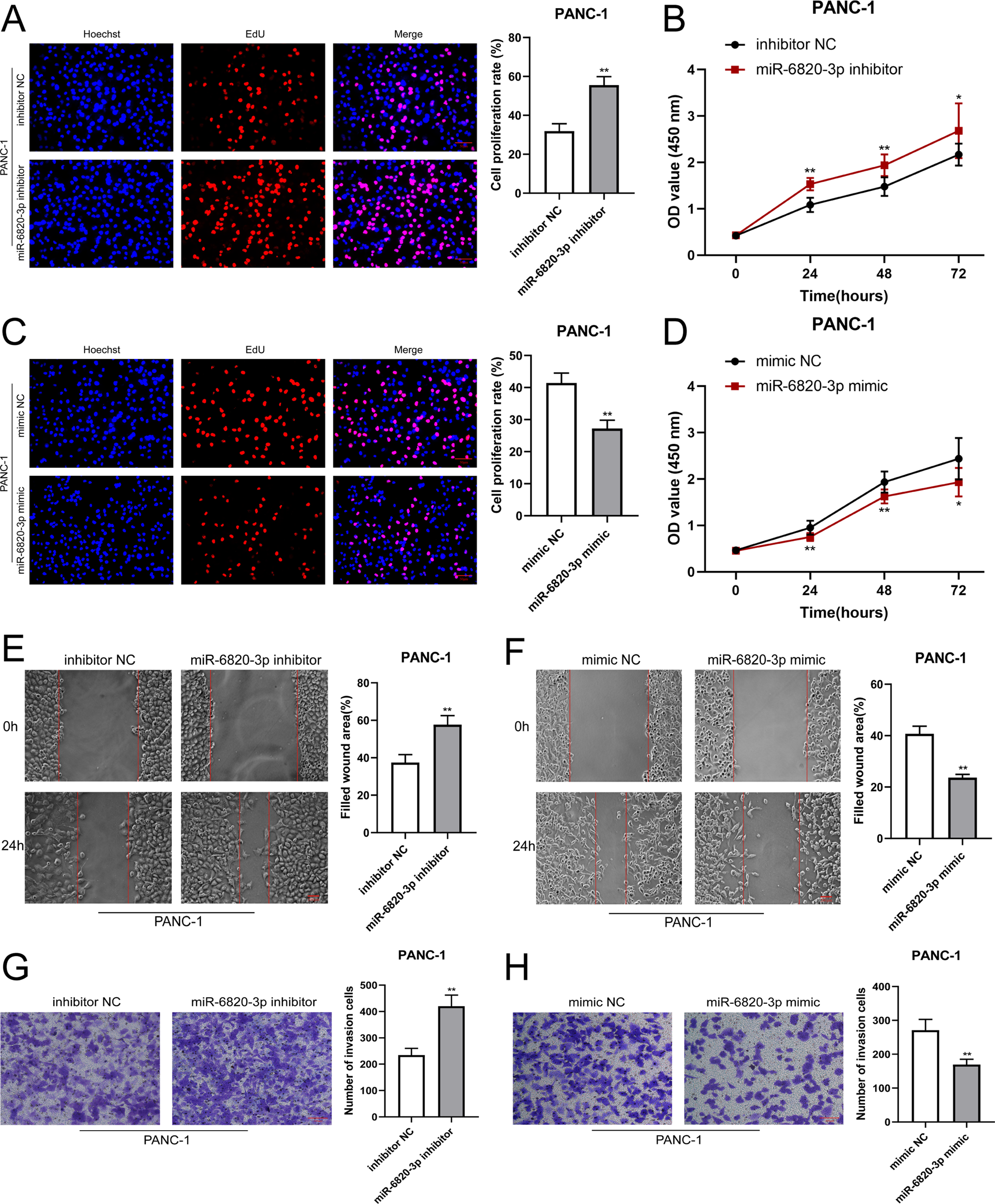

Fig. 5: MiR-6820-3p inhibits the proliferation, migration, and invasion of PDAC cells.

From: Circular RNA hsa_circ_0007367 promotes the progression of pancreatic ductal adenocarcinoma by sponging miR-6820-3p and upregulating YAP1 expression

Fig. 5

A–D EdU (A, C) and CCK-8 B, D assay were used to evaluate the proliferation ability of the cells transfected with miR-6820-3p inhibitor or mimics. E–H Cell migratory and invasive capabilities were determined by wound-healing and transwell invasion assays in PANC-1 cells transfected with miR-6820-3p inhibitor or mimics. All data are shown as the mean ± SD of at least three independent experiments. *p < 0.05, **p < 0.01.
