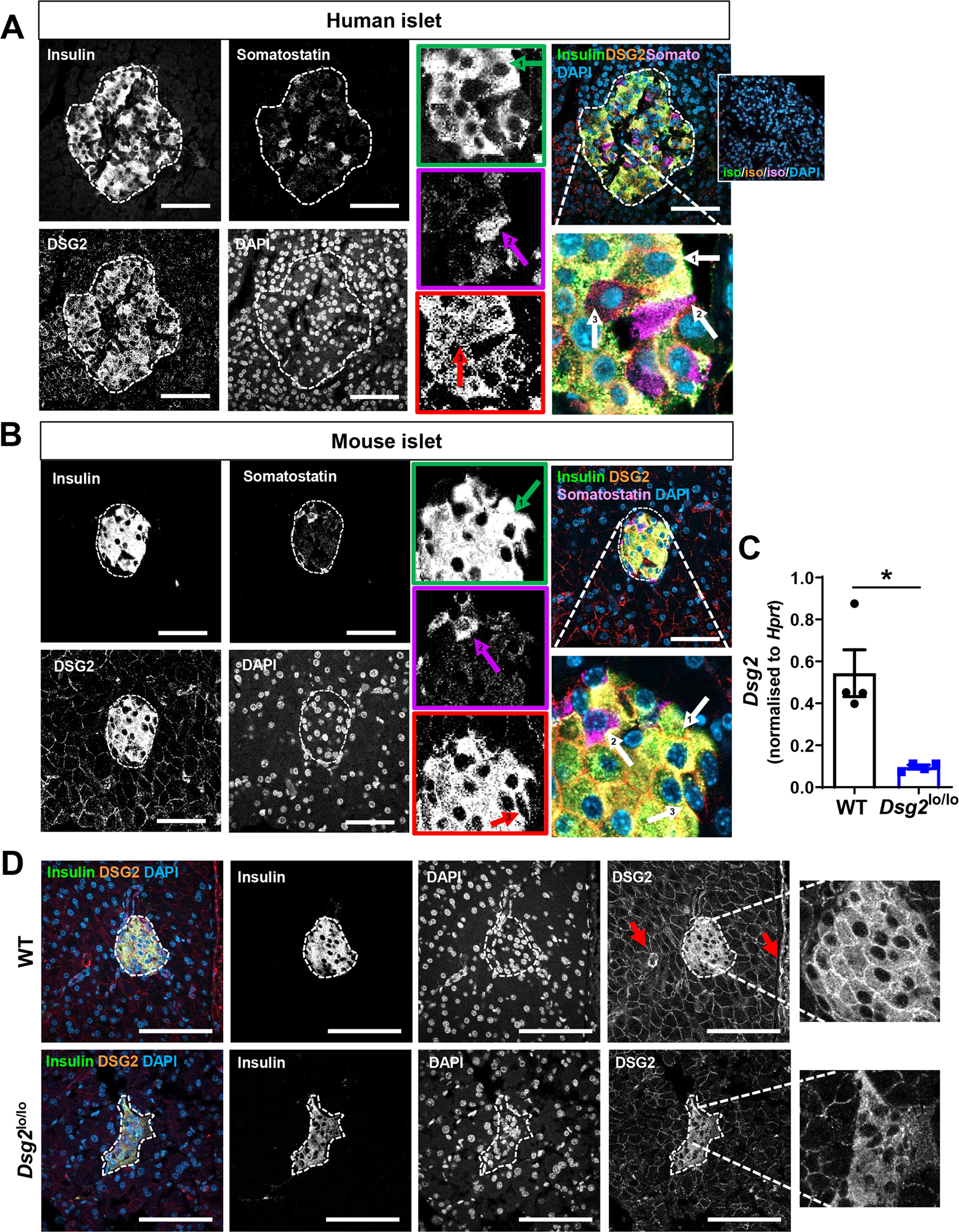

Fig. 2: DSG2 expression by select cell types in the islets of humans and mice.
From: Desmoglein-2 is important for islet function and β-cell survival
Immunofluorescence confocal microscopy of A human and B mouse islets stained for insulin (green), DSG2 (red), somatostatin (magenta), and nuclei (DAPI, blue). Insets with arrow labelled ‘1’ indicating insulin-positive cells, arrow labelled ‘2’ indicating somatostatin positive cells, and cells with neither insulin nor somatostatin staining indicated with arrow labelled ‘3’. Scale bar = 50 μm. Insert top right is representative of isotype control stains. C Mouse pancreata were isolated from wildtype (WT, black circles) and Dsg2lo/lo (blue squares) mice and Dsg2 gene expression determined via qRT-PCR. Data are expressed as mean ± SEM relative to housekeeper gene (Hprt1), n = 4 mice per group, *p < 0.05 vs WT. D Immunofluorescence confocal microscopy of pancreas sections from WT and Dsg2lo/lo mice stained for insulin (green), DSG2 (red), and nuclei (blue). Red arrow indicating blood vessels. Scale bar = 50 μm.
