Fig. 2: Peptains protect RGCs from ischemia/reperfusion (I/R) injury in mice.

From: Peptains block retinal ganglion cell death in animal models of ocular hypertension: implications for neuroprotection in glaucoma

Fig. 2

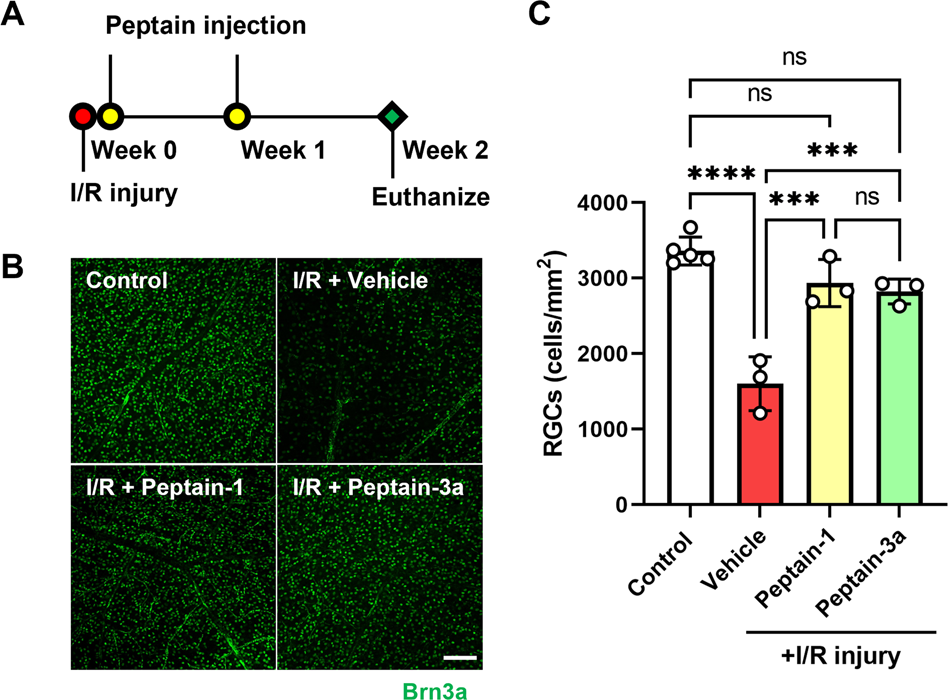

A Peptain injection timeline for I/R injury is shown. Mice were subjected to retinal I/R injury. Peptains (1 μl, 1 mg/mL) were injected into the vitreous humor immediately or one week after I/R injury. The vehicle-control group (I/R) was injected with 1 μl PBS (with 0.1% DMSO). B Fourteen days after injury, retinal flatmounts were prepared and the RGCs (green) were immunolabeled with a Brn3a antibody. C The bar graph shows the number of RGCs/mm2 in the mid-peripheral retina. The bars represent the mean ± SD of three independent experiments. Each data point represents one animal. ***p < 0.001, ****p < 0.0001, ns = not significant. Control = contralateral uninjured eye. Scale bar = 100 μm.
