Fig. 4: Effects of antioxidants on SeC-induced cell death and the Nrf2 pathway. | Cell Death & Disease

Fig. 4: Effects of antioxidants on SeC-induced cell death and the Nrf2 pathway.

From: Blockage of Nrf2 and autophagy by L-selenocystine induces selective death in Nrf2-addicted colorectal cancer cells through p62-Keap-1-Nrf2 axis

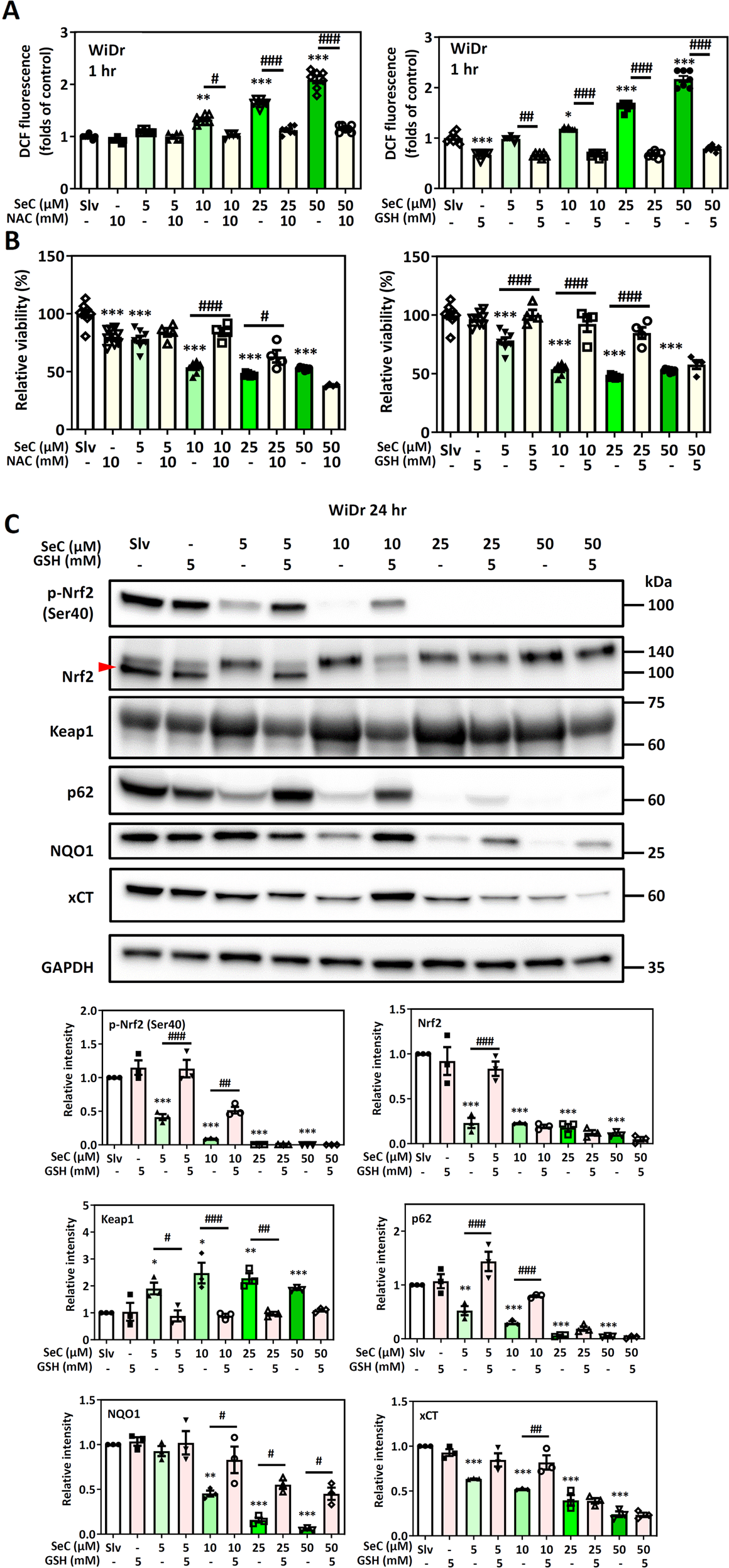

Fig. 4

A Intracellular ROS levels (n = 7) were measures by fluorescent reader after SeC treatment with or without antioxidants (NAC and GSH). B cell viability (n = 8) of WiDr cells exposed to SeC with or without antioxidants (NAC and GSH) pretreatment. The values were presented as average ± SD from seven or eirht independent repeats. C Levels of phosphorylated Nrf2 and Nrf2 regulated proteins in WiDr cells after SeC treatment and GSH. GAPDH was used as loading control (n = 3) (*P < 0.05, **P < 0.01, ***P < 0.001, compared with solvent control, ##P < 0.01, ###P < 0.001, compared with SeC-treated cells without antioxidant pretreatment, significance was determined by one-way ANOVA). The values were presented as average ± SD from three independent repeats.
