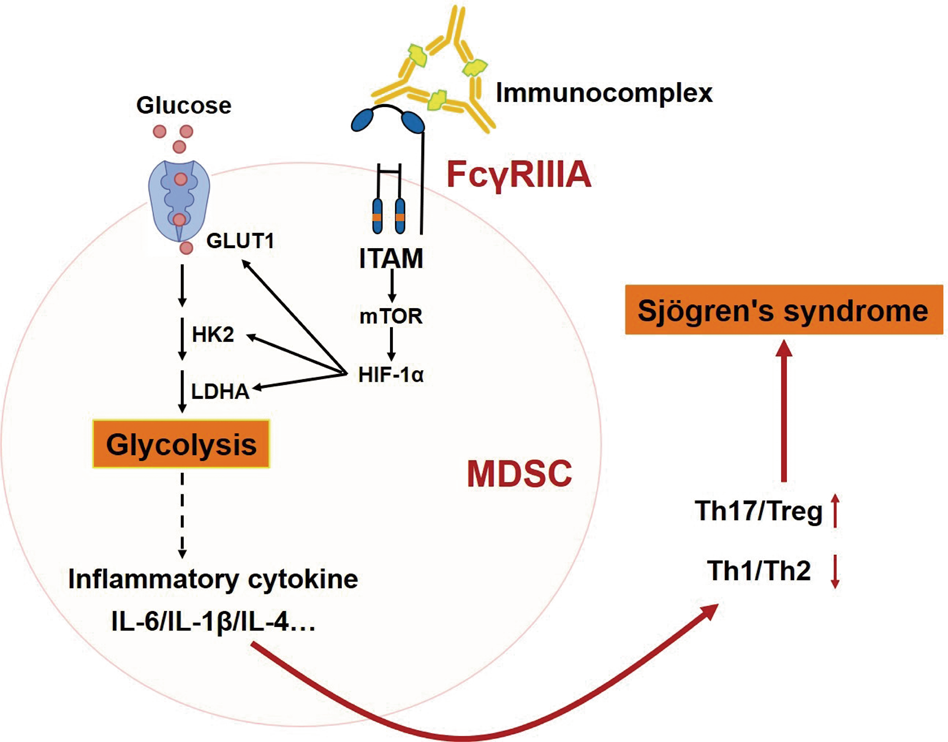

Fig. 8: Schematic representation of FcγRIIIA activationinducing MDSCs to alter CD4+ T cell subsets by enhancing glycolysis in Sjögren syndrome. | Cell Death & Disease

Fig. 8: Schematic representation of FcγRIIIA activationinducing MDSCs to alter CD4+ T cell subsets by enhancing glycolysis in Sjögren syndrome.

From: FcγRIIIA activation-mediated up-regulation of glycolysis alters MDSCs modulation in CD4+ T cell subsets of Sjögren syndrome

Fig. 8

By cross-linking with FcγRIIIA on MDSCs, immunocomplex activates the cytoplasmic ITAM, which induces the activation of mTOR to promote the expression of transcriptional factor HIF-1α. Furthermore, HIF-1α promote the expression of glycolysis-associated Glut1, HK2 and LDHA to enhance glycolysis, which results in inflammatory cytokines up-regulation leading to the decreased Th1/Th2 ratio and increased Th17/Treg ratio.
