Fig. 1: The landscape profiling of single cells in AEG and GAC tumors. | Cell Death & Disease

Fig. 1: The landscape profiling of single cells in AEG and GAC tumors.

From: Comparative single-cell analysis reveals heterogeneous immune landscapes in adenocarcinoma of the esophagogastric junction and gastric adenocarcinoma

Fig. 1: The landscape profiling of single cells in AEG and GAC tumors.The alternative text for this image may have been generated using AI.

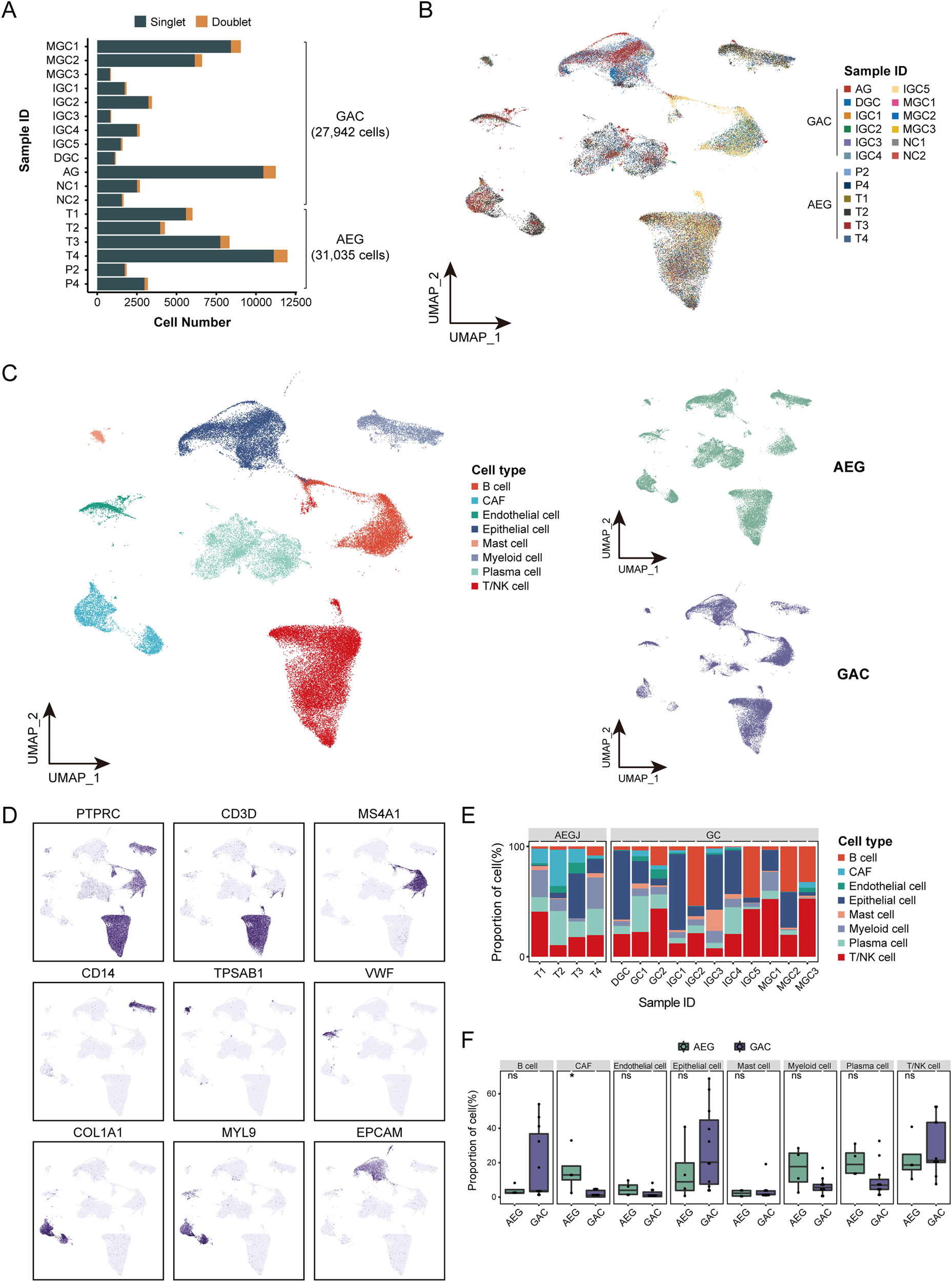

A The number of cells for each sample, including singlets and doublets. B UMAP plot showing cells derived from each AEG and GAC sample. C UMAP plot showing cells grouped into eight major cell types (left panel) from either AEG or GAC tumors (right panel). D Expression of canonical marker genes to define the major cell types. E The proportion of major cell types in each AEG and GAC sample. F Comparison of the proportion for each major cell type between AEG and GAC using Wilcoxon rank-sum test. nsP ≥ 0.05, *P < 0.05.
