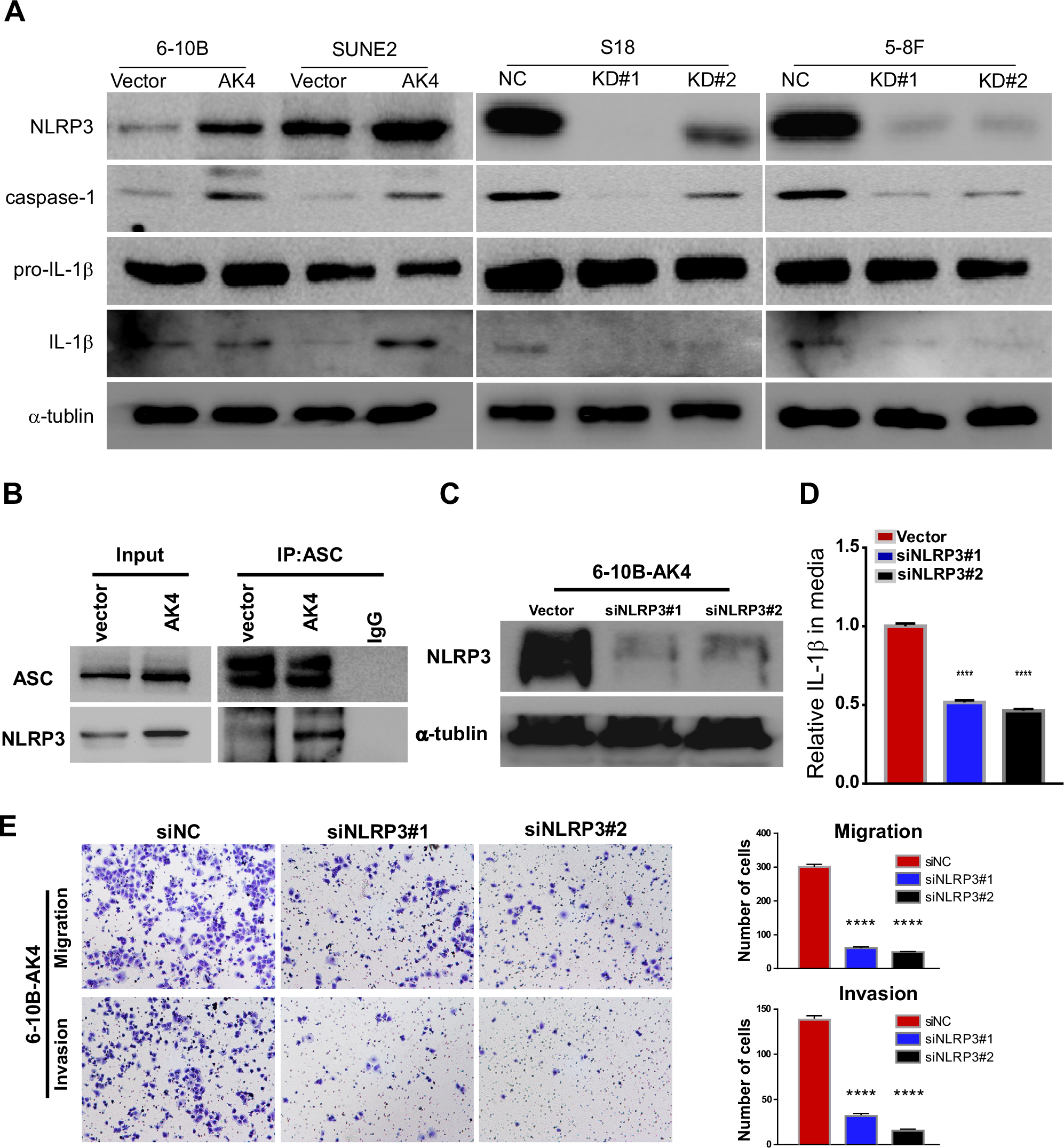

Fig. 7: AK4 induces IL-1β secretion by activating the NLRP3 signaling pathway. | Cell Death & Disease

Fig. 7: AK4 induces IL-1β secretion by activating the NLRP3 signaling pathway.

From: AK4 promotes nasopharyngeal carcinoma metastasis and chemoresistance by activating NLRP3 inflammatory complex

Fig. 7: AK4 induces IL-1β secretion by activating the NLRP3 signaling pathway.

Western blot revealed that AK4 overexpression upregulated the expression of NLRP3, caspase-1, and IL-1β, and AK4 knockdown in cells reduced the expression of NLRP3, caspase-1, and IL-1β (A). AK4 overexpression enhanced the interaction between NLRP3 and ASC (B). Western blot showed that NLRP3-targeting siRNAs were transfected into 6-10B cells stably overexpressing AK4 (C). NLRP3 knockdown abrogated AK4-mediated IL-1β release and promotion of migration and invasion (D, E). Data are represented as the mean ± SEM. * p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001; Student’s t test.
