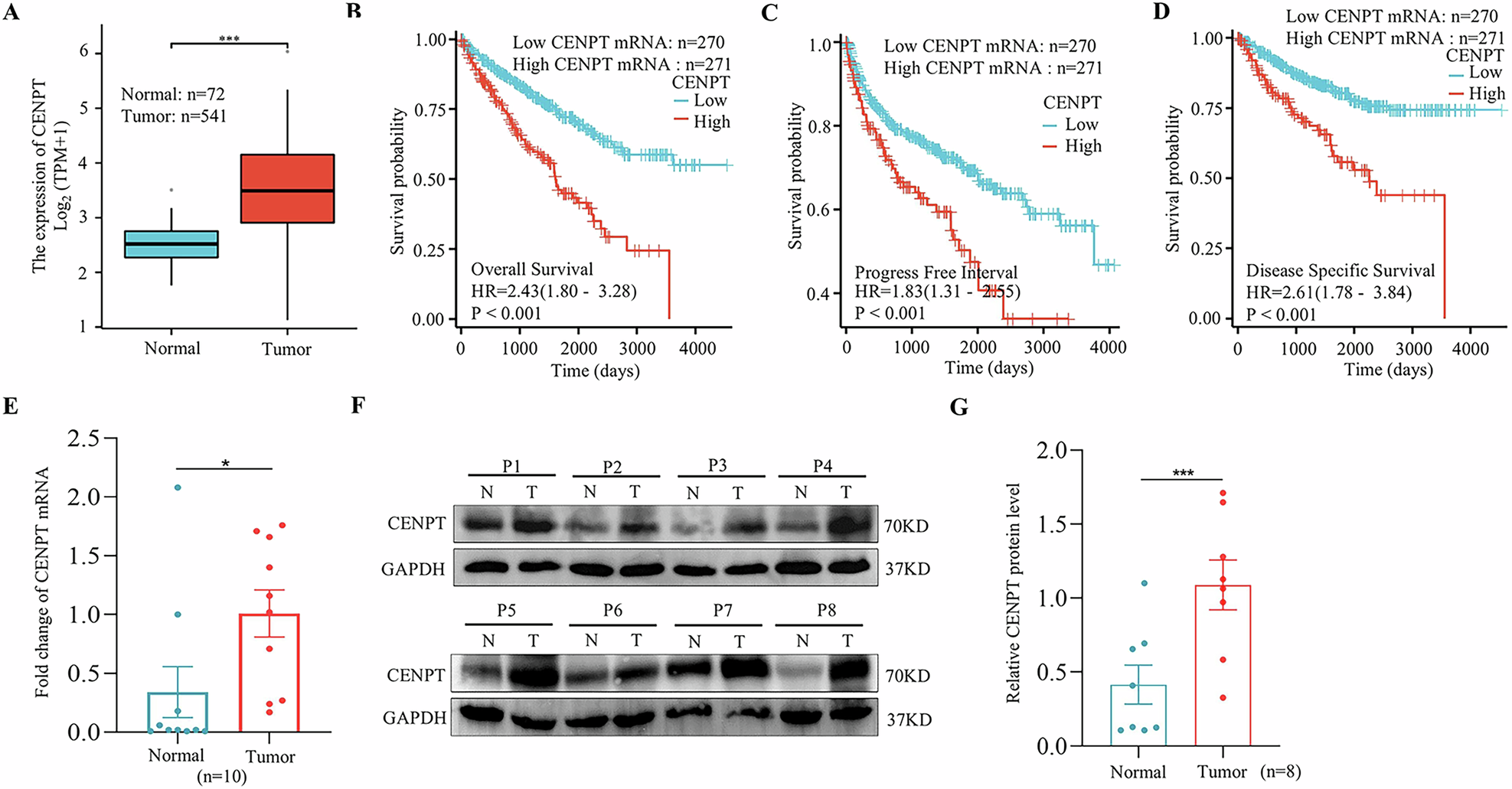

Fig. 1: The expression of CENPT was correlated with the prognosis of RCC.
From: CENPT prevents renal cell carcinoma against ferroptosis by enhancing the synthesis of glutathione
A Relative expression of CENPT in RCC samples from the TCGA database; The prognostic curves of different CENPT expression levels in RCC samples were analyzed. Kaplan-Meier analysis of the correlation between CENPT levels and overall survival (B), progress free interval (C) and disease specific survival (D) in RCC samples; E qRT-PCR was used to analyze the mRNA expression level of CENPT in tumor tissues and paratumor samples from RCC patients. F, G Western blot analysis of the protein expression level of CENPT in tumor tissues and paratumor samples from RCC patients. Data are mean ± SEM. The n number represents n biologically independent patient samples in each group. Exact n values are marked in the images. Statistical significance was determined by Student’s t-test (A, E), Log-rank test (B–D) and t-test (two tail) (G). Compared with the indicated group, *p < 0.05, ***p < 0.001.
