Fig. 1: YBX1 interacting proteins related to metabolism in ccRCC. | Cell Death & Disease

Fig. 1: YBX1 interacting proteins related to metabolism in ccRCC.

From: YBX1 orchestrates LDHA-mediated metabolic reprogramming and NF-κB activation to drive clear cell renal cell carcinoma progression

Fig. 1

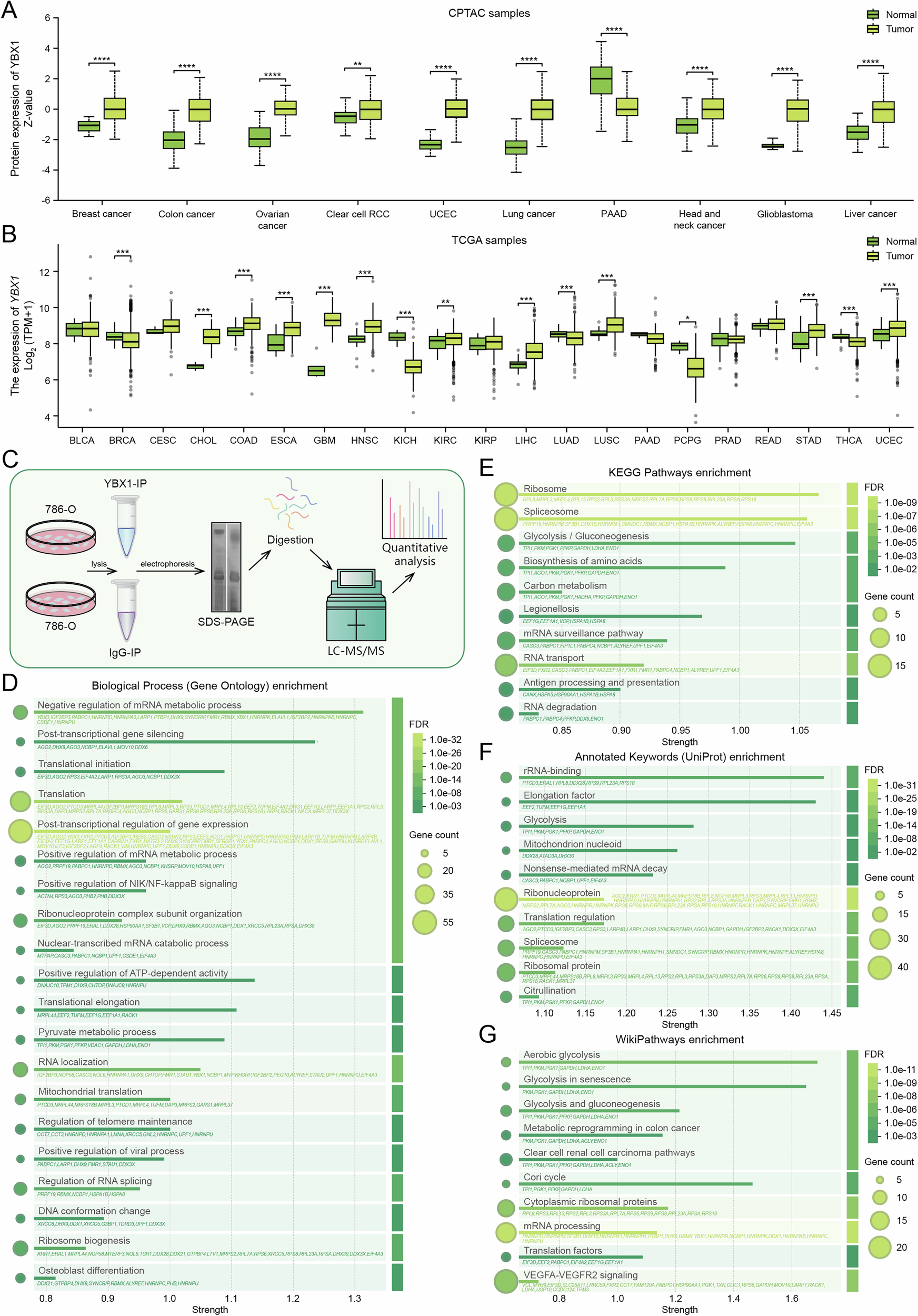

A Protein levels of YBX1 in 10 different types of tumors from the CPTAC database. B mRNA levels of YBX1 in 21 different types of tumors from the TCGA database. C–G Enrichment functional analysis of proteins interacting with YBX1 in ccRCC cell line 786-O through Co-IP pull-down and identified by mass spectrometry. C Mass spectrometry identification schematic. D Gene Ontology Biological Process (GO-BP) enrichment. E KEGG pathway enrichment. F UniPort annotation keywords. G Wiki Pathways enrichment analysis. **P < 0.01, ***P < 0.001, ****P < 0.0001. Unpaired two-sided Student’s t-test in A and B. Data are presented as mean ± SD.
