Fig. 5: Pre-treatment with combined berzosertib and irradiation significantly decreased tumor growth in ovo.

From: Berzosertib enhances the sensitivity of pediatric diffuse midline glioma H3K27-altered cells to radiotherapy

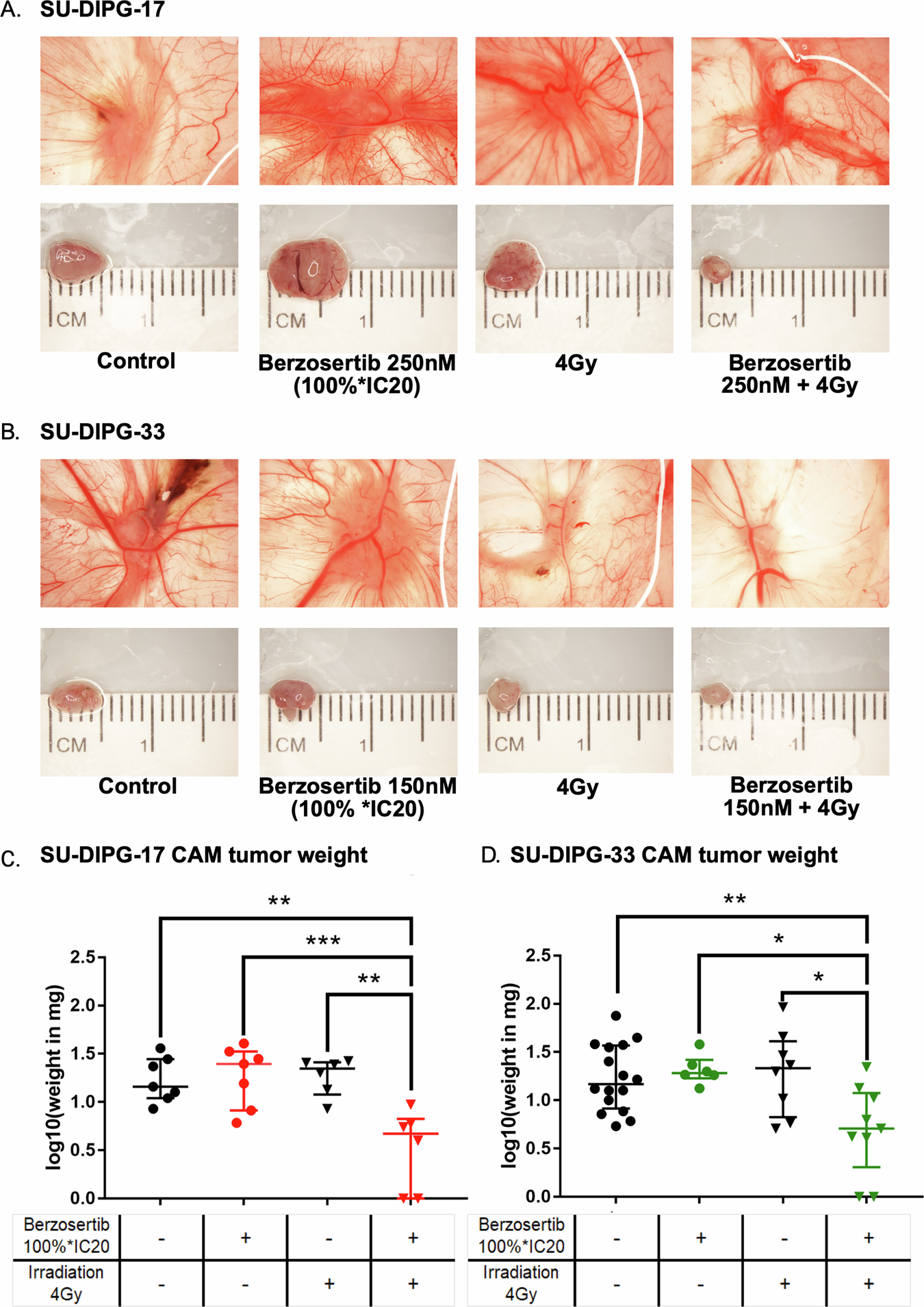

Fig. 5: Pre-treatment with combined berzosertib and irradiation significantly decreased tumor growth in ovo.

SU-DIPG-17 and SU-DIPG-33 cells were treated with 100%* IC20 berzosertib, irradiated 2 h later with 0, 2 or 4 Gy, seeded on the CAM-membrane of eggs. Membrane and tumors were collected 7 days after from the CAM. Representative images of tumors harvested on day 7 from the CAM of the cell lines SU-DIPG-17 (A) and SU-DIPG-33 (B). Overview of the weight of the harvested CAM tumors after separation from the CAM of the cell lines SU-DIPG-17 (C) and SU-DIPG-33 (D). One-way ANOVA was used for comparisons between treatments. ns not significant (p > 0.05), *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. Parentheses above bars indicate significance between compared groups.
