Fig. 2: GSDMD is robustly expressed in myocardial tissues of I/R mice. | Cell Death Discovery

Fig. 2: GSDMD is robustly expressed in myocardial tissues of I/R mice.

From: Mesenchymal stem cell-derived exosomal microRNA-182-5p alleviates myocardial ischemia/reperfusion injury by targeting GSDMD in mice

Fig. 2

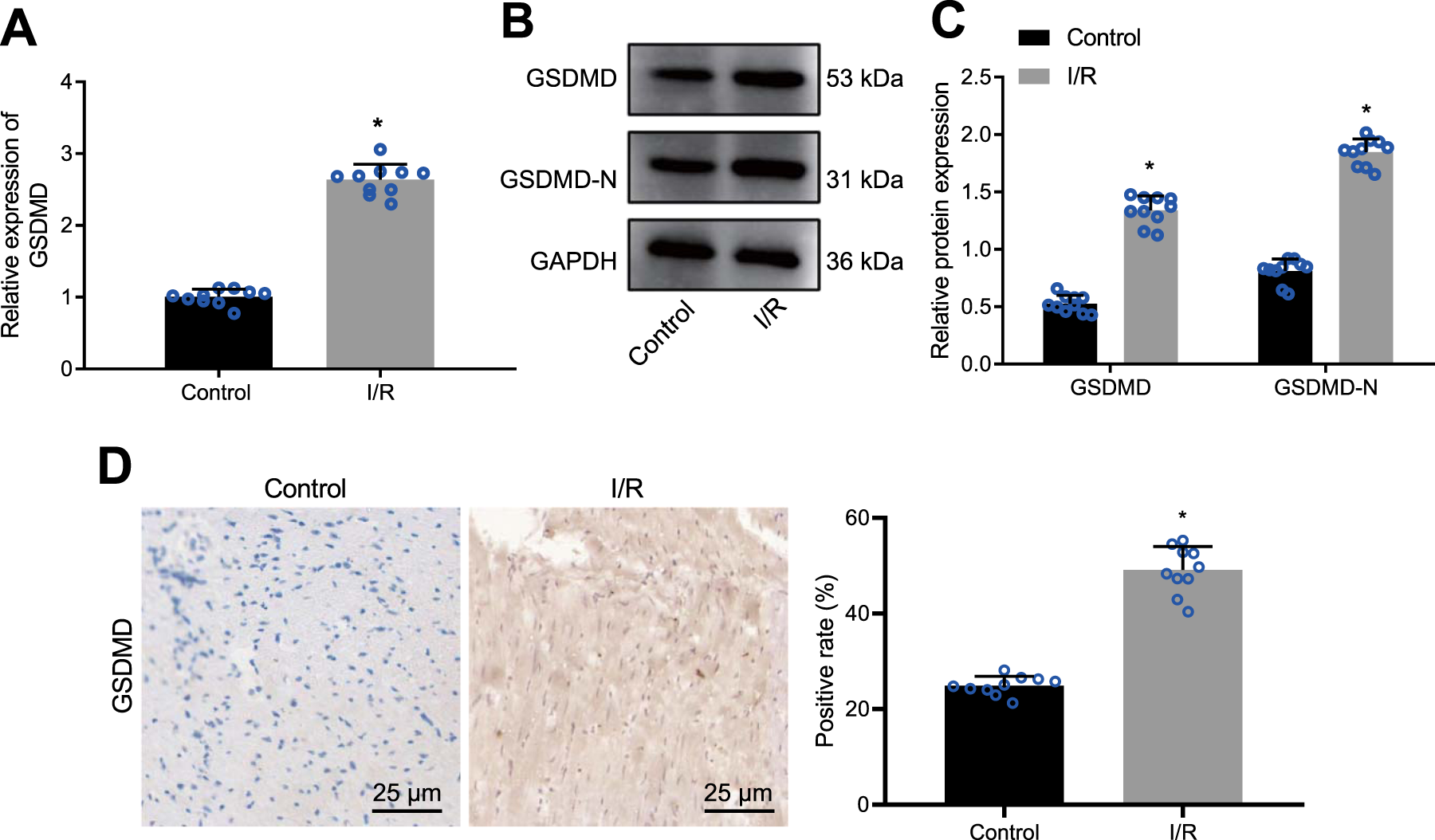

A mRNA expression of GSDMD in myocardial tissues of mice with I/R detected by RT-qPCR, normalized to GAPDH; B Representative images of GSDMD and GSDMD N protein bands in myocardial tissues of mice with I/R. C Western blot analysis of GSDMD protein and GSDMD N in myocardial tissues of mice with I/R, normalized to GAPDH; D Immunohistochemistry staining of GSDMD protein in myocardial tissues of mice with I/R. N = 10 for mice in each group. Measurement data were expressed as mean ± standard deviation. Data comparison between two groups was conducted by unpaired t-test. *p < 0.05 vs. sham-operated mice.
