Fig. 4: Antiviral response in the platelet proteome.

From: Platelet proteome reveals features of cell death, antiviral response and viral replication in covid-19

Fig. 4

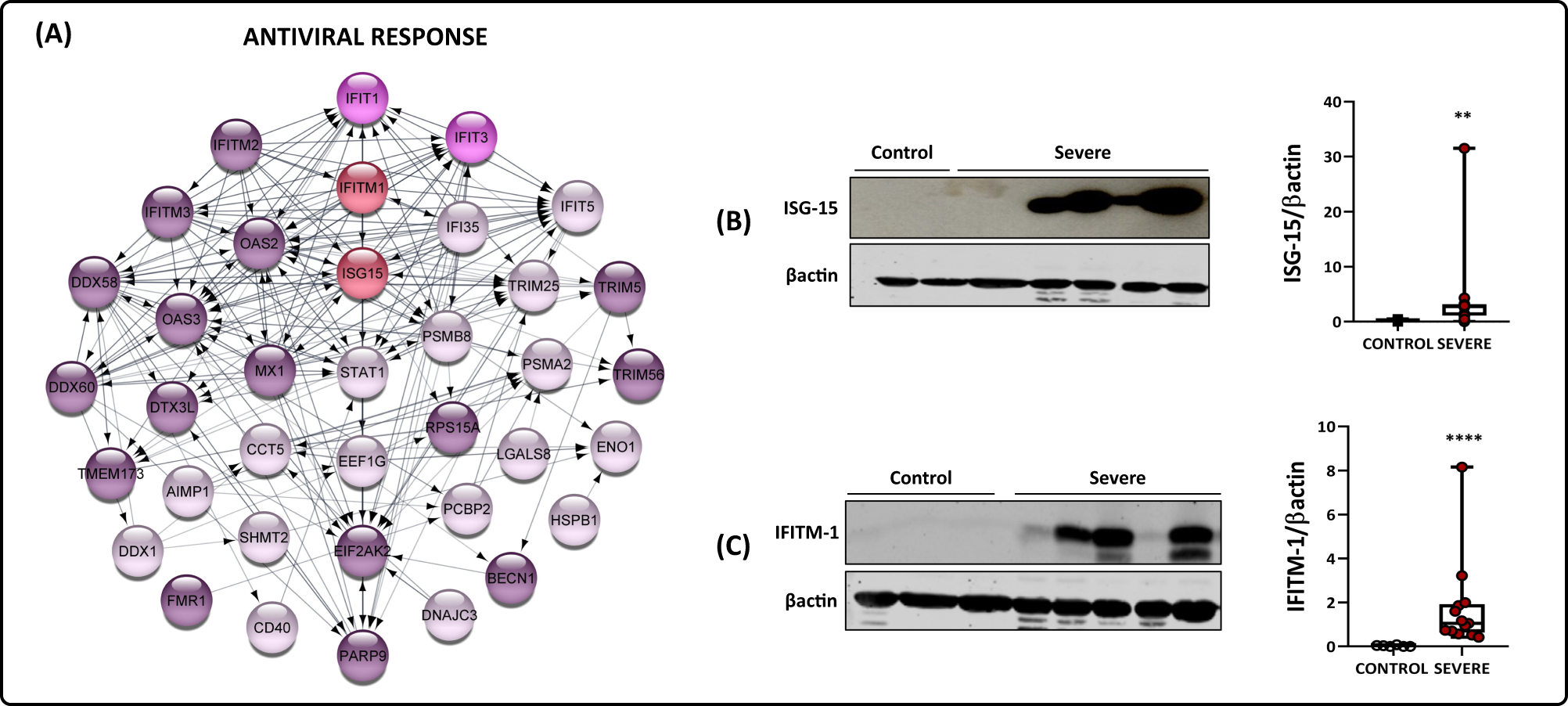

A PPI is related to the response through type-I interferon. Each color represents a different EP/DEP classification: purple EPs represent PPIs described in the COVID-19 group. The EPs IFIT1 and 3, EPs from the COVID-19 group, and a DEP exclusive to the survivor group subset are represented in pink. The DEPs from the COVID-19 group are displayed in light pink. Last, the validated proteins ISG-15 and IFITM-1, both EPs from the COVID-19 group, are represented in red. All DEPs were shown to be upregulated. B Western blot analysis of ISG-15 and β-actin in platelets isolated from three healthy volunteers (controls) and nine patients with severe COVID-19. C Western blot analysis of IFITM-1 and β-actin in platelets isolated from three controls and nine patients with severe COVID-19. The densitometric analyses of each band are represented in a graph. The boxes indicate the median and interquartile ranges, and whiskers indicate minimal and maximal values in each group. *p < 0.05 between controls and severe COVID-19 patients (unpaired t test).
