Fig. 1: Decreased expression of PRMT5 in the endometrial stromal cells of endometriosis patients. | Cell Death Discovery

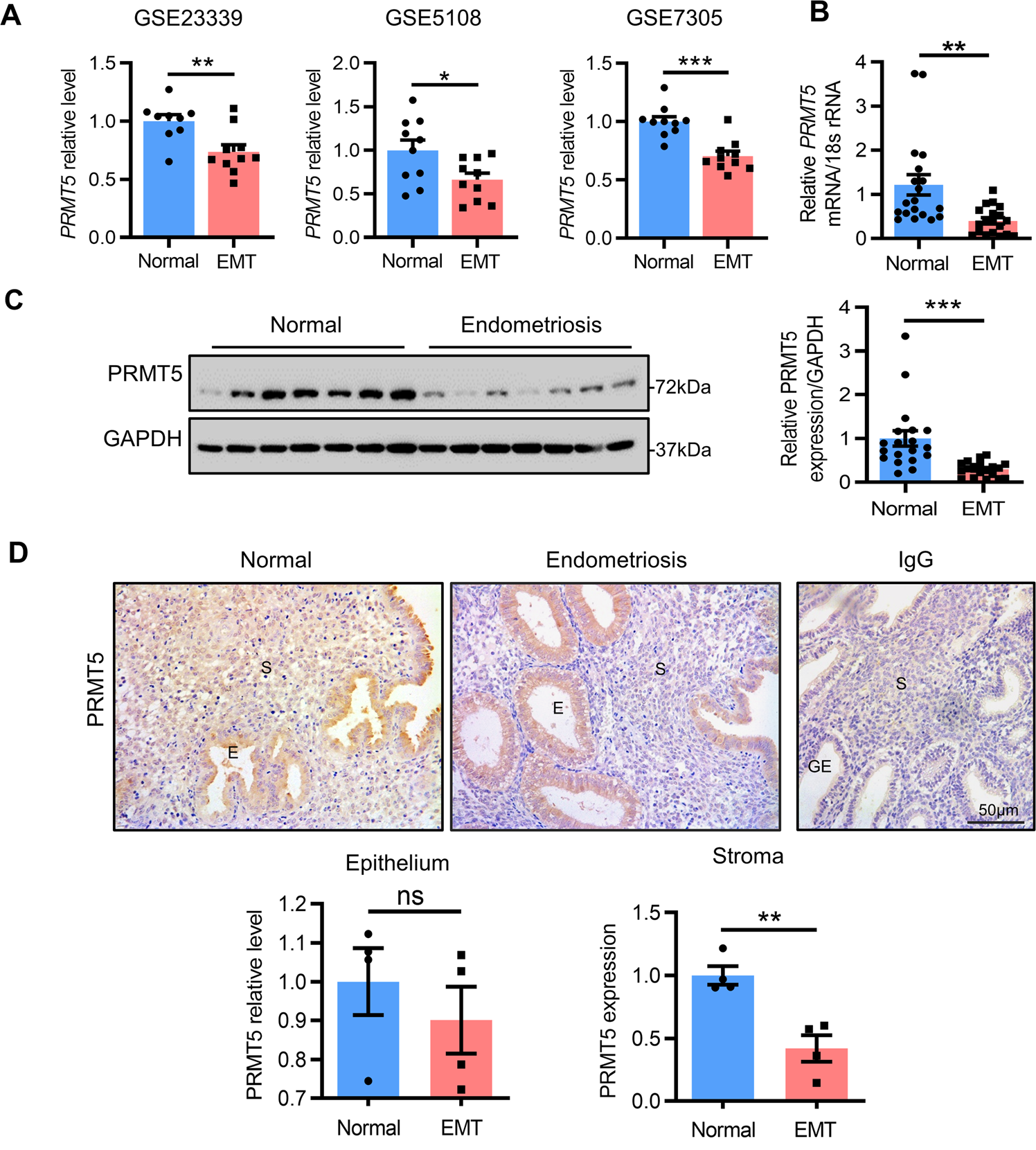

Fig. 1: Decreased expression of PRMT5 in the endometrial stromal cells of endometriosis patients.

From: Endometrial stromal PRMT5 plays a crucial role in decidualization by regulating NF-κB signaling in endometriosis

Fig. 1

A The mRNA levels of PRMT5 in the ectopic endometrium from women with endometriosis (EMT) and endometrium of healthy controls from GSE23339, GSE5108 and GSE7305. B qRT–PCR analysis and C Western blot analysis of PRMT5 in the mid-secretory phase eutopic endometrium from women with (EMT: n = 19) or without (normal: n = 19) endometriosis. D IHC analysis of PRMT5 in the mid-secretory phase eutopic endometrium from women with (EMT: n = 4) or without (normal: n = 4) endometriosis. Scale bar = 50 µm; E epithelium, S stroma. Means ± SEM. *P < 0.05, **P < 0.01, ***P < 0.001, Student’s t-test.
