Fig. 6: The level of necroptosis is attenuated under the inhibition of RIPK3 protein expression. | Cell Death Discovery

Fig. 6: The level of necroptosis is attenuated under the inhibition of RIPK3 protein expression.

From: UVA induces retinal photoreceptor cell death via receptor interacting protein 3 kinase mediated necroptosis

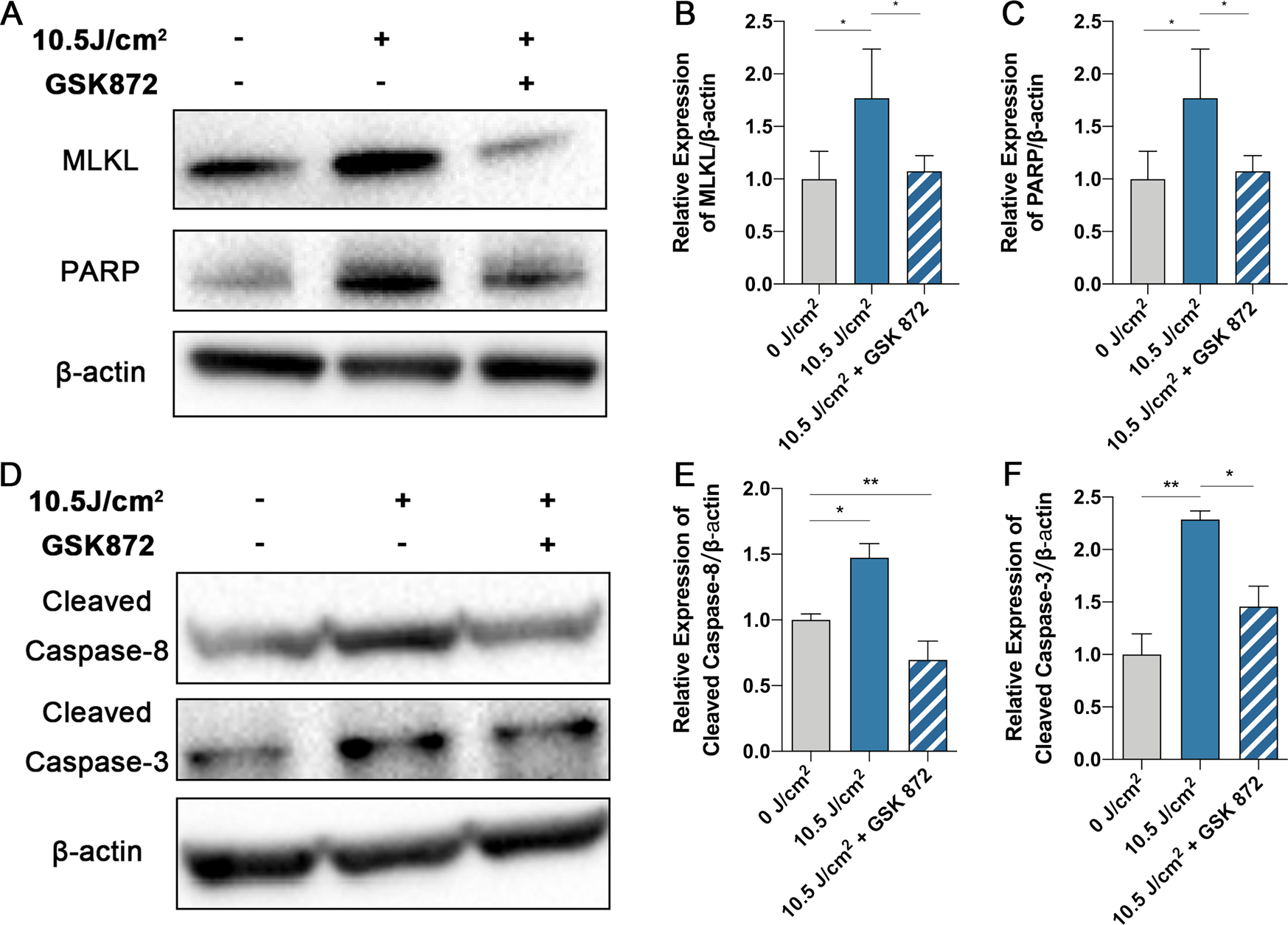

Fig. 6

A–C Representative images and analysis of MLKL, PARP expression by Western Blot in cells treated with GSK 872 after 10.5 J/cm2 UVA irradiation (n = 4 per group). D–F Representative images and analysis of Cleaved Caspase-8 and Cleaved Caspase-3 expression by Western Blot in cells treated with GSK 872 after 10.5 J/cm2 UVA irradiation (n = 4 per group). Statistical significance was analyzed with the unpaired Student’s t-test. Statistical significance was analyzed with the unpaired Student’s t-test. Statistical significance is indicated as *. *P < 0.05, **P < 0.01. All values are expressed as mean ± SD.
