Fig. 5: Pkd2l1 deletion retards myelin and neuronal regeneration following SCI.

From: Pkd2l1 deletion inhibits the neurogenesis of cerebrospinal fluid-contacting neurons and impedes spinal cord injury repair

Fig. 5

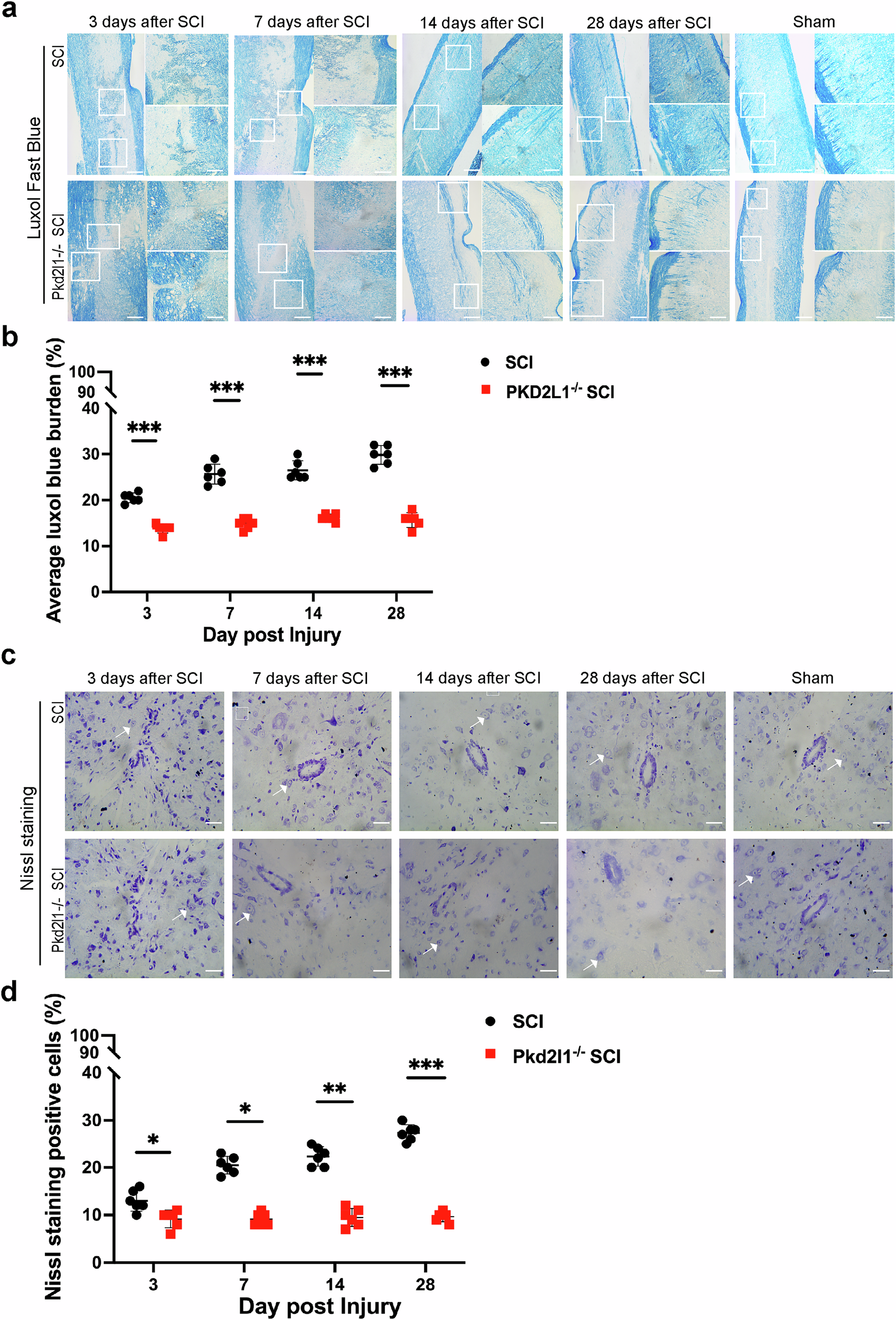

a, b Luxol Fast Blue staining showed that myelin regeneration was almost depleted in Pkd2l1−/− mice (n = 6). c, d Nissl staining showed that Pkd2l1−/− mice had a notable reduction in Nissl bodies surrounding the central canal following SCI (n = 6). *p < 0.05, **p < 0.01, ***p < 0.001. Data are presented as the mean ± SD: scale bars, 100 µm.
