Fig. 3: Combination of cisplatin and derivatives of artemisinin demonstrate beneficial effects.

From: Artemisinin derivatives differently affect cell death of lung cancer subtypes by regulating GPX4 in patient-derived tissue cultures

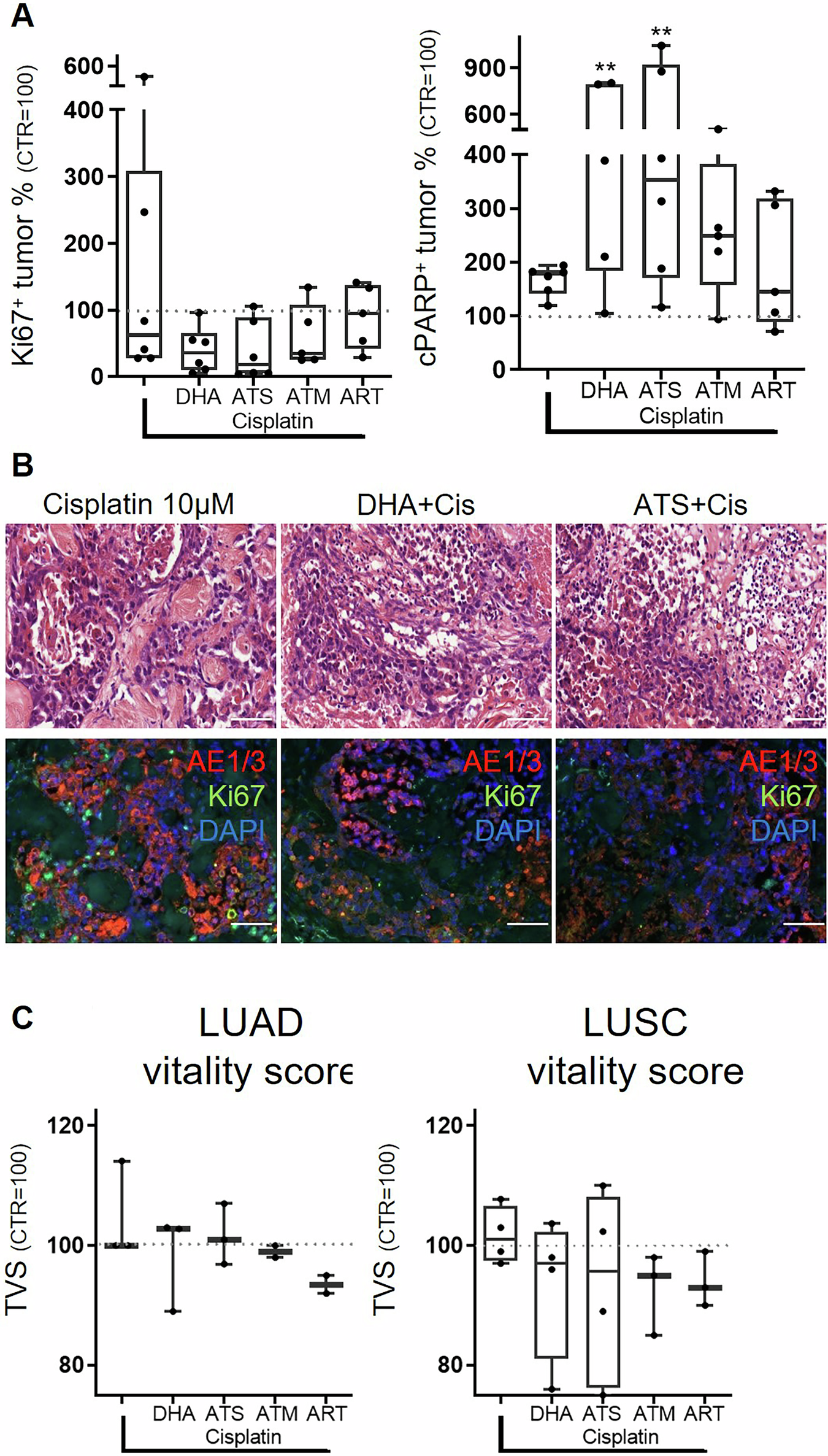

Fig. 3

The large variance of tumor proliferation upon cisplatin is diminished by artemisinin derivatives, while tumor apoptosis increases after combinatory administration of cisplatin and DHA (N = 6, A). Representative pictures are shown, demonstrating the massive increase of apoptotic cell bodies in HE and the reduction of Ki67 positive staining in combined treatment conditions. (Bars = 50 µm, B). Tumor fraction (TF), tumor apoptosis (TA), and proliferation (TP) were combined into one final tumor vitality score (TVS), showing the efficacy of the combinatory treatment against cisplatin in LUSC (LUAD: N = 3, LUSC: N = 4, C) The median of each condition is indicated. (++Mann-Whitney U-test, p < 0.005 vs. CTR).
