Fig. 2: Differential expression patterns of gastric cancer cells in PT and MLN. | Cell Death Discovery

Fig. 2: Differential expression patterns of gastric cancer cells in PT and MLN.

From: Single-cell and spatial dissection of necroptosis spatiotemporal evolution driving lymph node metastasis in gastric cancer

Fig. 2: Differential expression patterns of gastric cancer cells in PT and MLN.The alternative text for this image may have been generated using AI.

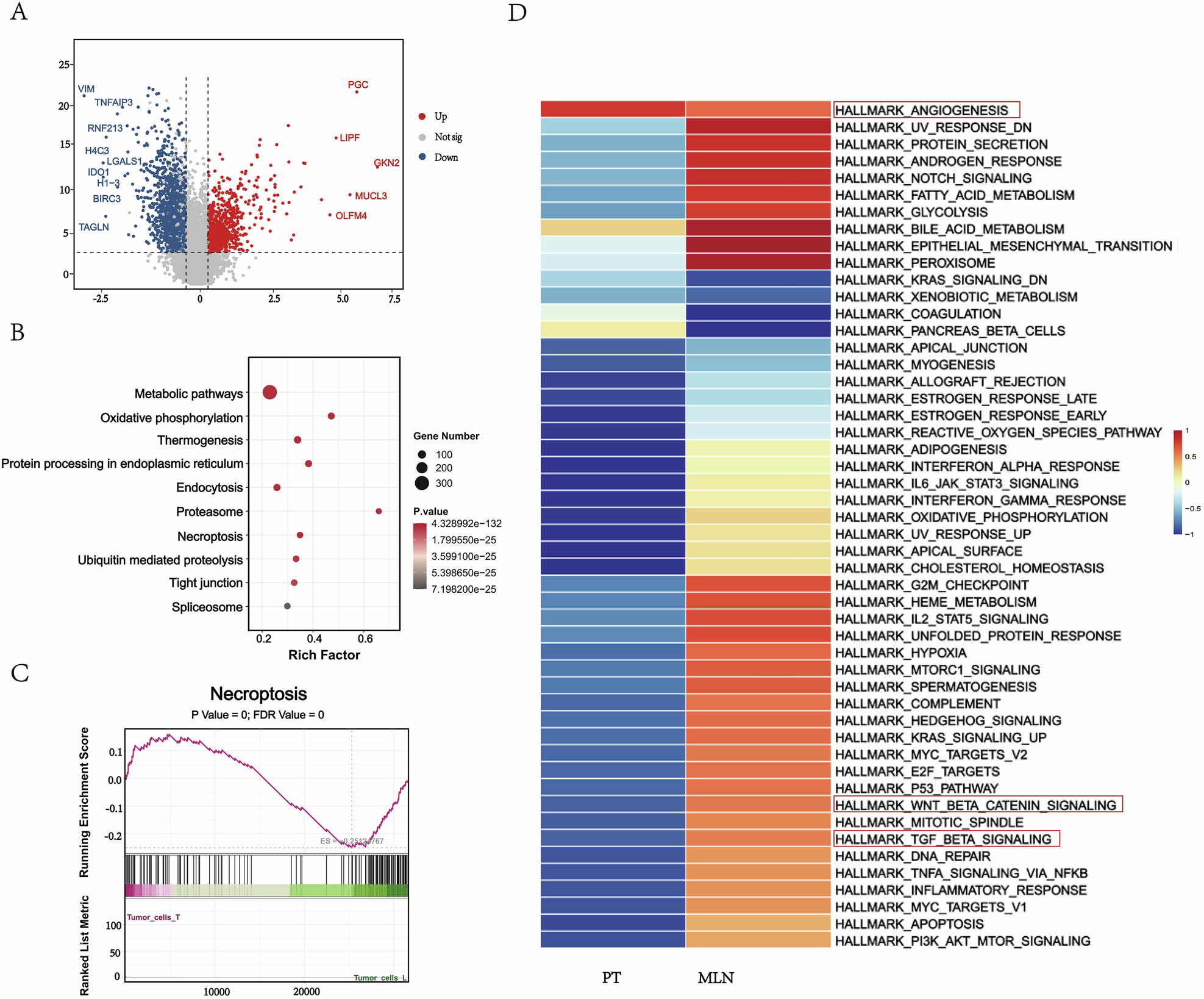

A Volcano plot showing differentially expressed genes (DEGs) detected in PT and MLN. Genes down-regulated in MLN are shown in blue and up-regulated genes are shown in red. B Bubble plots showing the results of KEGG enrichment analysis. The size of the bubbles represents the number of genes involved in the corresponding KEGG term, and the color gradient from blue to red indicates the adjusted p-value. C GSEA analysis of the necroptosis pathway. D Heatmap displaying GSVA scores for the gene signatures associated with critical pathways in PT and MLN.
