Fig. 6: Expression of the Eight Genes Involved in the MK Signaling Network.

From: Single-cell and spatial dissection of necroptosis spatiotemporal evolution driving lymph node metastasis in gastric cancer

Fig. 6: Expression of the Eight Genes Involved in the MK Signaling Network.The alternative text for this image may have been generated using AI.

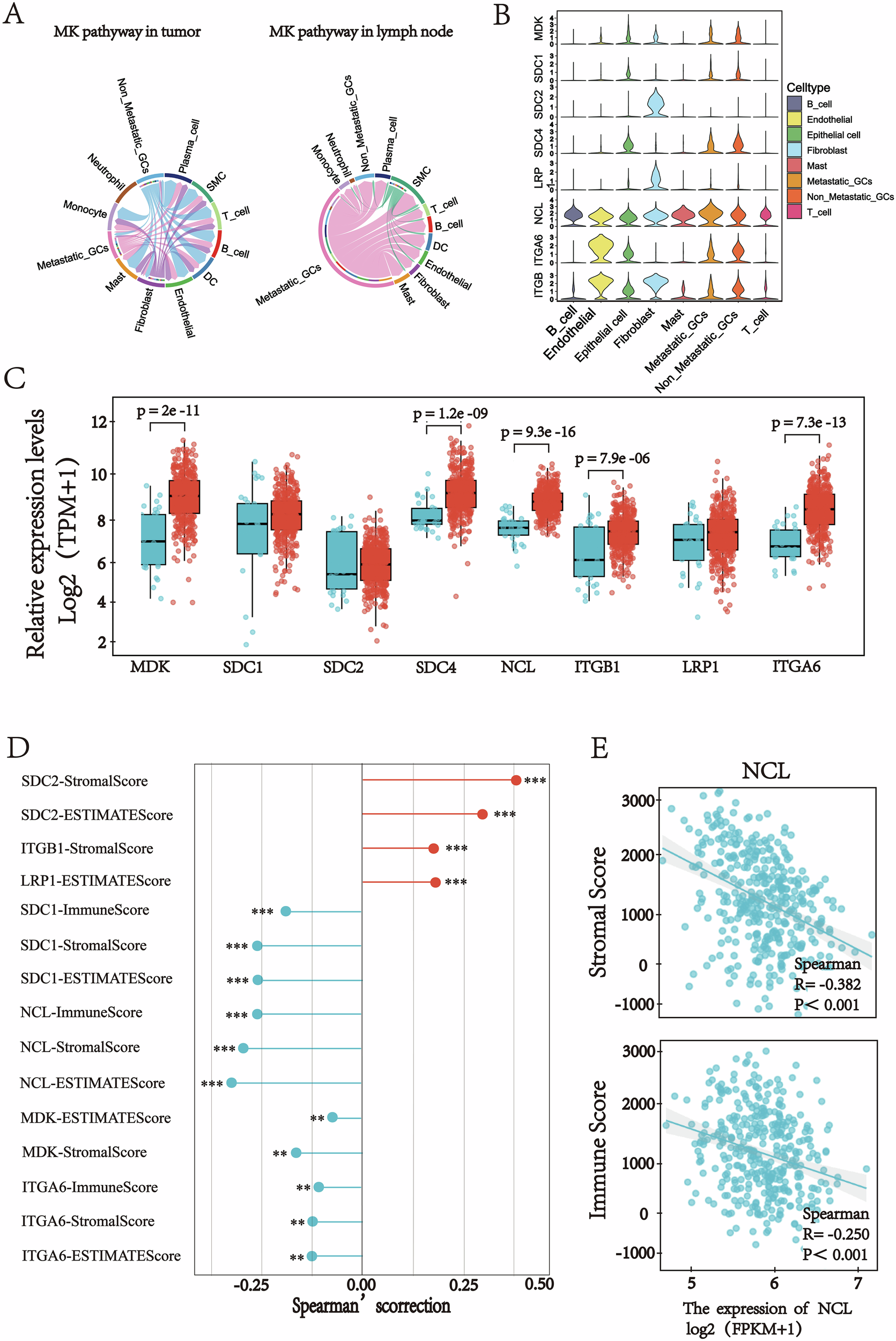

A The chord diagram illustrates the inferred intercellular communication network of the MK signaling pathway. B The violin plot displays the expression levels of the eight genes participating in the MK signaling network. C The box plot shows the expression levels of the eight genes in 375 gastric adenocarcinoma (GC) tissues and 32 normal gastric tissues. D The lollipop chart highlights the significant correlations between the eight genes and the scores estimated using the “estimate” package from TCGA data. E The scatter plot demonstrates the Spearman correlation between NCL and ImmuneScore or StromalScore.
