Fig. 3: Spatial atlas of TREM1+ Mφ, pyroptotic epithelial cells, and pathogenic Th17 cells in the inflammatory development of oral mucosal epithelium. | Cell Death Discovery

Fig. 3: Spatial atlas of TREM1+ Mφ, pyroptotic epithelial cells, and pathogenic Th17 cells in the inflammatory development of oral mucosal epithelium.

From: Epithelial pyroptosis-induced TREM1+ macrophages activate Th17 cells to accelerate oral mucosal inflammation

Fig. 3

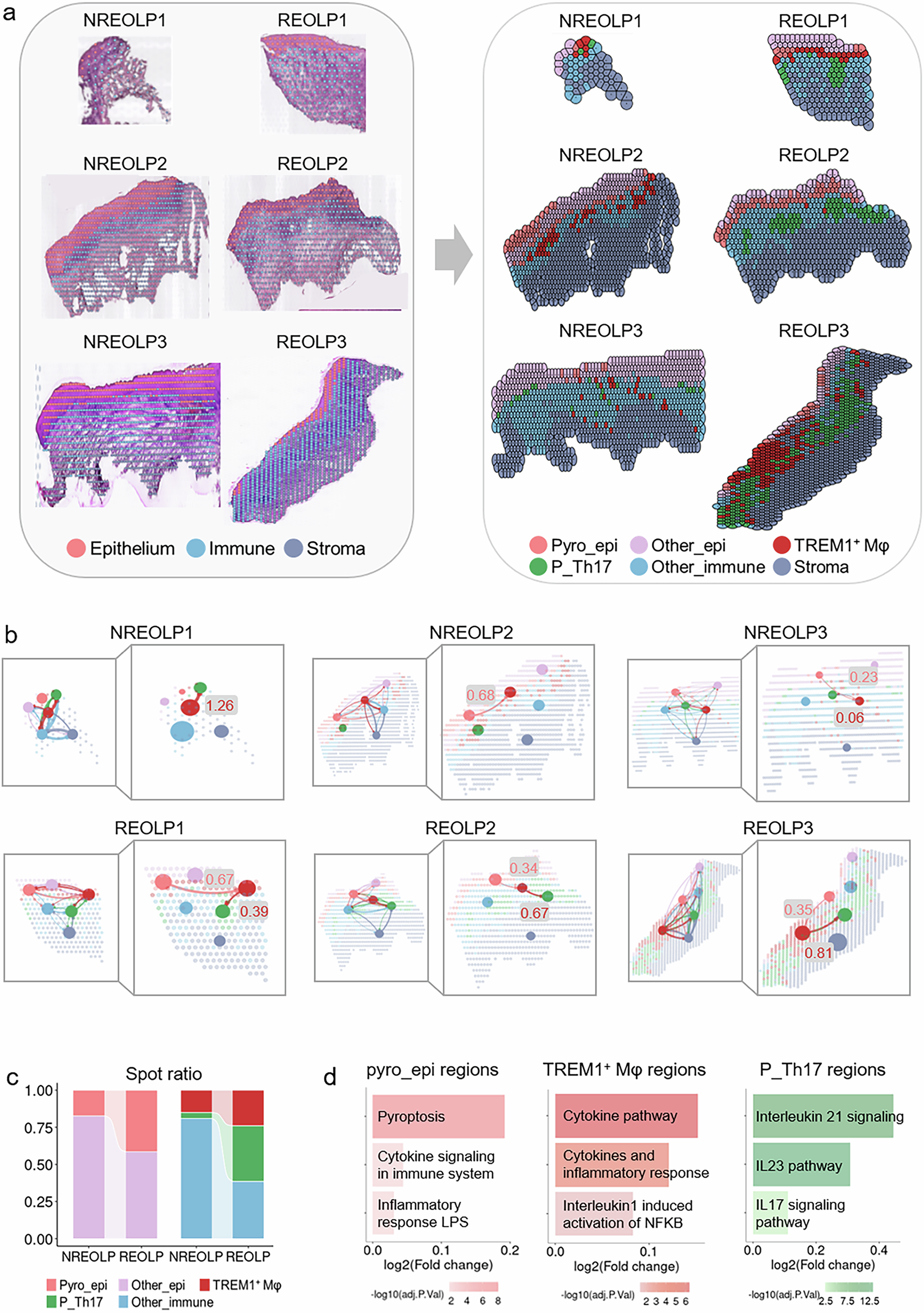

a Spatial scatter plot of tissue zones (left) and spatial distribution of cell types (right) in the inflammatory development of oral mucosal epithelium. b Spatial intercellular communication of different samples in the inflammatory development of oral mucosal epithelium. c Histogram showing the spot proportions of cell types in epithelial regions (left) and immune regions (right) during the inflammatory development of oral mucosal epithelium. d Barplots showing the upregulated signaling pathways of pyroptotic epithelial cell regions (left), TREM1+ Mφ regions (middle), and pathogenic Th17 cell regions (right) during the inflammatory development of oral mucosal epithelium.
