Fig. 6: MicroRNA let-7b is downregulated in colon cancer and upregulated by sulindac sulfide (SS) in colon cancer cells. | Cell Death Discovery

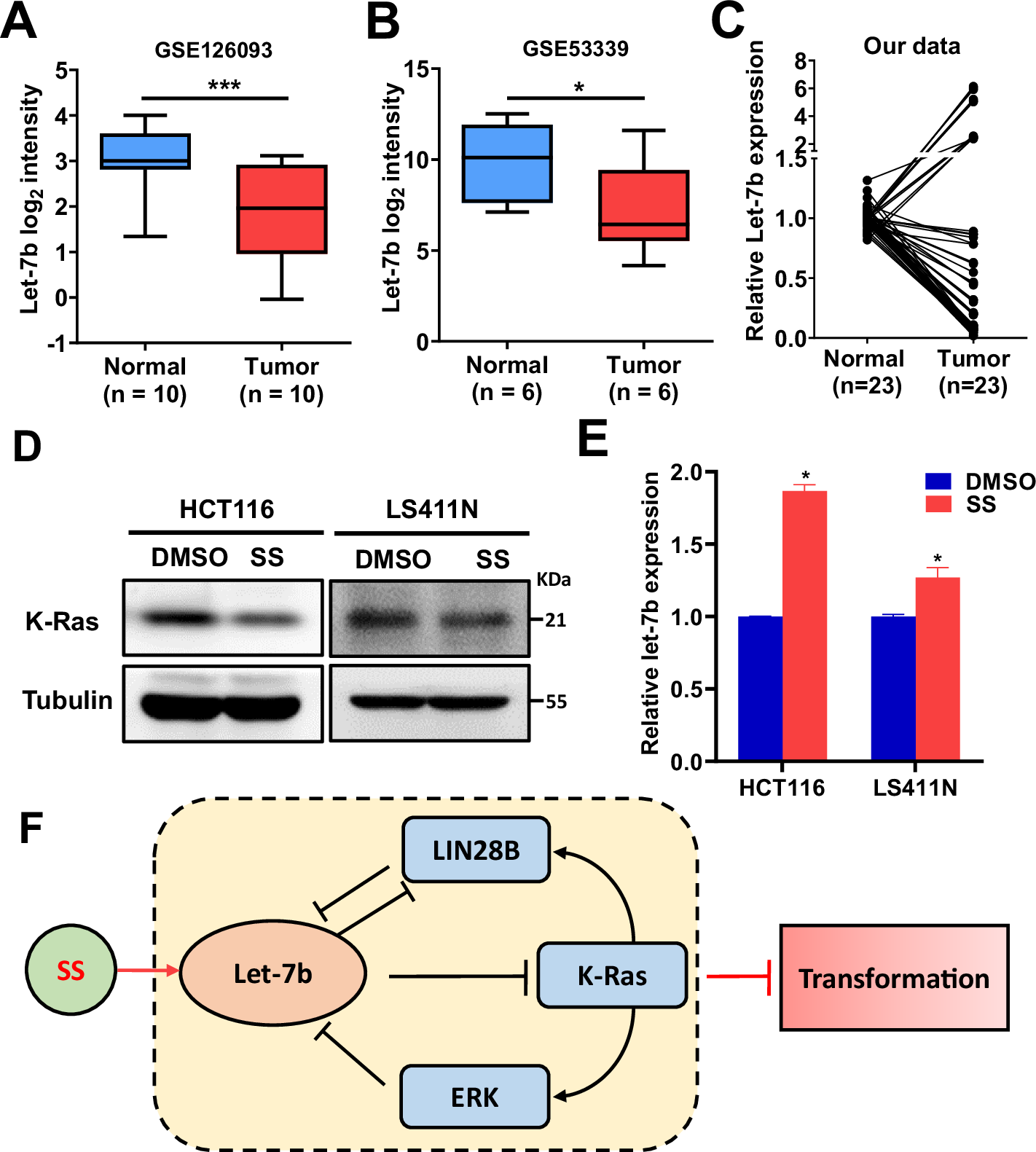

Fig. 6: MicroRNA let-7b is downregulated in colon cancer and upregulated by sulindac sulfide (SS) in colon cancer cells.

From: Sulindac sulfide suppresses oncogenic transformation through let-7b-mediated repression of K-Ras signaling

Fig. 6

Let-7b expression was analyzed in paired human colon cancer and adjacent normal tissues using GEO datasets GSE126093 (A, n = 10) and GSE53339 (B, n = 6), with differences assessed by chi-square tests. Boxplots depict the minimum, 25th percentile, median, 75th percentile, maximum, and outliers. C qRT-PCR analysis of let-7b expression in 23 paired colon cancer and matched normal tissues confirmed its downregulation. D Representative immunoblot images show reduced K-Ras expression in HCT116 (K-RAS-mutant) and LS411N (K-RAS-wildtype) cells following SS treatment. E qRT-PCR further demonstrated that SS upregulates let-7b expression in both cell lines. F A schematic model illustrates how SS inhibits tumor cell transformation by disrupting the let-7b/K-Ras/ERK/LIN28B feedback loop. Significance levels were annotated as follows: P < 0.05 (*), P < 0.01 (**), P < 0.001(***). Error bars represent mean ± s.d.
