Fig. 1: Altered mRNA splicing events in endometriosis. | Cell Death Discovery

Fig. 1: Altered mRNA splicing events in endometriosis.

From: Misregulated alternative splicing in endometriosis: a role for aberrant mRNA variants in endometriotic cell growth

Fig. 1: Altered mRNA splicing events in endometriosis.The alternative text for this image may have been generated using AI.

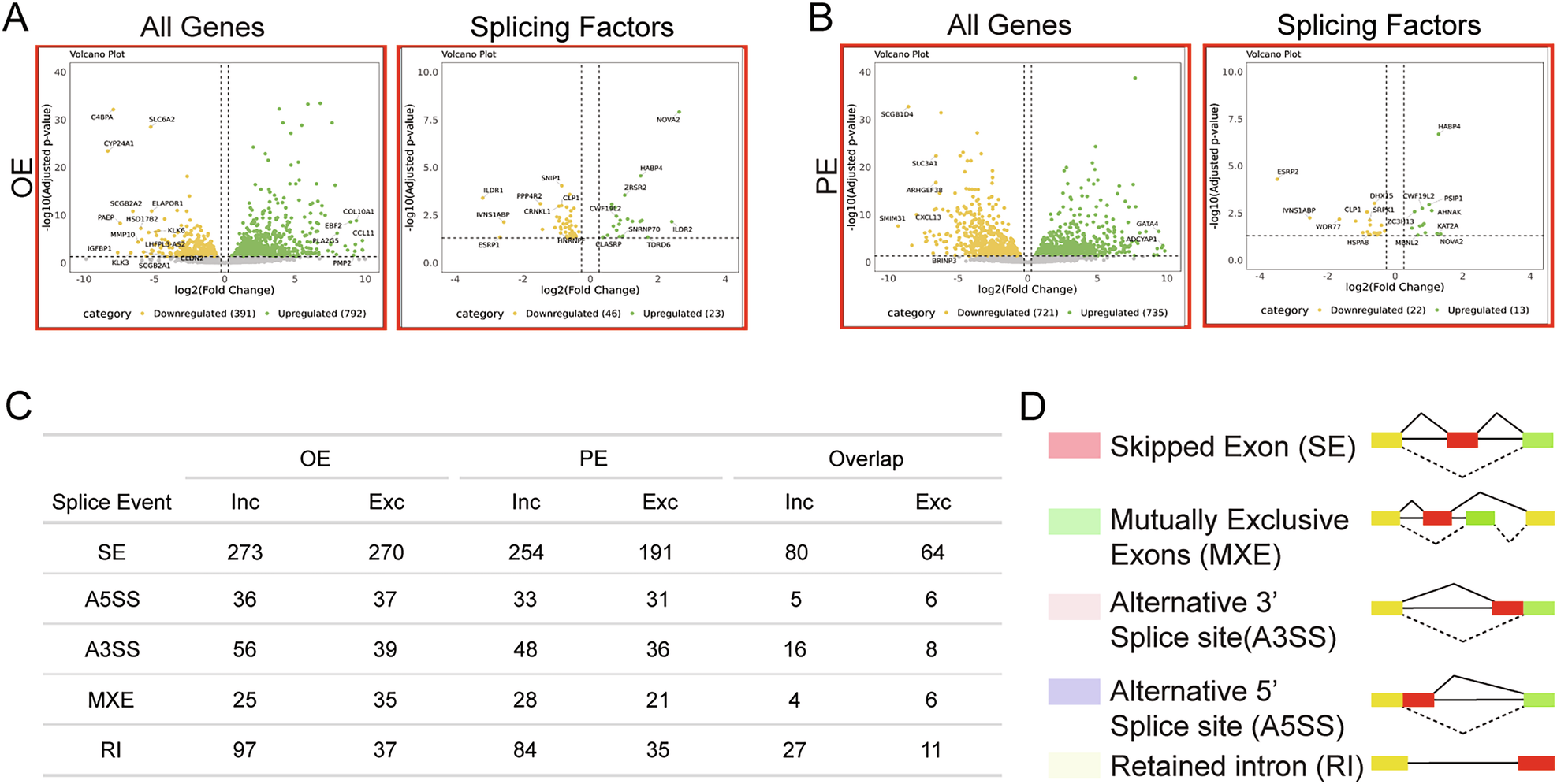

A Volcano plot of differentially expressed splicing factors in ovarian endometrium (OE). B Volcano plot of differentially expressed splicing factors in peritoneal endometrium. C Number of exclusion and inclusion splicing events relative to the five categories of AS evaluated by rMATS and caused by control (n = 2) vs Endometriosis ectopic patients (n = 3). The third column describes the size of the list of shared events across the two conditions. D Schematic representation of the total number of alternative splicing (AS) events identified in peritoneal (n = 3) and ovarian endometriotic lesions (n = 3) compared to control healthy endometrium (n = 3).
