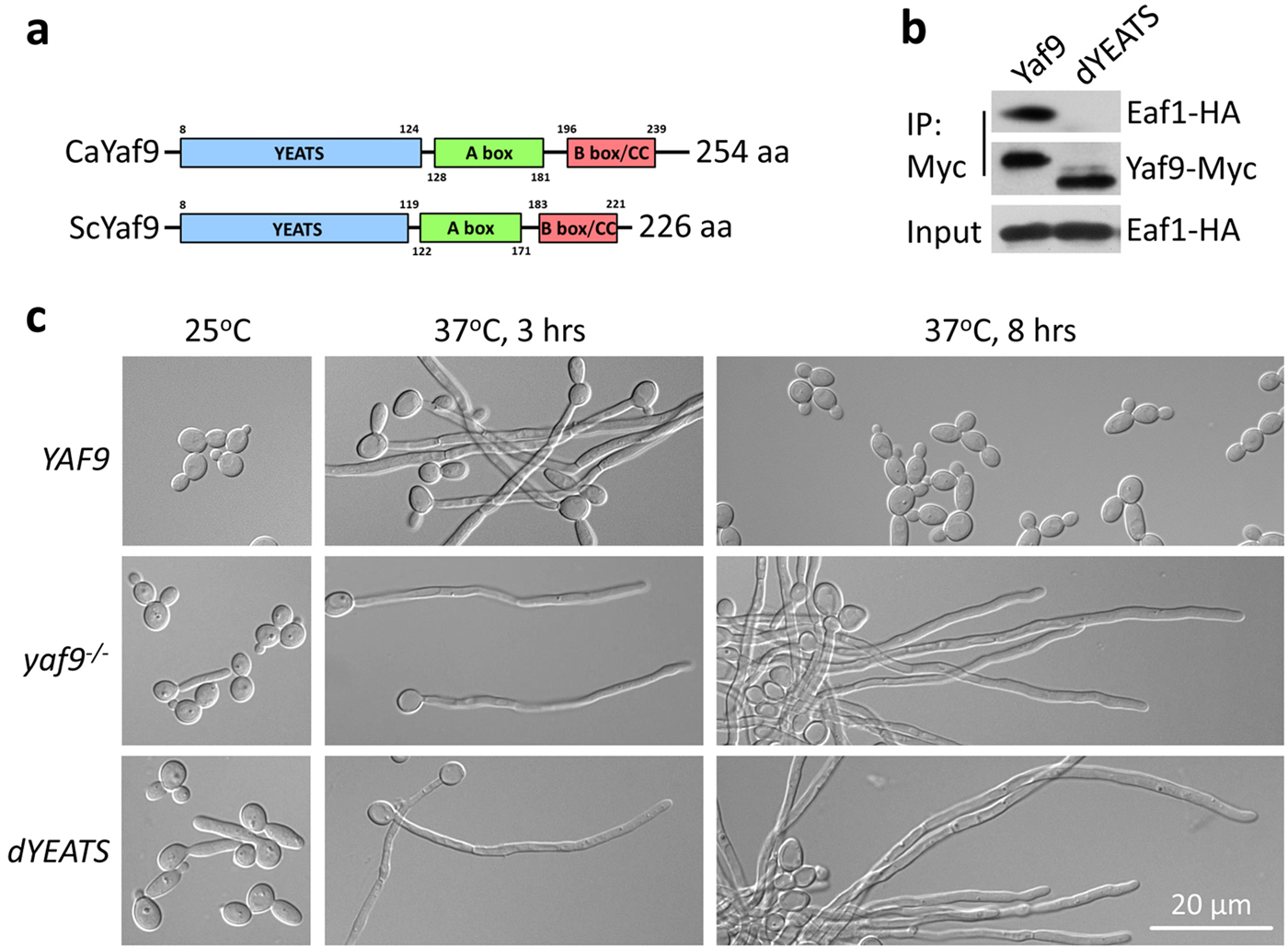

Fig. 3: Yaf9 YEATS domain is critical for Yaf9–Eaf1 interaction. | Cell Discovery

Fig. 3: Yaf9 YEATS domain is critical for Yaf9–Eaf1 interaction.

From: Merge and separation of NuA4 and SWR1 complexes control cell fate plasticity in Candida albicans

Fig. 3

a Schematic comparison of C. albicans Yaf9 (CaYaf9) and S. cerevisiae Yaf9 (ScYaf9). b Interaction between Eaf1 and Yaf9 or Yaf9 without YEATS domain. Yaf9-Myc or Yaf9 deleting YEATS domain (Yaf9 dYEATS-Myc) was co-expressed with Eaf1-HA in wild-type strain (BWP17). The cell culture in YPD at 25 °C for 12 h were collected for Co-IP. c Cell morphology of wild-type YAF9, yaf9 mutant, or yaf9dYEATS mutant. Cells were cultured in YPD at 25 °C for yeast growth or at 37 °C for hyphal elongation
