Fig. 6: Alteration of decidual immune responses in RPL patients. | Cell Discovery

Fig. 6: Alteration of decidual immune responses in RPL patients.

From: Single-cell profiling of the human decidual immune microenvironment in patients with recurrent pregnancy loss

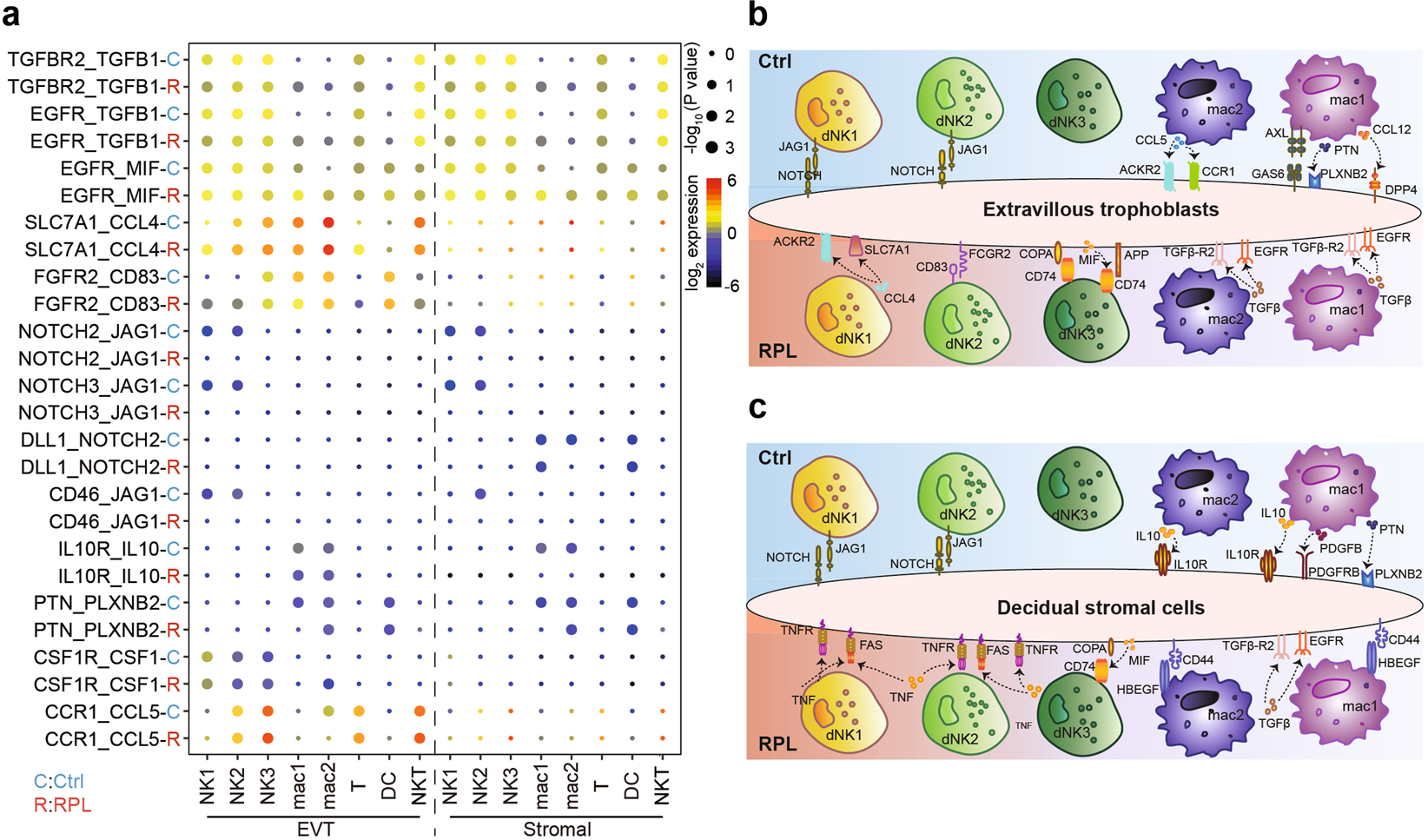

Fig. 6: Alteration of decidual immune responses in RPL patients.The alternative text for this image may have been generated using AI.

a Dot plot of predicted interactions of immune cells with EVTs and with stromal cells in the RPL patients and healthy controls. P values were indicated by circle size. The expression levels of all the interacted genes were indicated by colors, scales on the right. b, c Summary illustrations depicting the altered interactions of decidual immune cells with EVTs (b) and stromal cells (c) in healthy controls (up) and RPL patients (down).
