Fig. 6: Cell lineage and pseudotime prediction of the divergence of stromal and Theca-S lineages from a common progenitor population.

From: Dissecting the fate of Foxl2-expressing cells in fetal ovary using lineage tracing and single-cell transcriptomics

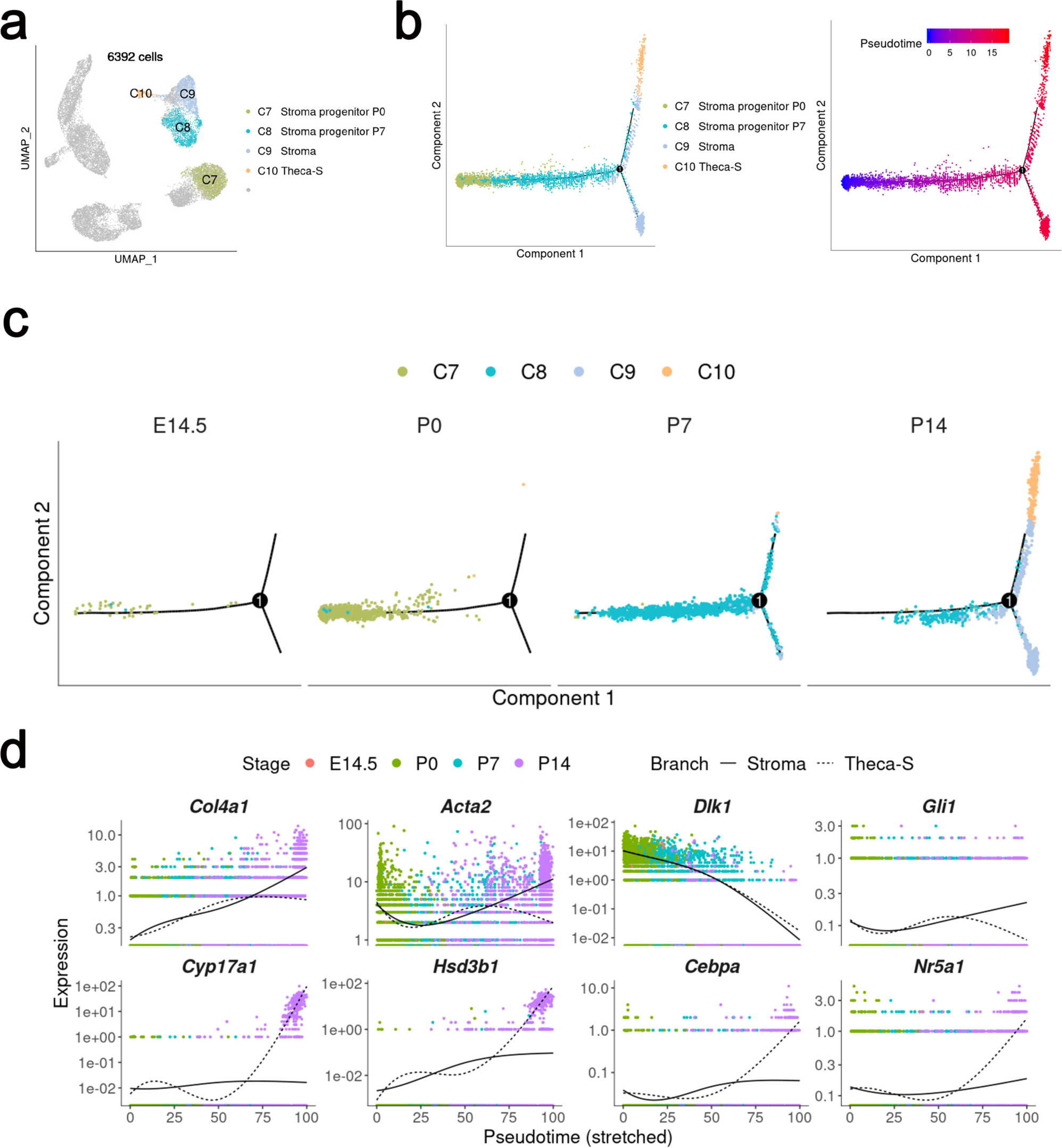

Fig. 6: Cell lineage and pseudotime prediction of the divergence of stromal and Theca-S lineages from a common progenitor population.The alternative text for this image may have been generated using AI.

a UMAP plot as shown in 3a, only the non-proliferating cells (C7–C10, 6392 cells) were used for the following pseudotime analysis. b Pseudotime ordering of cells shown in a, with cells colored by cell clusters (left) and pseudotime (right). Color of pseudotime from blue to red, represented the cell states from naïve to mature. c Pseudotime trajectory plot from b (left) was split by sampling time points, with cells colored by indicated cell clusters. d Pseudotemporal kinetics plots showed the highly expressed genes in stromal and Theca-S cells.
