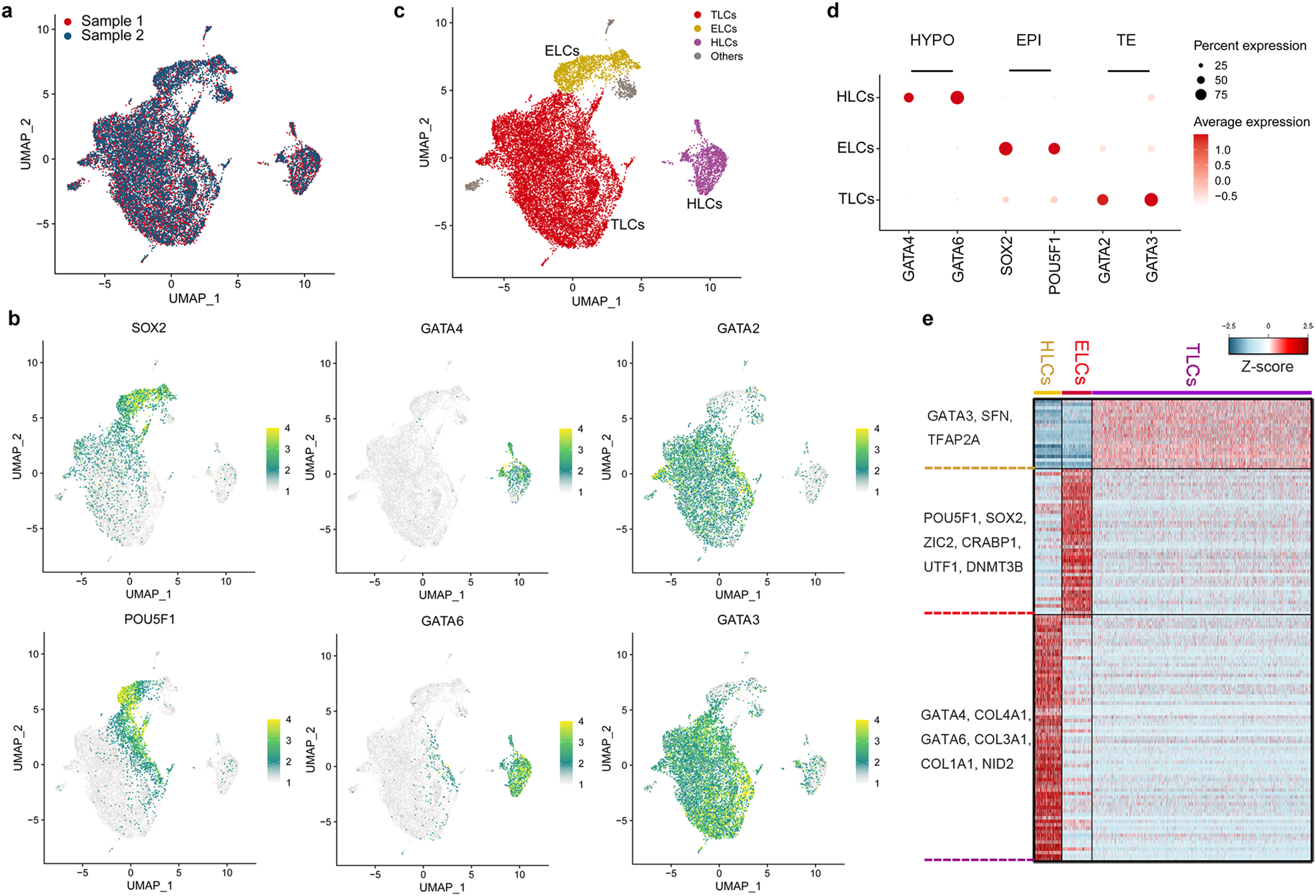

Fig. 3: Single-cell transcriptional profiling of porcine blastoids.
From: Pig blastocyst-like structure models from embryonic stem cells
a UMAP representation of two sample distributions for porcine blastoids. b UMAP showing expression of EPI markers (SOX2, POU5F1), HYPO markers (GATA4, GATA6), and TE markers (GATA2, GATA3). c Cells derived from porcine blastoids are colored by origin: ELCs (yellow), HLCs (purple), and TLCs (red). d Dot plot indicating EPI markers (SOX2, POU5F1), HYPO markers (GATA4, GATA6), and TE markers (GATA2, GATA3). e Heatmap representing the expression of cell lineage-specific genes in ELCs, HLCs, and TLCs.
