Fig. 1: Overall structure of the HSV-1 primosome UL5–UL52–UL8 complex bound to ssDNA and ADP. | Cell Discovery

Fig. 1: Overall structure of the HSV-1 primosome UL5–UL52–UL8 complex bound to ssDNA and ADP.

From: Structural and mechanistic insights into the herpes simplex virus type 1 helicase-primase primosome

Fig. 1

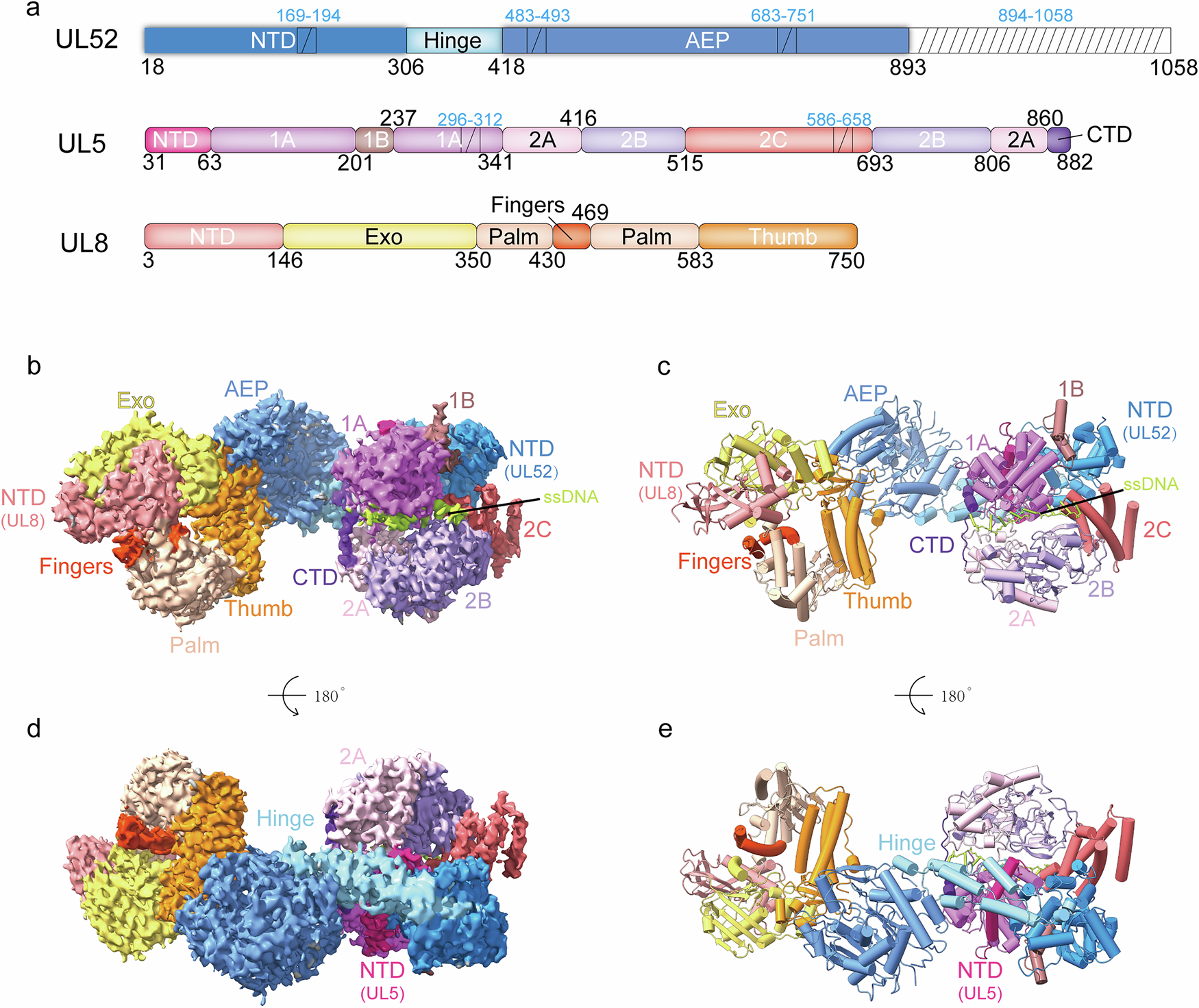

a Domain organization of UL52, UL5, and UL8. Domains are colored distinctly. ssDNA is shown in lime. This color scheme is consistent throughout the study. The diagonal regions indicate areas poorly resolved in the density map. b, d Cryo-EM density maps of the primosome complex bound to ssDNA and ADP, with the domains outlined. c, e Cartoon representations of the primosome complex bound to ssDNA and ADP.
