Fig. 2: Downregulation of GLO2 depends on the NF-κB signaling pathway. | Cell Research

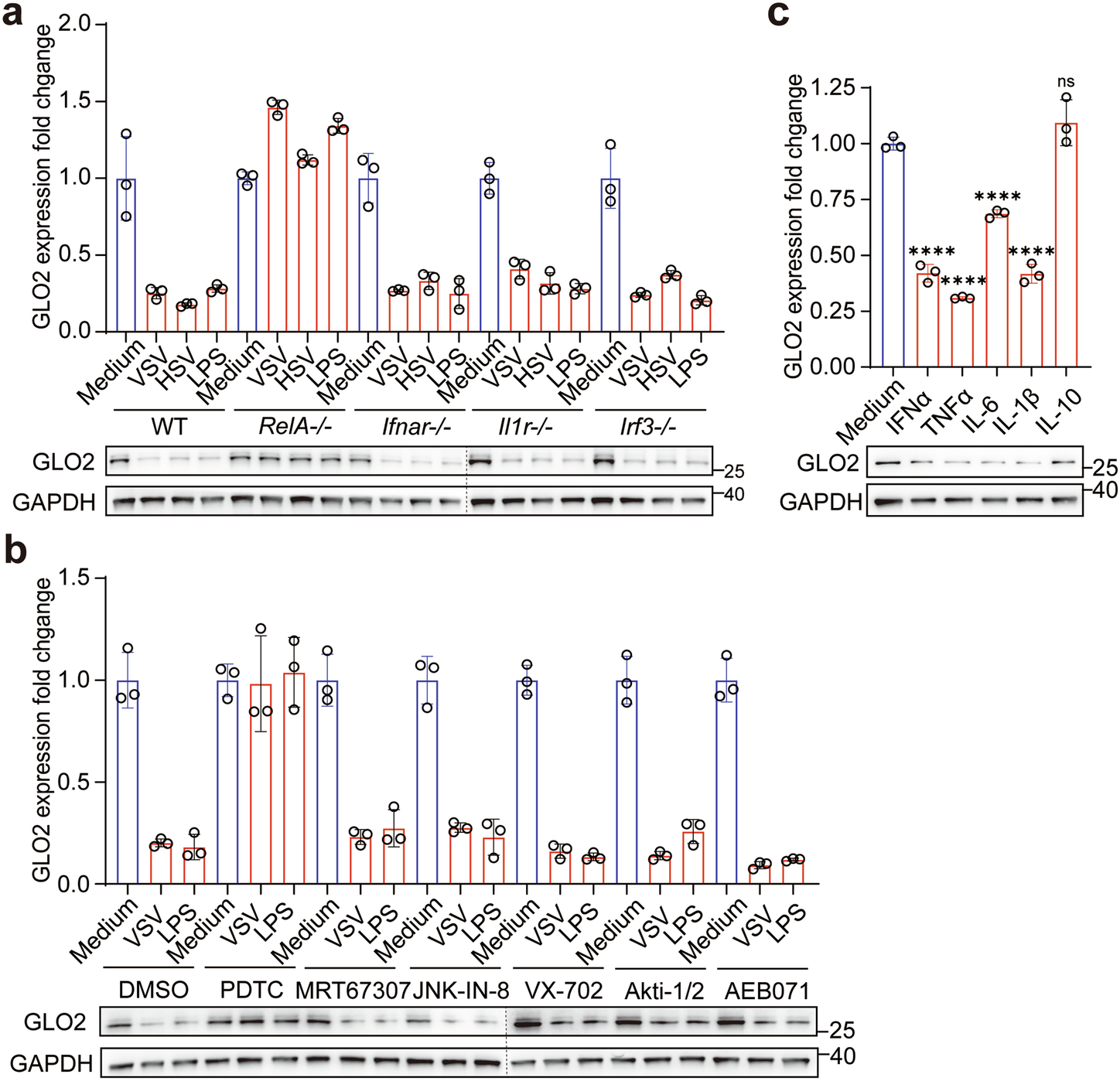

Fig. 2: Downregulation of GLO2 depends on the NF-κB signaling pathway.

From: Nonenzymatic lysine d-lactylation induced by glyoxalase II substrate SLG dampens inflammatory immune responses

Fig. 2

a Q-PCR and immunoblot analysis of indicated gene expression in WT or gene-knockout BMDMs stimulated as indicated. b Q-PCR and immunoblot analysis of indicated gene expression in BMDMs pretreated with indicated inhibitors for 1 h and then stimulated by VSV or LPS. c Q-PCR and immunoblot analysis of indicated gene expression in BMDMs stimulated by recombinant cytokines.
