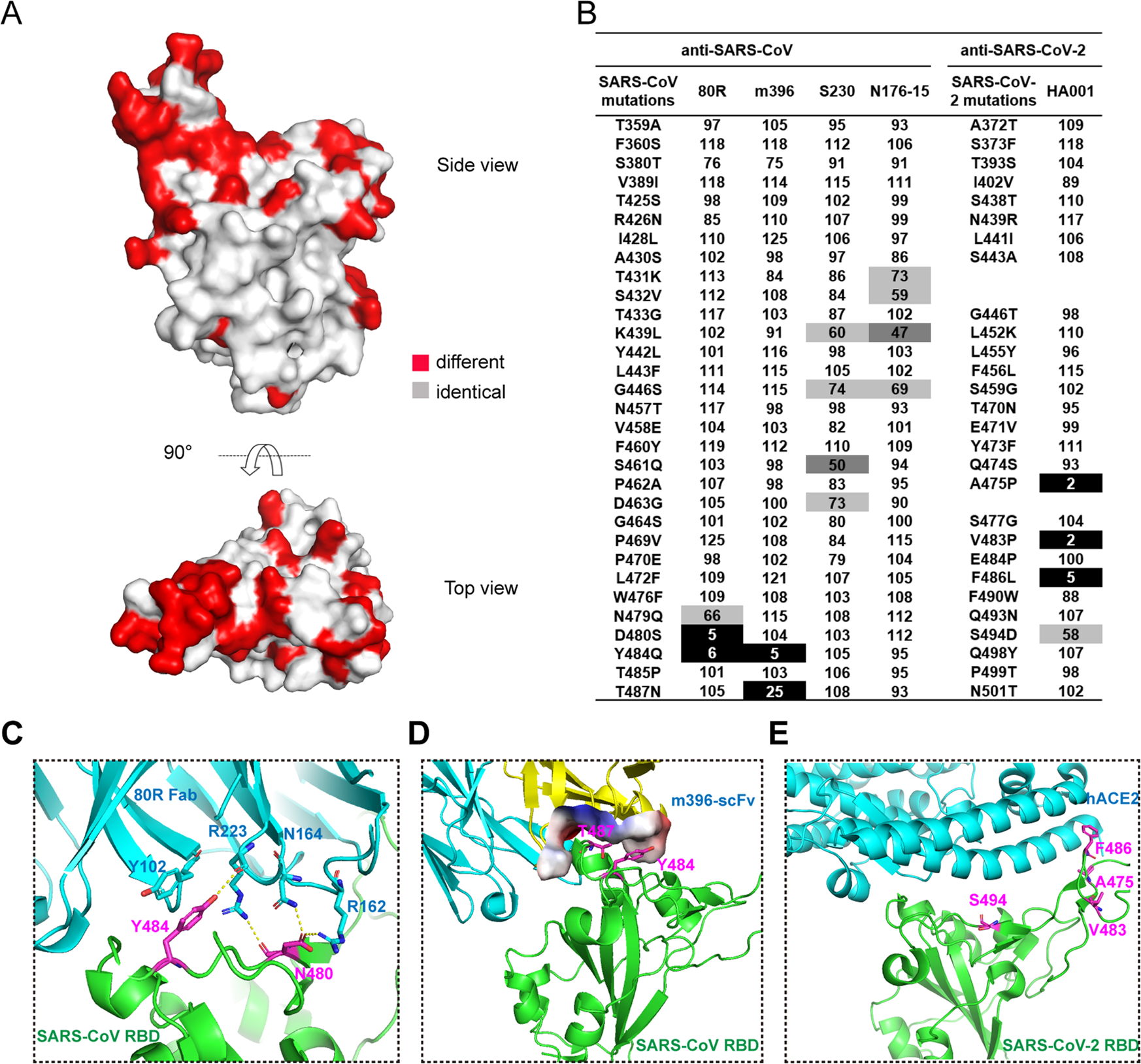

Recognition pattern of mAbs to single amino acid substitute mutants of SARS-CoV or SARS-CoV-2 RBD. a Sequence conservation in the SARS-CoV and SARS-CoV-2 RBDs in a surface representation. Red, different; grey, identical. b Site mutagenesis scanning. The SARS-CoV and SARS-CoV-2 RBD mutant panel includes the reported antibody epitope positions and sequence changes within the RBMs. Relative binding to the wild-type: 0–25% presented in black; 25–50%, presented in dark grey; 50–75% presented in light grey; >75%, presented in white. The results shown represent the mean percentage of binding signal for the mAbs bound to the mutants relative to that of the wild-type RBD in at least two independent experiments. c Interaction of Y484 and D480 in the SARS-CoV RBD with 80 R (PDB ID: 2ghw). Polar interactions are indicated by yellow dashed lines. d Interaction of Y484 and T487 in the SARS-CoV RBD with m396 (PDB ID: 2dd8). Yellow: heavy chain, cyan: light chain. The binding surface of m396 is shown by electrostatic surface representations. e The residues that are important for HA001 binding are on the interface of the ACE2 and RBD (PDB ID: 6VW1)
