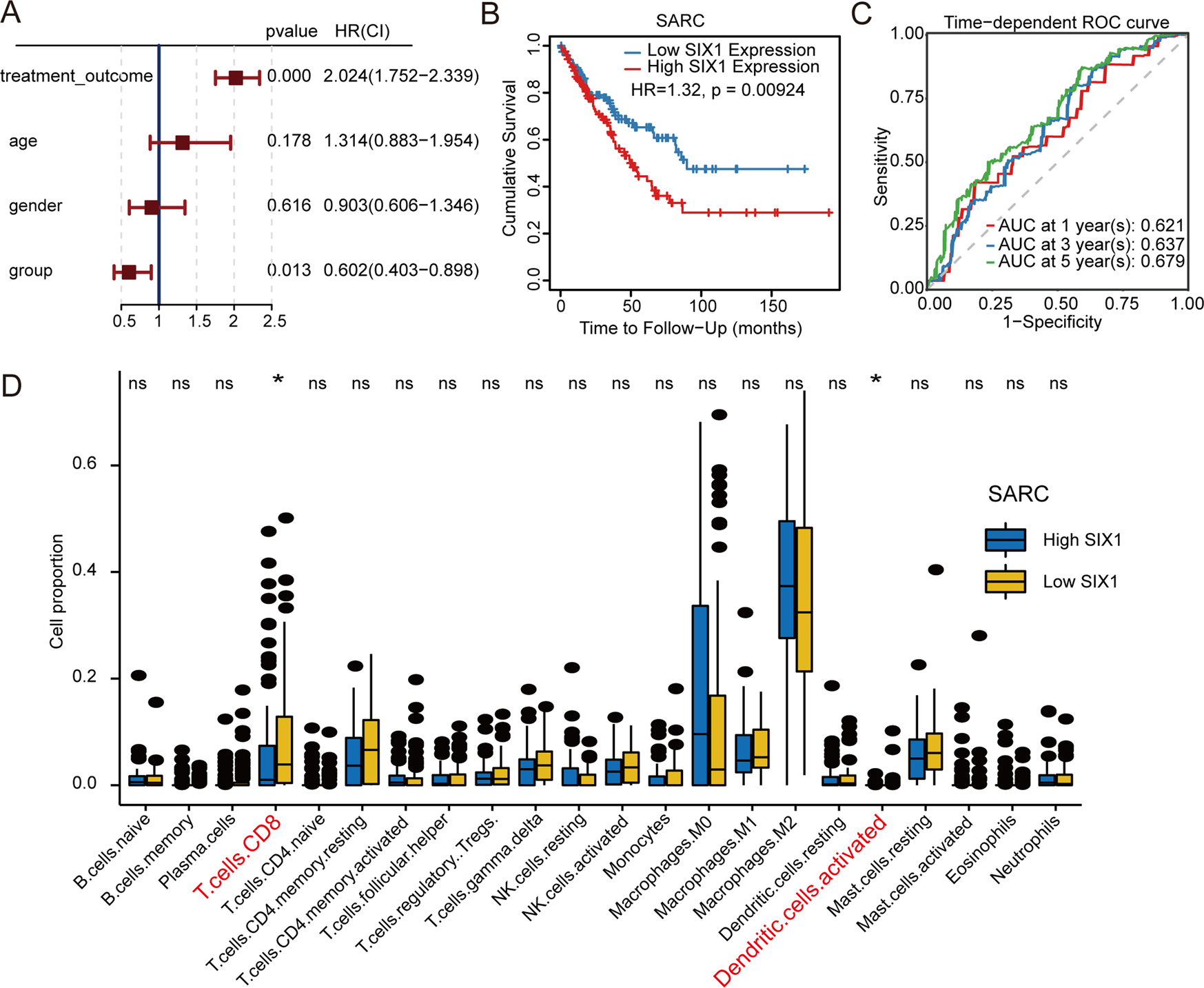

Fig. 1
From: Homeoprotein SIX1 compromises antitumor immunity through TGF-β-mediated regulation of collagens
High expression of Six1 negatively correlates with immune cell infiltration in the TME and patient survival rates. A Prognostic value of the risk scores in univariate Cox regression models. B The clinical relevance of gene expression across SARC from the Gene_Outcome of Exploration module in TIMER2.0. Gene_Surv used a Cox proportional hazard model to evaluate the outcome significance of Six1 expression. C Time-dependent ROC curves for survival prediction with AUC values. D Comparison of the proportion of TICs between the high and low Six1 expression groups of SARC samples calculated by CIBERSORT. Boxplots display the proportions of 22 immune cells
