Fig. 7: In vivo evaluation of PDA/PCL fibrous membranes.

From: Bioinspired and osteopromotive polydopamine nanoparticle-incorporated fibrous membranes for robust bone regeneration

Fig. 7

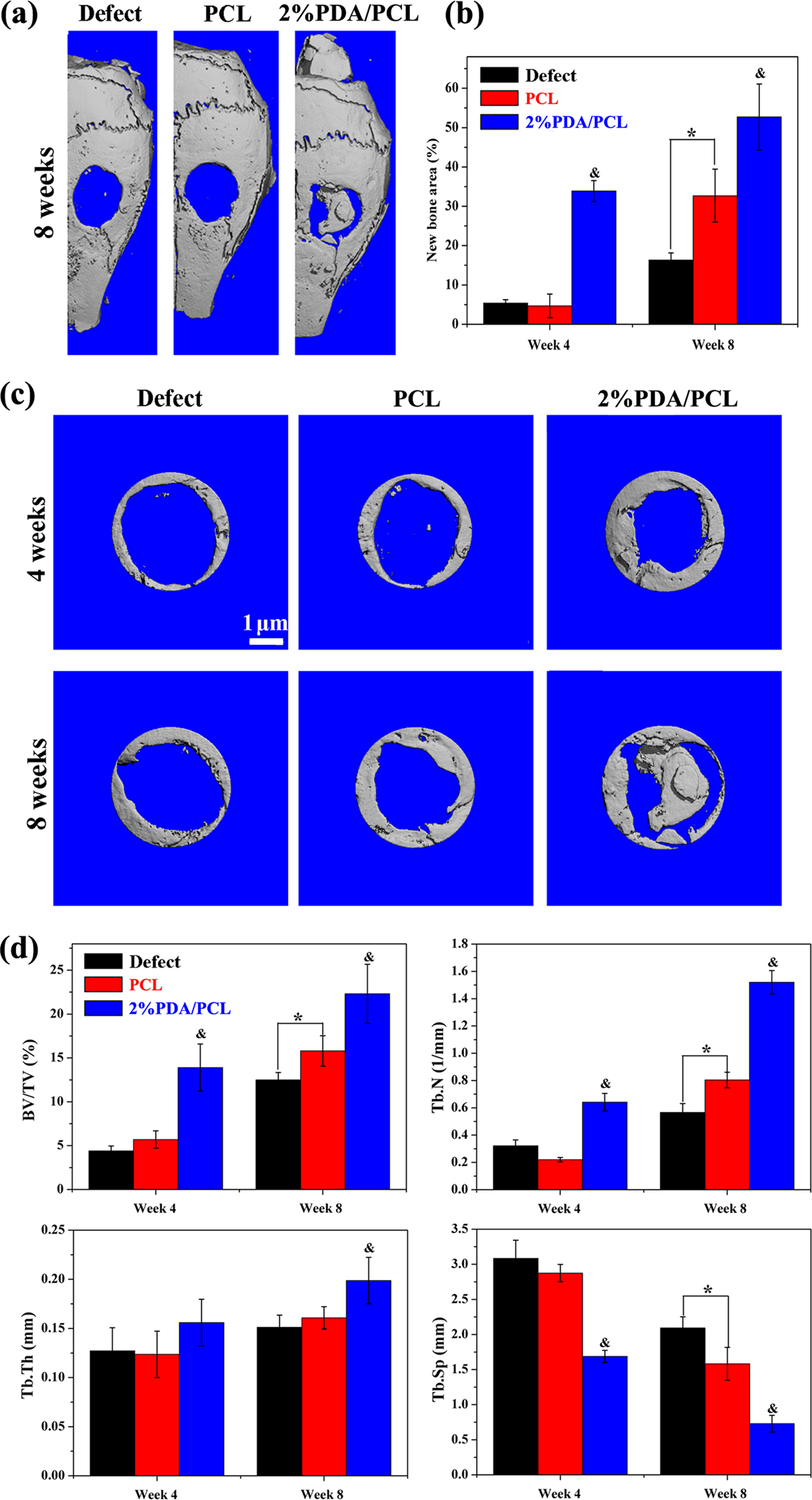

a Reconstructed 3D micro-CT images of whole skulls after surgery at 8 weeks. b Quantification of new bone areas at 4 and 8 weeks. c Micro-CT images of the defects and d bone histomorphometry of membrane implants analyzed from the micro-CT data after 4 and 8 weeks. * represents p < 0.05 between groups, and & represents p < 0.05 compared with other groups
