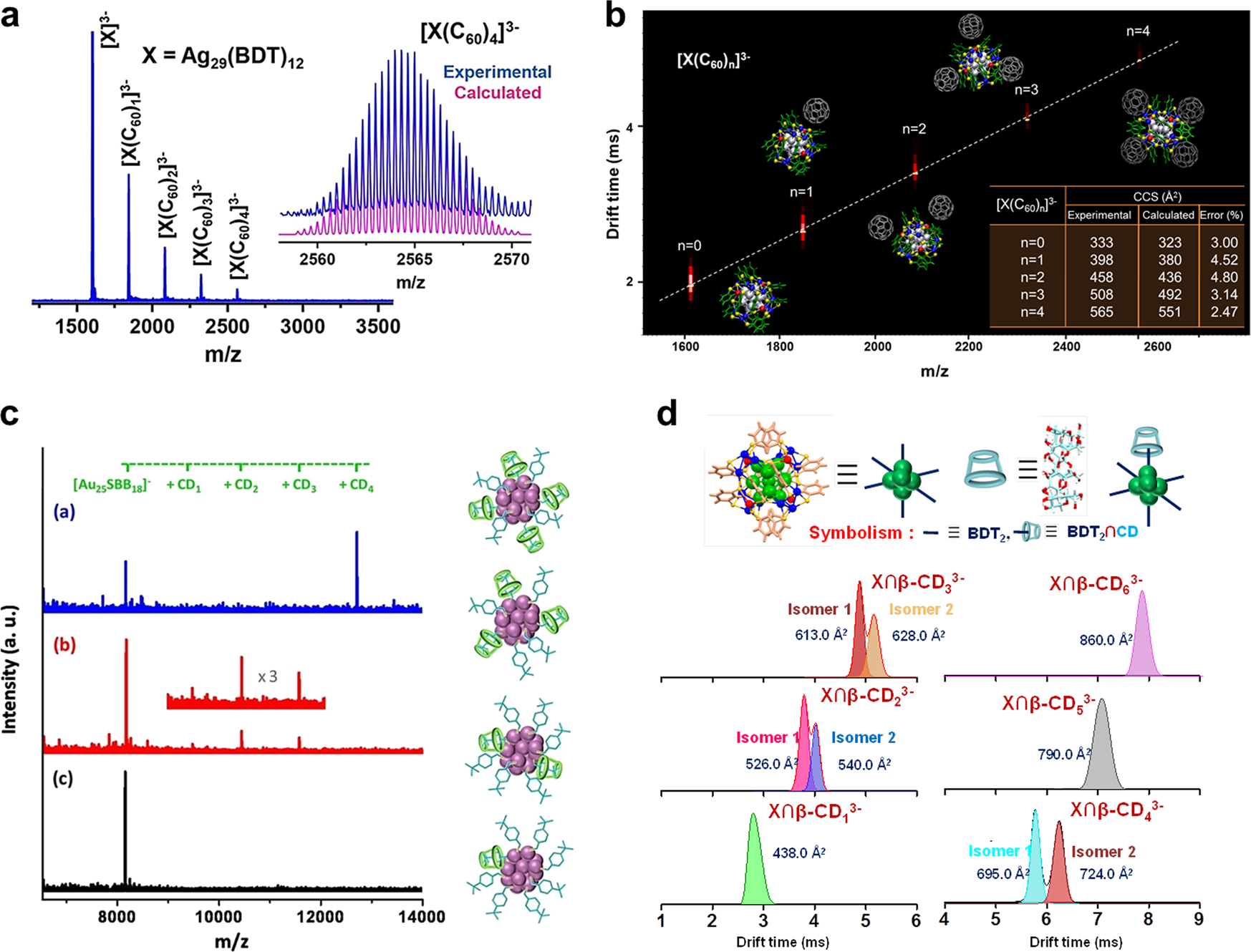

Fig. 15: Supramolecular chemistry of monolayer-protected noble metal clusters.
From: The emerging interface of mass spectrometry with materials
a ESI MS of [Ag29(BDT)12(C60)n]3− (n = 1–4) adducts. b IM-MS studies on [Ag29(BDT)12(C60)n]3− (n = 1–4) showing the comparison of the experimental CCS values with the CCS values calculated for the lowest energy DFT-optimized structures113. (Copyright© 2018 American Chemical Society) c ESI MS of the inclusion complexes of CD with Au25(SBB)18 cluster, [Au25(SBB)18 ∩ CDn]− (n = 1–4). Schematic structures of the species are also presented114. (Copyright© 2014 American Chemical Society) d IM-MS studies showing the separation of isomers in [Ag29(BDT)12 ∩ CDn]3− (n = 1–6) adducts115. (Copyright© 2018 American Chemical Society)
