From: A new quasi-one-dimensional compound Ba3TiTe5 and superconductivity induced by pressure

Fig. 3

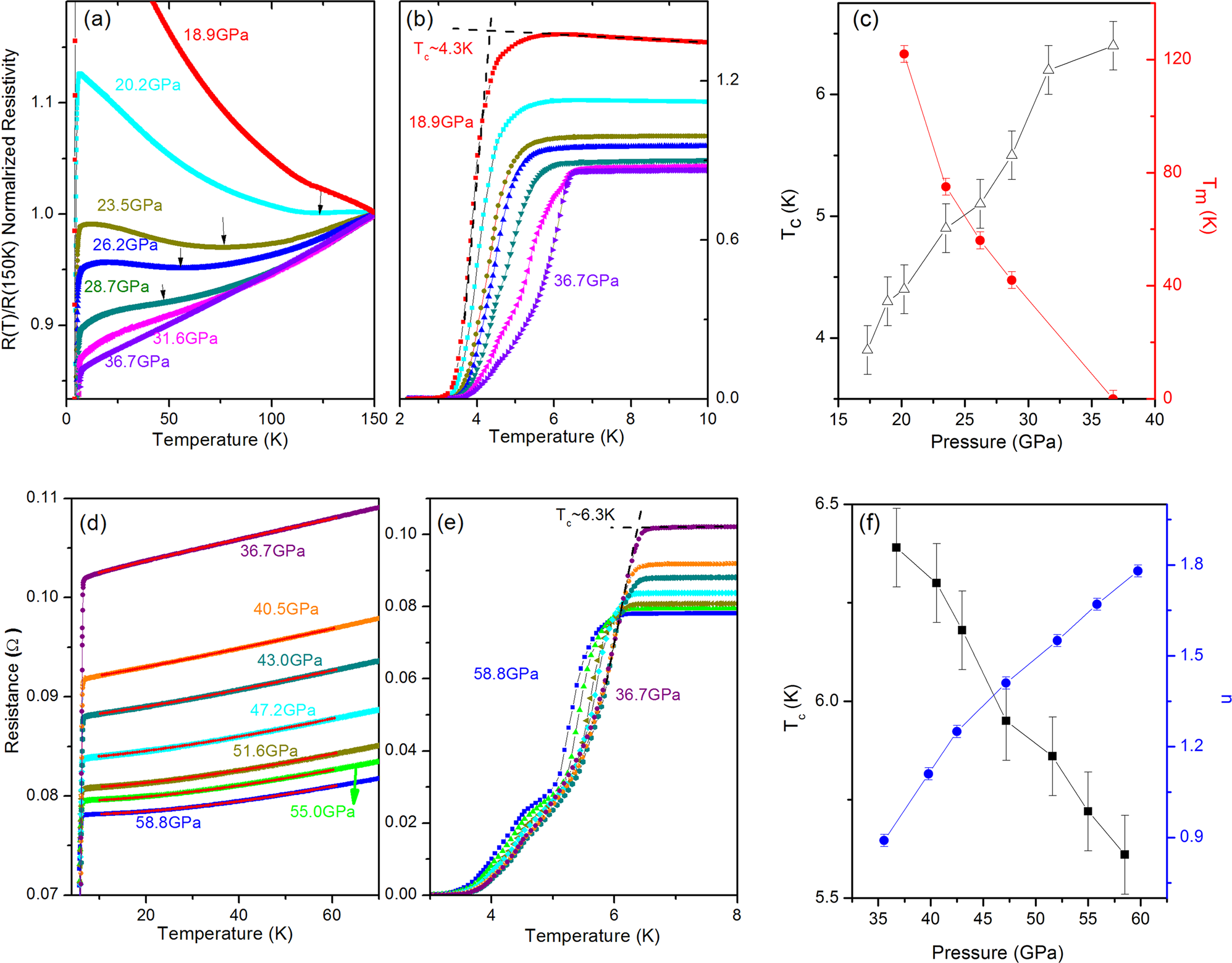

The resistance curve for Ba3TiTe5, with an enlarged view of the pressure region from 18.9 to 36.7 GPa shown in (a, b) and from 36.7 to 58.8 GPa in (d, e). c The pressure dependence of the superconducting temperature Tc and the MSC temperature Tm in the range of 18.9–36.7 GPa. f The pressure dependence of the superconducting temperature Tc and the exponent n in the range of 36.7–58.8 GPa
