Fig. 4
From: A new quasi-one-dimensional compound Ba3TiTe5 and superconductivity induced by pressure

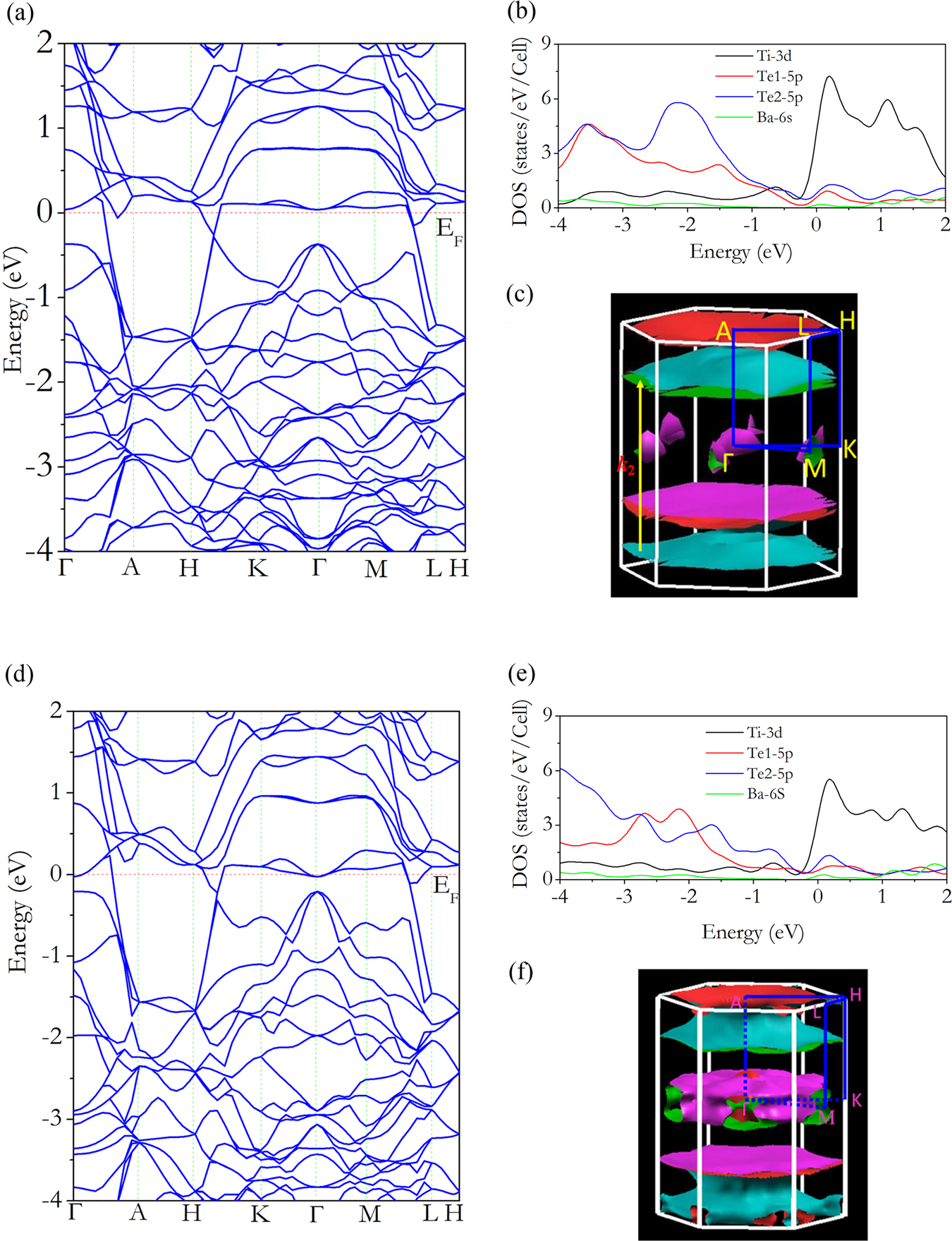

a–c The calculated band structure, PDOS and Fermi surface for Ba3TiTe5 under 19.5 GPa, respectively. d–f The same as (a–c) under 42.2 GPa
Fig. 4 | NPG Asia Materials
