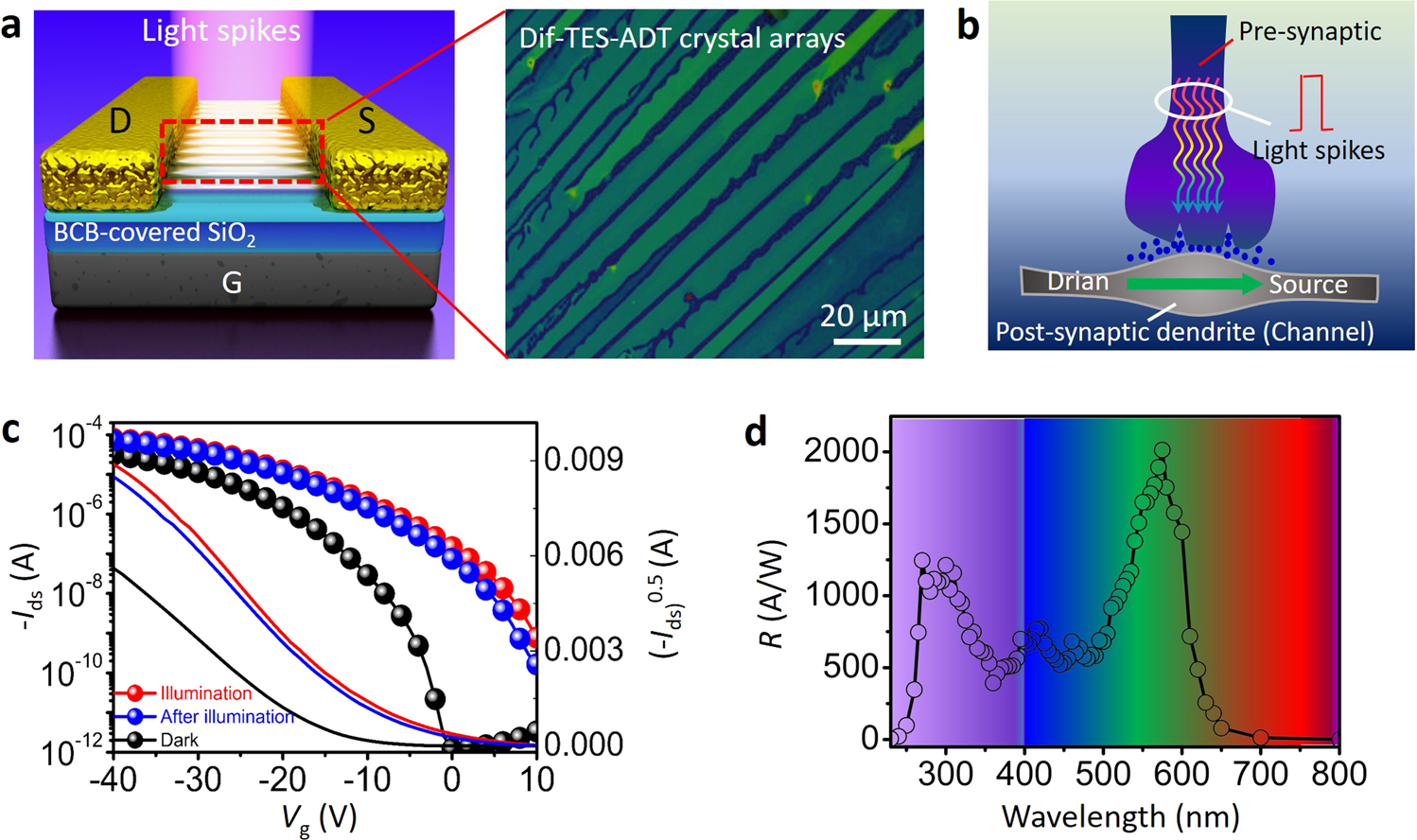

Fig. 2: Performance of the photosynaptic device.
From: Organic molecular crystal-based photosynaptic devices for an artificial visual-perception system
a Schematic illustration of the organic photosynaptic device based on an OMC array (left) and cross-polarized optical micrograph of the Dif-TES-ADT crystal array. b Simple schematic of an artificial photosynapse emulating a biological synapse. c Typical transfer characteristics of a photosynaptic device acquired in the dark, under 550 nm light irradiation (10 μW cm−2), and after light irradiation. d R as a function of light wavelength at a low Vg of 5 V.
