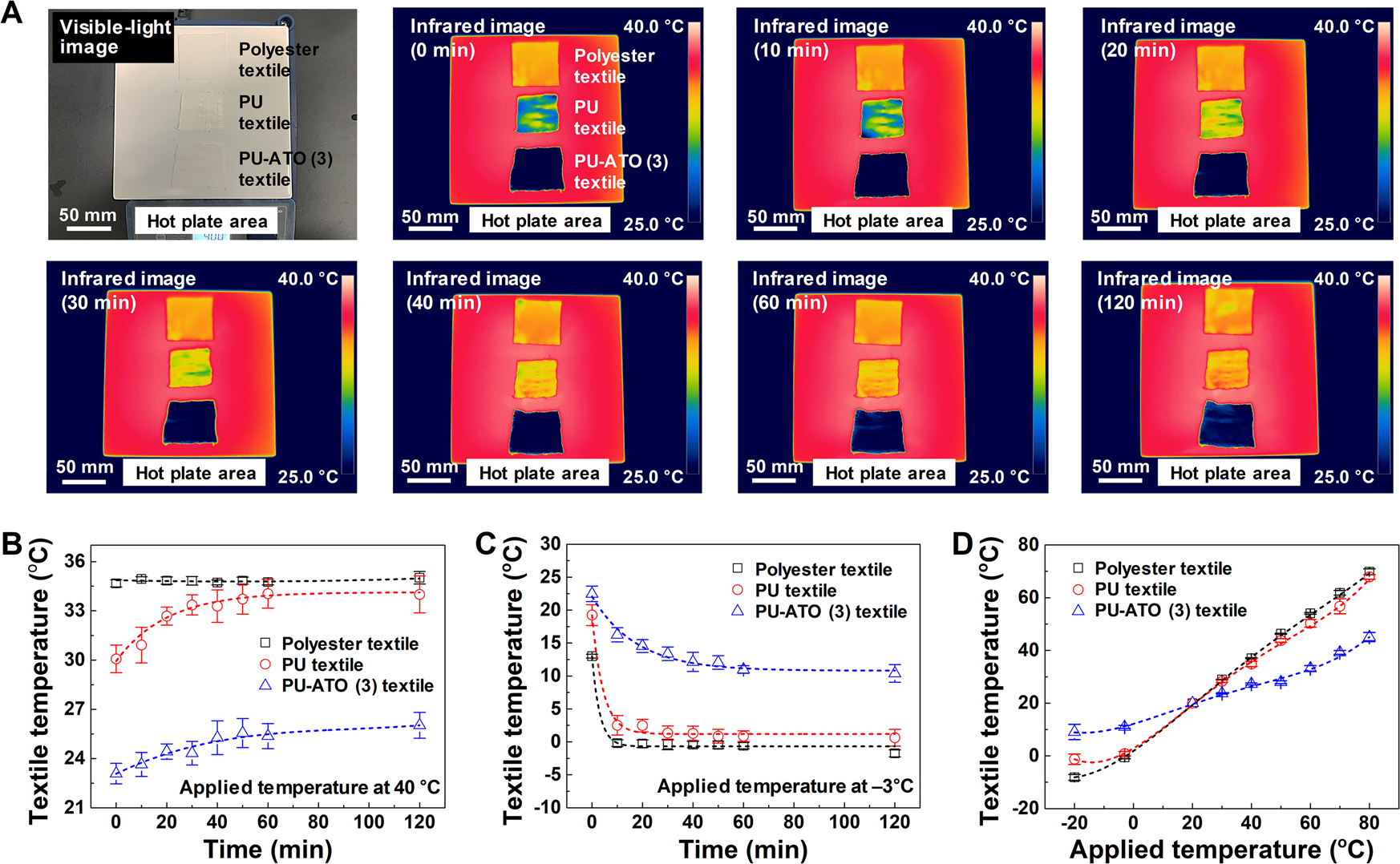

Fig. 4: Verification of the IR- and thermal radiation-shielding properties of the composite PU–ATO (3) textiles.
From: Development of a wearable infrared shield based on a polyurethane–antimony tin oxide composite fiber
a Visible-light images of polyester, PU, and PU–ATO (3) composite textiles placed on a hot plate heated to 40 °C and IR images over time up to 120 min. Trends in the temperature change of polyester, PU, and PU–ATO (3) composite textiles over time with the applied temperature condition of (b) 40 °C and (c) −3 °C. d The temperatures of the polyester, PU, and PU–ATO (3) composite textiles were measured after 60 min under different applied temperature conditions (from −20 to 80 °C).
