Fig. 6: In vivo quantitative analysis of angiogensis by LDPI. | NPG Asia Materials

Fig. 6: In vivo quantitative analysis of angiogensis by LDPI.

From: Self-assembled dodecyl group-modified gelatin microparticle-based hydrogels with angiogenic properties

Fig. 6: In vivo quantitative analysis of angiogensis by LDPI.

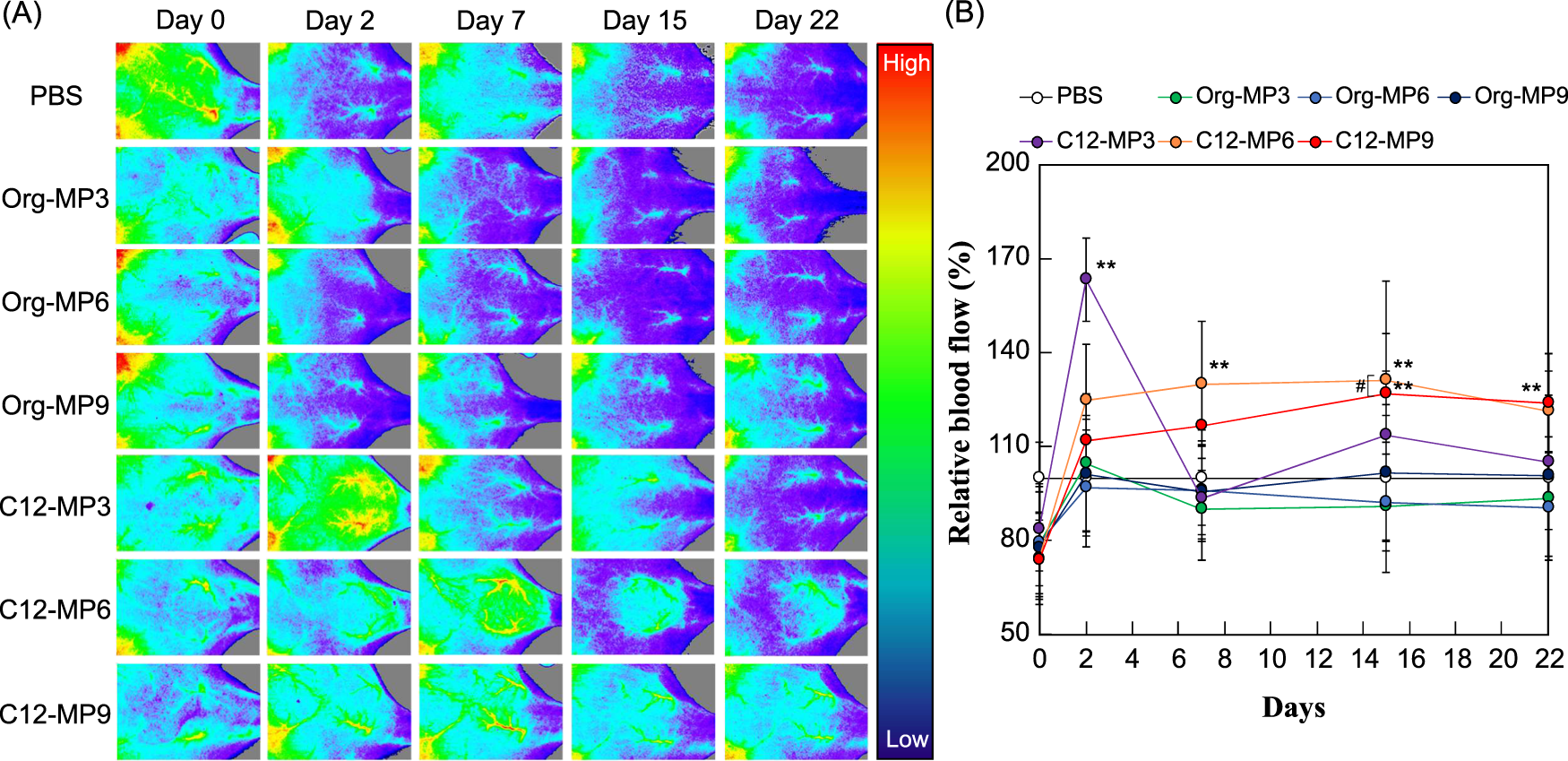

a Laser Doppler perfusion images of mouse backs after implantation of the Org- and C12-MP hydrogels. The image hues indicate the intensity of the blood perfusion: red and blue indicate higher and lower perfusion, respectively. b Quantification of the blood flow from the LDPI images up to 22 days. The blood flow of the PBS-injected mice each day was defined as 100%. * and ** indicate significant differences (*p < 0.05 and **p < 0.01, respectively). No symbol or # indicates no significant difference (#p > 0.05).
