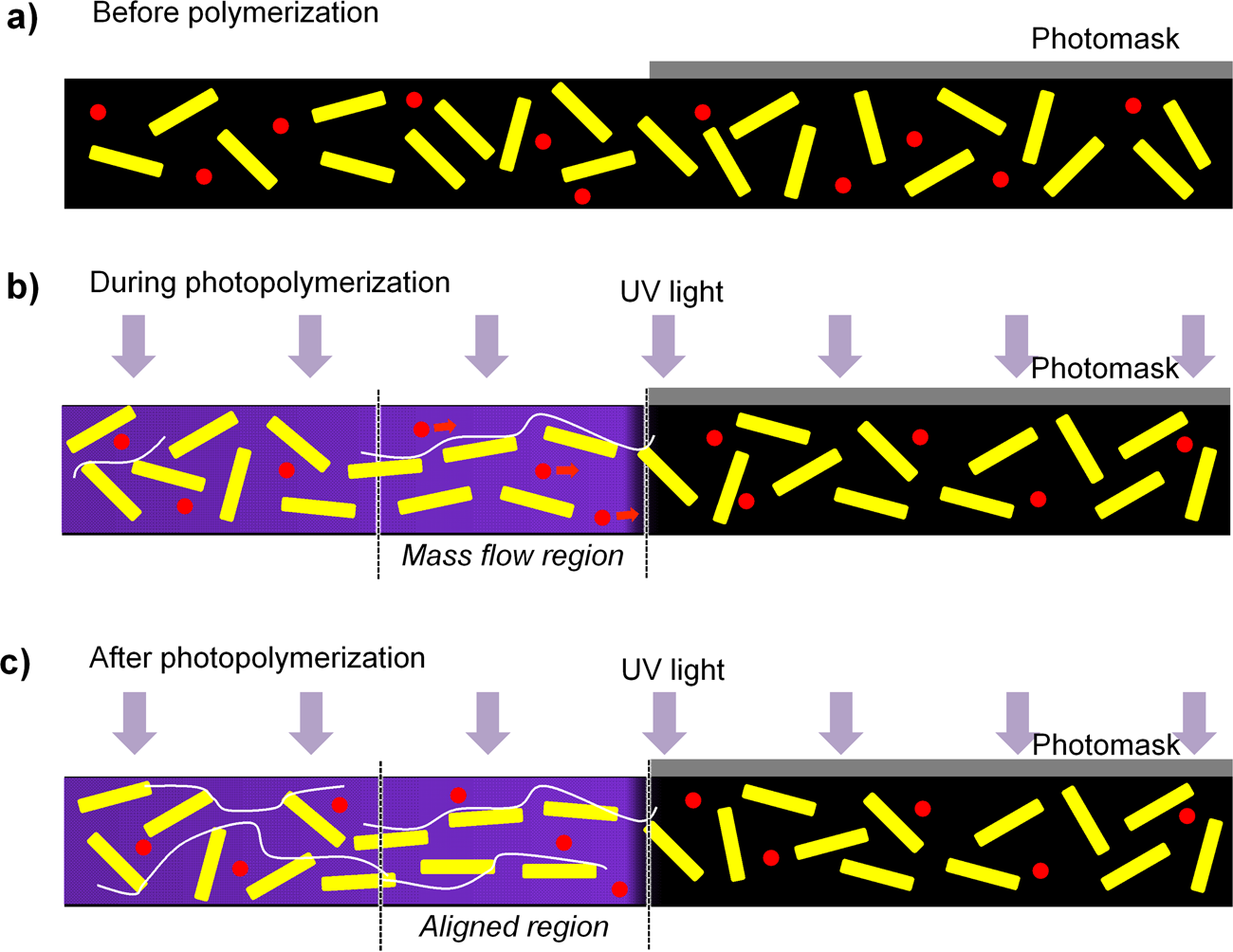

Fig. 4: Schematic illustration of the mechanism of molecular alignment during photopolymerization near a photomask.

a Before photopolymerization; b during photopolymerization; c after photopolymerization. Yellow rods, red dots, and white lines indicate mesogenic side-chain units, quantum dots, and polymer main chains, respectively.
