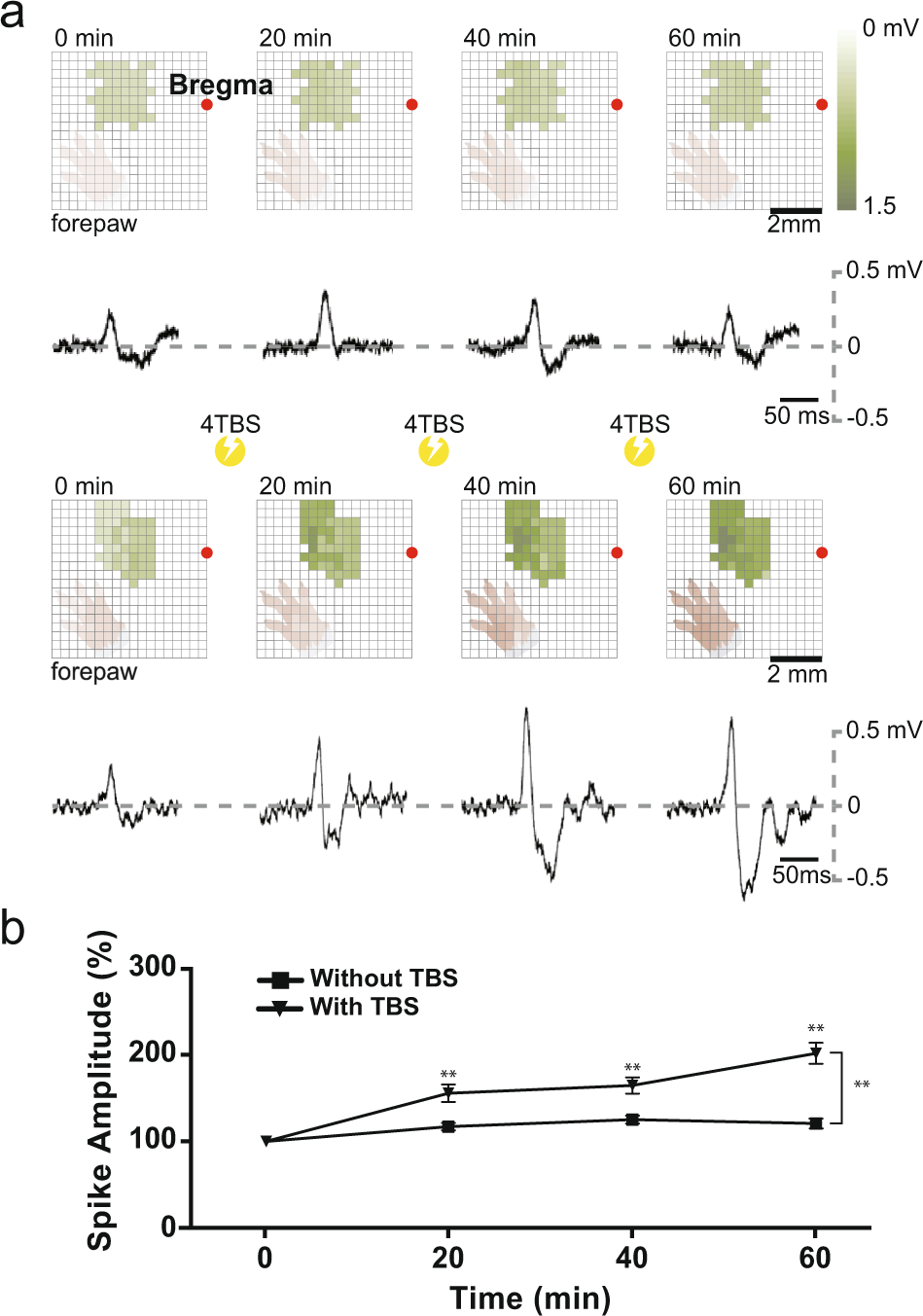

Fig. 5: Response enhancement via graphene-based surface stimulation.
From: Graphene-electrode array for brain map remodeling of the cortical surface
a In the somatosensory cortex, local field potential responses to sensory stimuli were monitored before and after TBS. The amplitude of neural responses was significantly enhanced when forepaw stimulation was paired with TBS, whereas response amplitudes without TBS remained uniform over time. b Response amplitude resulting from forepaw stimulation was significantly enhanced up to 60 min following successive TBSs, whereas response amplitudes without TBS remained constant. Data are presented as the mean ± standard error (SEM); **p < 0.01.
